Simplified installation, effective cooling, and adaptable configurations to satisfy the demands of modern servers.
AIC has unveiled a new series of 2U storage chassis designed to provide versatile solutions for modern server needs. The ES1 chassis can support various motherboard sizes, including EATX+ formats, with dimensions extending up to 12.8 x 14 inches.

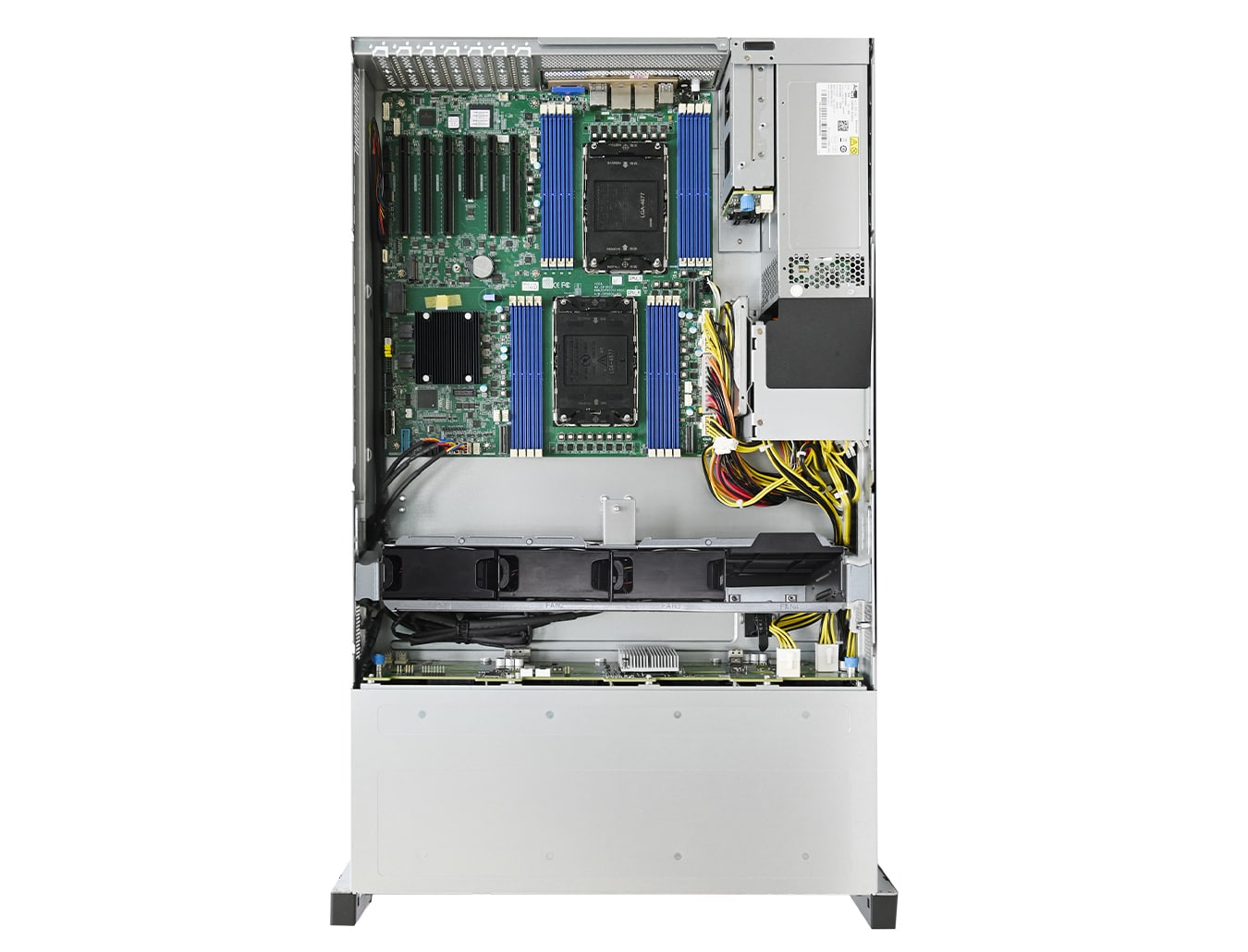

AIC ES1-208-E1 (internal)
The ES1 line is highlighted by its tool-free design, simplifying installation and maintenance for drive trays, fan components, and backplanes. Additionally, all models accommodate closed-loop liquid cooling systems, an essential feature for managing heat dissipation, particularly for motherboards with shadow CPU layouts.
Here is a quick look at the four models in this series.

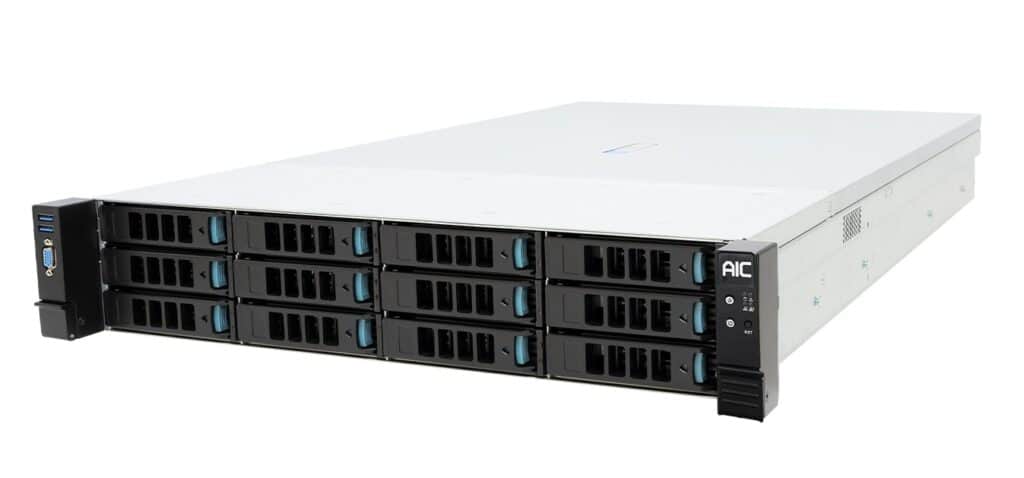

ES1-212-E0
The ES1-212-E0 offers flexibility and reliability for high-performance server environments. It supports larger motherboards up to EATX+ sizes and features a tool-free assembly process that includes the drive trays, fan bars, and backplane. This design aims to streamline maintenance and installation tasks. The chassis includes a front VGA port to facilitate troubleshooting and maintenance operations. The unit ensures reliable performance under demanding conditions with a maximum power supply capacity of 2000W.
The cooling system of the ES1-212-E0 comprises up to four hot-swappable 80x38mm fans, capable of supporting a TDP of up to 270W. Additional storage options include rear-mounted hot-swappable 2.5-inch OS drive bays and an internal bracket for expanding storage with 2.5-inch drives. For users with diverse application needs, the backplane options range from an eight-port SAS3 configuration to an NVMe tri-mode setup.
The chassis is made with SGCC material and adheres to the EIA-RS310D industry standard. The unit combines durability with functionality with its black front panel and anti-vibration fan design. The gross weight of the system, including the power supply and rail, is approximately 46 pounds.
ES1-212-E0 Specifications
| Specification | Details |
| Dimensions (W x D x H) | 438 x 720 x 87 mm (17.2 x 28.35 x 3.4 inches) |
| Industry Standard | EIA-RS310D |
| Material | SGCC |
| Color | Front Panel: Black |
| Cooling | 3 x 80x38mm hot-swap fans (optional with 4th 80x38mm fan) |
| Power Supply | SKU 1: 550W 1+1 redundant PSU 80+ Platinum SKU 2: 800W 1+1 redundant PSU 80+ Platinum/Titanium |
| Expansion Slots | 7 low-profile |
| Front Panel | System power on/off, System ID, system reset, 2 x USB3.0 ports |
| LED Indicators | Power, ID, LAN 1, LAN 2, Drive, and Alert |
| System Board | SSI EEB 3.6 compliant, E-ATX up to 12.8” (W) x 14” (D) |
| Drive Bays | External: 8 x 3.5” hot-swap Optional: 2 x 2.5” hot-swap (rear) Internal: 2 x 2.5” (optional) |
| Backplanes | Front: 1 x 8-port SAS3/SATA or NVMe tri-mode backplane Rear: 1 x 2-port SATA or SAS3/SATA/PCIe Gen5 NVMe tri-mode backplane (optional) |
| Storage Temperature | 0°C (32°F) ~ 50°C (122°F) |
| Humidity | 5% ~ 95% non-condensing |
| Gross Weight (with PSU & Rail) | 21 kg (46.3 lbs) |
| Package Dimensions (W x D x H) | 620 x 960 x 274 mm (24.4 x 37.8 x 10.8 inches) |
| Cubic Feet | 4.62 |
| Container Load Quantity | 20’: 140 units 40’: 294 units 40’H: 336 units |
| Mounting | Standard: 36” tool-less slide rail |

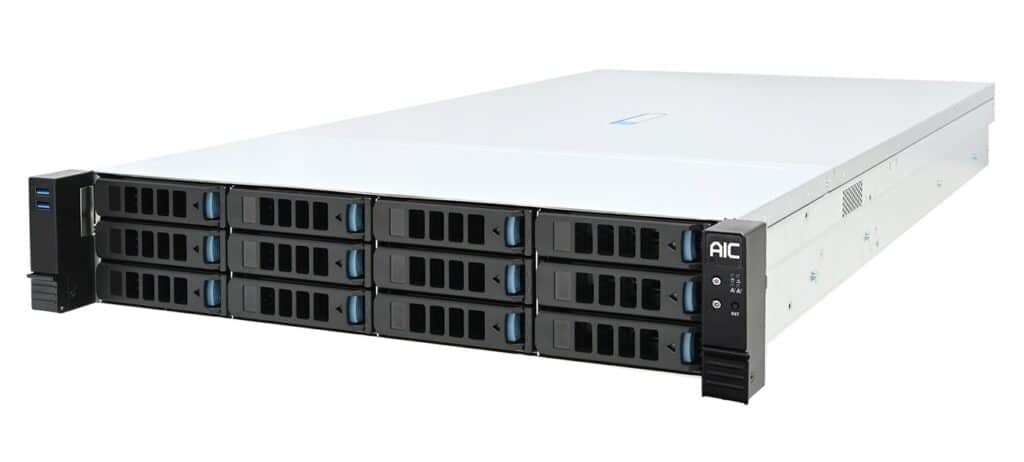

ES1-212-E1
The ES1-212-E1 shares many of the features of the ES1-212-E0, with minor adjustments to accommodate different usage scenarios. This model is compatible with EATX+ motherboards and has the tool-free design for easy installation and servicing. The cooling system supports the same configuration of up to four hot-swappable fans, ensuring reliable thermal management for components with higher thermal design power.
The chassis offers flexible storage configurations, including optional brackets for internal 2.5-inch drives and backplane options for SAS3 or NVMe tri-mode configurations. Like the ES1-212-E0, it is made from SGCC material and adheres to the same industry standards.
ES1-212-E1 Specifications
| Specification | Details |
| Dimensions (W x D x H) | 438 x 720 x 87 mm (17.2 x 28.35 x 3.4 inches) |
| Industry Standard | EIA-RS310D |
| Material | SGCC |
| Color | Front Panel: Black |
| Cooling | 3 x 80x38mm hot-swap fans (optional with 4th 80x38mm fan) |
| Power Supply | SKU 1: 550W 1+1 redundant PSU 80+ Platinum SKU 2: 800W 1+1 redundant PSU 80+ Platinum/Titanium |
| Expansion Slots | 7 low-profile |
| Front Panel | System power on/off, System ID, system reset, 2 x USB3.0 ports |
| LED Indicators | Power, ID, LAN 1, LAN 2, Drive, and Alert |
| System Board | SSI EEB 3.6 compliant, E-ATX up to 12.8” (W) x 14” (D) |
| Drive Bays | External: 8 x 3.5” hot-swap Optional: 2 x 2.5” hot-swap (rear) Internal: 2 x 2.5” (optional) |
| Backplanes | Front: 1 x 8-port SAS3/SATA or NVMe tri-mode backplane Rear: 1 x 2-port SATA or SAS3/SATA/PCIe Gen5 NVMe tri-mode backplane (optional) |
| Storage Temperature | 0°C (32°F) ~ 50°C (122°F) |
| Humidity | 5% ~ 95% non-condensing |
| Gross Weight (with PSU & Rail) | 21 kg (46.3 lbs) |
| Package Dimensions (W x D x H) | 620 x 960 x 274 mm (24.4 x 37.8 x 10.8 inches) |
| Cubic Feet | 4.62 |
| Container Load Quantity | 20’: 140 units 40’: 294 units 40’H: 336 units |
| Mounting | Standard: 36” tool-less slide rail |

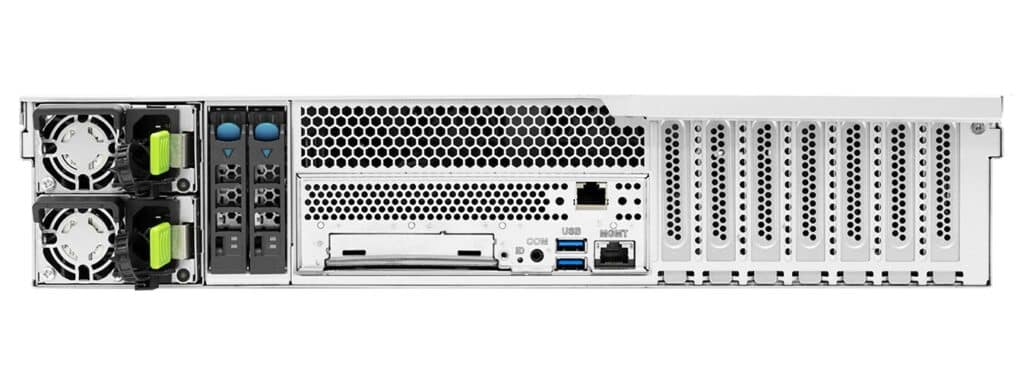

ES1-208-E0
The ES1-208-E0 is a slightly scaled-down version of the 212 series, offering a power supply capacity of up to 1300W. Like the other models, it supports EATX+ motherboards and features a tool-free assembly process to facilitate quick and easy installation. The cooling system is also comprehensive, with the option for up to four hot-swappable fans to manage thermal loads effectively.
This model also provides flexible storage options, supporting external and internal 2.5-inch drives and eight front-facing 3.5-inch hot-swappable bays. The chassis is designed with anti-vibration features to enhance operational stability, and its construction from SGCC material ensures long-term durability. These features make it a reliable choice for general-purpose server environments.
ES1-208-E0 Specifications
| Specification | Details |
| Dimensions (W x D x H) | 438 x 720 x 87 mm (17.2 x 28.35 x 3.4 inches) |
| Industry Standard | EIA-RS310D |
| Material | SGCC |
| Color | Front Panel: Black |
| Cooling | 3 x 80x38mm hot-swap fans (optional with 4th 80x38mm fan) |
| Power Supply | SKU 1: 550W 1+1 redundant PSU 80+ Platinum SKU 2: 800W 1+1 redundant PSU 80+ Platinum/Titanium |
| Expansion Slots | 7 low-profile |
| Front Panel | System power on/off, System ID, system reset, 2 x USB3.0 ports |
| LED Indicators | Power, ID, LAN 1, LAN 2, Drive, and Alert |
| System Board | SSI EEB 3.6 compliant, E-ATX up to 12.8” (W) x 14” (D) |
| Drive Bays | External: 8 x 3.5” hot-swap Optional: 2 x 2.5” hot-swap (rear) Internal: 2 x 2.5” (optional) |
| Backplanes | Front: 1 x 8-port SAS3/SATA or NVMe tri-mode backplane Rear: 1 x 2-port SATA or SAS3/SATA/PCIe Gen5 NVMe tri-mode backplane (optional) |
| Storage Temperature | 0°C (32°F) ~ 50°C (122°F) |
| Humidity | 5% ~ 95% non-condensing |
| Gross Weight (with PSU & Rail) | 21 kg (46.3 lbs) |
| Package Dimensions (W x D x H) | 620 x 960 x 274 mm (24.4 x 37.8 x 10.8 inches) |
| Cubic Feet | 4.62 |
| Container Load Quantity | 20’: 140 units 40’: 294 units 40’H: 336 units |
| Mounting | Standard: 36” tool-less slide rail |

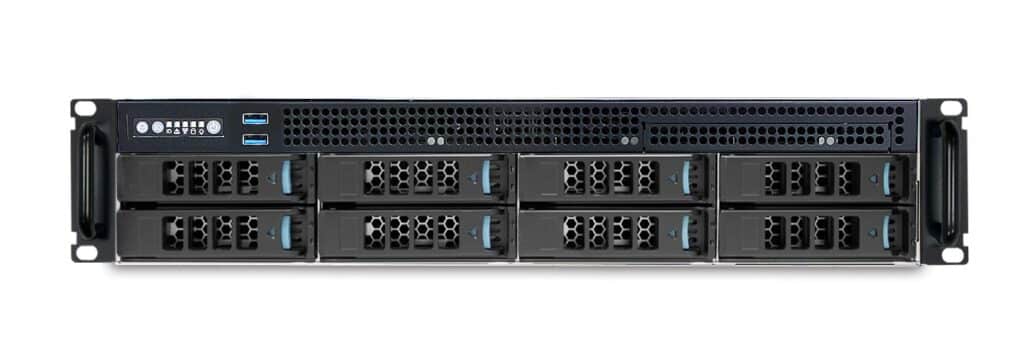

ES1-208-E1
The ES1-208-E1 is optimized for slightly lower power requirements, with support for up to 1200W. Despite this reduction, the model retains the essential features of the series, including support for EATX+ motherboards and a tool-free design for easy setup. Its cooling system, featuring up to four hot-swappable fans, ensures efficient heat management even under demanding conditions.
Storage capabilities remain flexible, with options for additional internal and rear-mounted 2.5-inch drive bays. Like others in the series, this model is constructed from SGCC material and complies with industry standards. With its blend of durability, reliability, and adaptability, the ES1-208-E1 is well-suited for a range of server applications.
ES1-208-E1 Specification Sheets
| Specification | Details |
| Dimensions (W x D x H) | 438 x 720 x 87 mm (17.2 x 28.35 x 3.4 inches) |
| Industry Standard | EIA-RS310D |
| Material | SGCC |
| Color | Front Panel: Black |
| Cooling | 3 x 80x38mm hot-swap fans (optional with 4th 80x38mm fan) |
| Power Supply | SKU 1: 550W 1+1 redundant PSU 80+ Platinum SKU 2: 800W 1+1 redundant PSU 80+ Platinum/Titanium |
| Expansion Slots | 7 low-profile |
| Front Panel | System power on/off, System ID, system reset, 2 x USB3.0 ports |
| LED Indicators | Power, ID, LAN 1, LAN 2, Drive, and Alert |
| System Board | SSI EEB 3.6 compliant, E-ATX up to 12.8” (W) x 14” (D) |
| Drive Bays | External: 8 x 3.5” hot-swap Optional: 2 x 2.5” hot-swap (rear) Internal: 2 x 2.5” (optional) |
| Backplanes | Front: 1 x 8-port SAS3/SATA or NVMe tri-mode backplane Rear: 1 x 2-port SATA or SAS3/SATA/PCIe Gen5 NVMe tri-mode backplane (optional) |
| Storage Temperature | 0°C (32°F) ~ 50°C (122°F) |
| Humidity | 5% ~ 95% non-condensing |
| Gross Weight (with PSU & Rail) | 21 kg (46.3 lbs) |
| Package Dimensions (W x D x H) | 620 x 960 x 274 mm (24.4 x 37.8 x 10.8 inches) |
| Cubic Feet | 4.62 |
| Container Load Quantity | 20’: 140 units 40’: 294 units 40’H: 336 units |
| Mounting | Standard: 36-inch tool-less slide rail |
