AIC Unveils New JBODs Highlighted by 108-Drive 4U Unit

by Lyle Smith

High-Performance, scalable storage Solutions for data-driven enterprises.

AIC has expanded its product offerings with a new line of SAS4 JBOD systems designed to meet the increasing demands for high-availability and high-performance storage solutions. These systems are powered by 24Gb/s SAS expanders, ensuring faster data throughput and comprehensive storage capabilities. They support dual-port 3.5″ and 2.5″ HDDs and SSDs, enhancing redundancy and operational efficiency. Offered in 2U and 4U form factors, these JBODs feature a modular, tool-less, and cable-free design, simplifying deployment and maintenance.

J4108-02-04X (4U, 108-Bay)

First up is the J4108-02-04X, a 4U JBOD enclosure designed for enterprises requiring large-scale, high-performance storage solutions. It supports up to 108 3.5″ drives (with an option to support 2.5″ drives), making it ideal for environments with large data sets or high redundancy requirements. The system features single or dual expanders and offers advanced enclosure management, including individual drive power management. With its hot-swap design, this model ensures easy maintenance and reduces downtime, which is essential for critical applications where continuous operation is paramount.

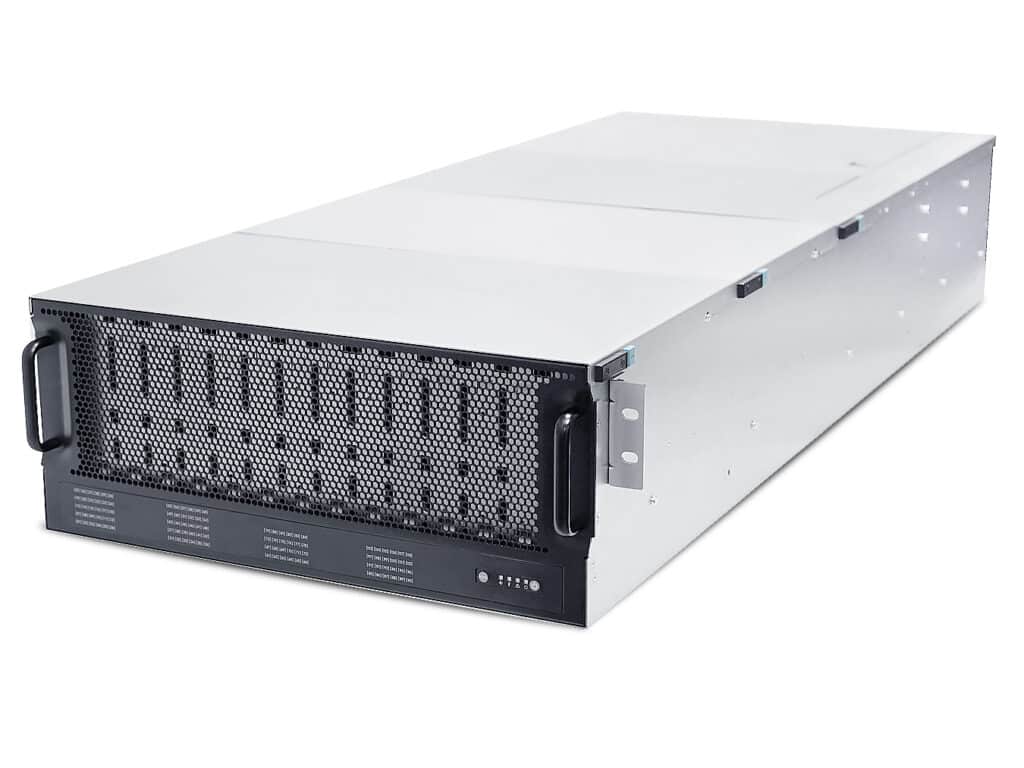

J4108-02-04X (4U, 108-Bay)

The J4108-02-04X also integrates essential features like an Enclosure Cable Management Kit and tool-less drive trays, further simplifying hardware management. Eight 60x56mm hot-swap fans, with an additional fan per expander module, provide cooling, while dual hot-swap redundant power supplies (available in Platinum and Titanium efficiency ratings) ensure uninterrupted operation. Its dimensions and mounting options are optimized for larger rack systems, making it a versatile choice for enterprise data centers.

J4108-02-04X Specifications

General
Number of Expanders Single/Dual
Expander Chip
  • Hub: SAS4x48
  • Edge: SAS35x40 & SAS35x36/SAS4x40 & SAS4x32
Host/Expansion Interface 4 x Mini SAS HD (SFF-8674) per expander module (backward compatible with SFF-8644 SAS12G)
Drives Supported
Drive Interface
  • 24Gb & 12Gb SAS if using dual expanders
  • 24Gb & 12Gb SAS + 6Gb SAS/SATA if using single expander
Form Factor 3.5″ (2.5″ with optional kit)
Administration / Management
Admin/Firmware Upgrade In-band, IEM port
LED Indicators, Audible Alarm Yes
Hot Swap & Redundancy
Drive Bays 108
Cooling
  • 8 x 60x56mm hot swap fans
  • 1 x 40x56mm fan per expander module
Power Supply
  • 2000W 1+1 hot swap redundant 80+ Platinum (C20 power plug)
  • 2000W 1+1 hot swap redundant 80+ Titanium (C14 power plug)
Power Entry Dual AC Inlet
Electrical & Environment
AC Input
  • Platinum: 200-240V~, 50/60Hz, 15A
  • Titanium: 100-127V~, 50/60Hz, 12A
  • 200-240V~, 50/60Hz, 10A
Operating Environment Temperature: 0°C to 35°C, Relative humidity: 20% to 80%
Non-operating Environment Temperature: -20°C to 60°C, Relative humidity: 10% to 90%
Physical Specifications
Dimensions (W x D x H)
  • mm: 434 x 1050 x 176
  • mm (with CMA): 434 x 1273 x 176
  • inches: 17 x 41 x 7
  • inches (with CMA): 17 x 50 x 7
Gross Weight (w/ PSU, Rail, and Pallet; w/o Disks)
  • kgs: 66.97
  • lbs: 147.6
Packaging Dimension (W x D x H)
  • mm: 640 x 1380 x 526
  • inches: 25.2 x 54.3 x 20.7
Mounting
  • Standard: 41″ Slide Rail
  • Option: Cable Management Kit

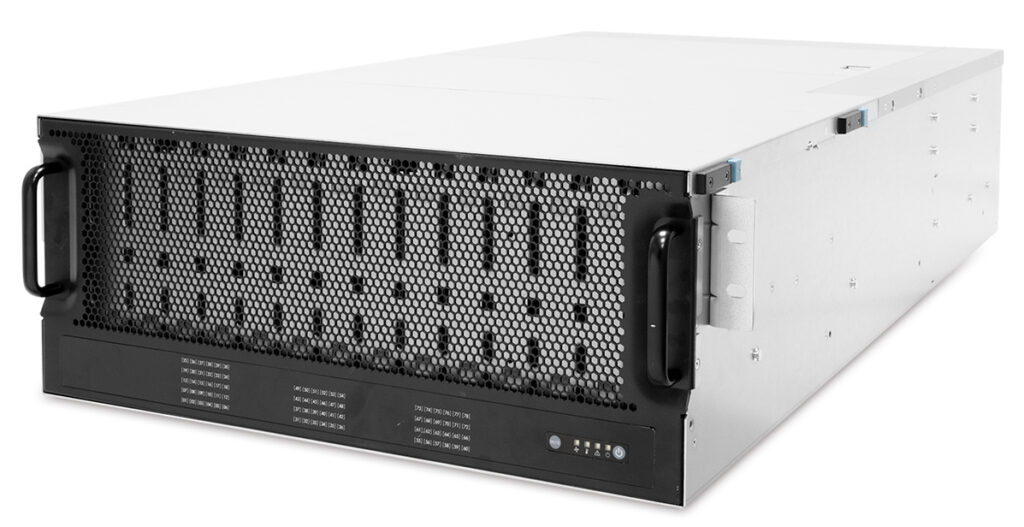

J4078-02-04X (4U, 78-Bay)

The J4078-02-04X offers a slightly smaller configuration with 78 bays, making it a more compact but highly effective JBOD option. Like the J4108, it supports 24Gb/s SAS expanders and is built to handle high-availability environments. It supports both 3.5″ and, optionally, 2.5″ drives, offering flexibility in terms of storage media. Key features include intelligent enclosure management, tool-less trays, and an enclosure cable management kit for streamlined system setup and maintenance.

This model is designed for standard 1000mm depth rackmount server cabinets and prioritizes efficient space utilization without compromising performance. Its dual expander configuration allows for scalability and redundancy, making it a solid choice for data-intensive applications. The power supply unit in this model is similarly redundant and highly efficient, with options for both Platinum and Titanium-rated supplies. With a reliable cooling system, this JBOD ensures stable performance even in demanding environments.

J4078-02-04X Specifications

General
Number of Expanders Single/Dual
Expander Chip
  • Hub: SAS4x48
  • Edge: SAS35x40 & SAS35x36/SAS4x40 & SAS4x32
Host/Expansion Interface 4 x Mini SAS HD (SFF-8674) per expander module (backward compatible with SFF-8644 SAS12G)
Drives Supported
Drive Interface
  • 24Gb & 12Gb SAS if using dual expanders
  • 24Gb & 12Gb SAS + 6Gb SAS/SATA if using single expander
Form Factor 3.5″ (2.5″ with optional kit)
Administration / Management
Admin/Firmware Upgrade In-band, IEM port
LED Indicators, Audible Alarm Yes
Hot Swap & Redundancy
Drive Bays 78
Cooling
  • 8 x 60x56mm hot swap fans
  • 1 x 40x56mm fan per expander module
Power Supply 1600W 1+1 hot swap redundant 80+ Platinum/Titanium
Power Entry Dual AC Inlet
Electrical & Environment
AC Input 200-240Vac, 50/60Hz, 12A (Platinum) / 10A (Titanium)
Operating Environment Temperature: 0°C to 35°C, Relative humidity: 20% to 80%
Non-operating Environment Temperature: -20°C to 60°C, Relative humidity: 10% to 90%
Physical Specifications
Dimensions (W x D x H)
  • mm: 434 x 810.5 x 176
  • mm (with CMA): 434 x 974.7 x 176
  • inches: 17 x 31.9 x 7
  • inches (with CMA): 17 x 38.4 x 7
Gross Weight (w/ PSU, Rail, and Pallet; w/o Disks)
  • kgs: 57.67
  • lbs: 127.1
Packaging Dimension (W x D x H)
  • mm: 675 x 1120 x 536
  • inches: 26.6 x 44.1 x 21.1
Mounting
  • Standard: 31″ Slide Rail
  • Option: Cable Management Kit

J2024-07-04X (2U, 24-Bay, Short Depth)

The J2024-07-04X is a more compact, 2U JBOD enclosure with 24 bays designed specifically for environments where space is critical. Despite its smaller form, this unit still delivers impressive performance, integrating 2.5″ SAS (24Gb/12Gb) or SATA (6Gb) disk drives with a rugged internal board-to-board connection for increased durability and stability. The short-depth design allows it to fit into tighter spaces without sacrificing storage capacity or performance.

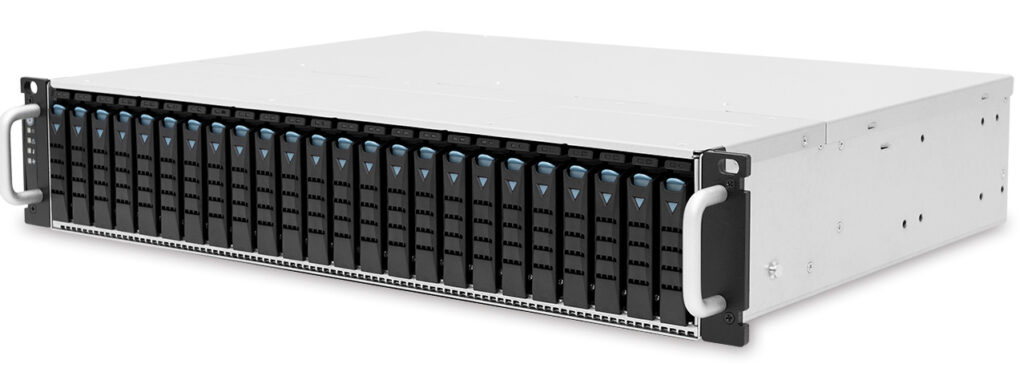

AIC-J2024-07-04X

This model also has user-friendly features, such as a tool-less design, hot-swap capabilities for drives and power units, and clear LED indicators for easy monitoring. Including a BMC (Baseboard Management Controller) enables advanced remote management, while its thermal optimization ensures efficient cooling, even with a more compact footprint. With support for dual expanders and various power options, the J2024-07-04X is a powerful solution for small to medium-sized enterprises looking for efficient, high-performance storage in a compact package.

J2024-07-04X Specifications

General
Number of Expanders Single/Dual
Expander Chip LSI SAS4X40
Host/Expansion Interface 4 x Mini SAS HD (SFF-8674) per expander module (backward compatible with SFF-8644 SAS12G)
Drives Supported
Drive Interface
  • 24Gb & 12Gb SAS if using dual expanders
  • 24Gb & 12Gb SAS + 6Gb SAS/SATA if using single expander
Form Factor SFF 2.5″
Administration / Management
Admin/Firmware Upgrade In-band, Serial port interface, IEM port
LED Indicators, Audible Alarm Yes
Hot Swap & Redundancy
Drive Bays 24 hot swap
Cooling 2 x 60x56mm hot swap fans
Power Supply 800W 1+1 hot swap redundant power supply 80+ Platinum/Titanium
Power Entry Dual AC Inlet
Electrical & Environment
AC Input
  • 100~127V~, 50/60Hz, 7.0A
  • 200~240V~, 50/60Hz, 3.5A
Operating Environment Temperature: 0°C to 35°C, Relative humidity: 20% to 80%
Non-operating Environment Storage temperature: -20°C to 60°C, Relative humidity: 10% to 90%
Physical Specifications
Dimensions (W x D x H)
  • mm: 438 x 345 x 87.5
  • inches: 17.2 x 13.6 x 3.4
Gross Weight (w/ PSU, Rail; w/o Pallet, Disks)
  • kgs: 20.05
  • lbs: 44.2
Packaging Dimension (W x D x H)
  • mm: 605 x 640 x 318
  • inches: 23.8 x 25.2 x 12.5
Mounting Option: 20″ Rail
