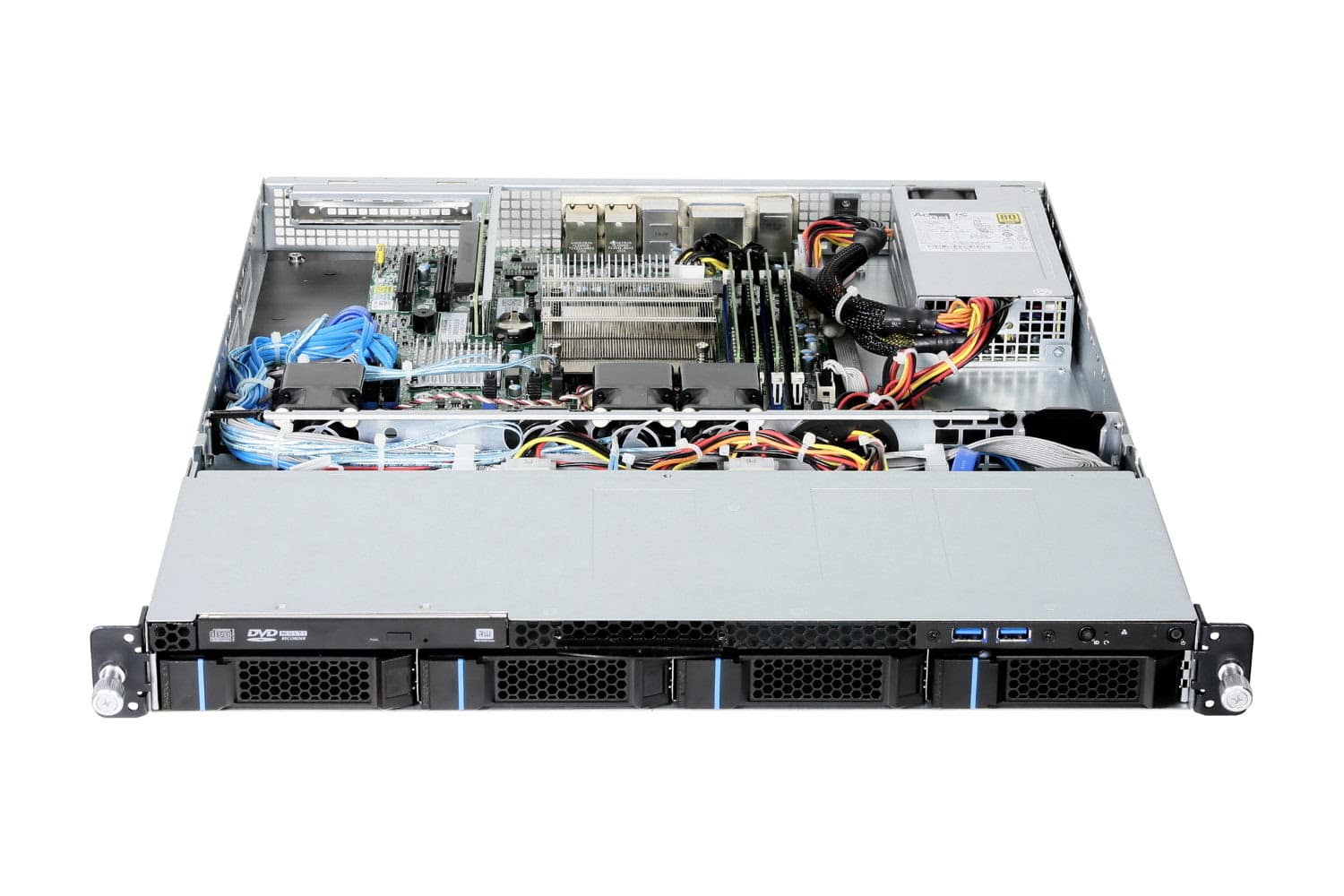

Chenbro has announced the RB14604, a 1U server featuring integrated Intel Server Board M10JNP2SB for Intel Xeon E processors and 4x Hot-Swap 3.5” Drive Bays. This Level 6 barebones server solution comes pre-integrated with a server-grade microATX motherboard, which is ideal for applications such as web hosting, content delivery, storage applications, and entry-level Cloud services.
The RB14604 ships pre-tested for compatibility and long-term reliability with the pre-installed Intel M10JNP2SB Server Board. It comes equipped with a 400W 80Plus Gold level PSU with MTBF 100K+ Hours, cable routing options, four dedicated cooling fans, and air ducts to help ensure 95W Intel Xeon E processors stay cool and running.
In addition to the four hot-swap bays for 3.5-inch storage drives, the RB14604 includes two 2.5-inch internal bays and a storage backplane for four 3.5-inch SAS/SATA drives. It also features internal expansion via its 1X half-length, full-height PCI-Express 8x slot and comes with four 1GbE from an Intel i210 Ethernet Controller. Moreover, it comes it supports up to four ECC UDIMM 2666MHz for a possible total of 128GB RAM.
Chenbro RB14604 Specifications
| Form Factor | 1U |
| MB | Intel M10JNP2SB (Juniper Pass) |
| CPU | Intel Xeon E Processor (Single LGA1151), up to 95W TDP |
| Chipset | Intel C246 Chipset |
| CPU Heatsink | 1U passive |
| Memory Capacity | 4 x DIMM slots supporting up to 128GB DDR UDIMM ECC 2666 MT/s, 1.2V |
| Dimensions (D x W x H) | 547.6 x 438.5 x 43.5 (mm) 21.56’’ x 17.26’’ x 1.71’’ |
| Drive Bay | 3.5″ Hot-swap：4 2.5″ Internal SSD：2 Slim ODD (Optional)：1 |
| PSU Form Factor | 400W Single, 80+ Gold (default) |
| Indicator | 1 x Power Status 2 x LAN Activity 1 x UID 1 x HDD Status 1 x System Status |
| Front Control | 1 x Power On/Off 1 x System Reset 1 x UID 2 x USB3.1 Gen1 |
| Cooling Fan | Middle : 3 x 40 mm (default) Up to 5 x 40mm (LFF SKU), 4 x 40mm (SFF SKU) |
| Expansion Slot | 1 x FHHL, PCIe x8 Gen 3.0 |
| HDD Backplane | 3.5″ 4-port 12Gbps SAS/SATA |
| I/O Module | 4 x USB3.1 Gen2 1 x COM port |
| TPM Version | TPM 2.0 Module |
| Ethernet | 4 x 1GbE Base-T RJ45 1 x MGNT |
| Serial Port | 1 x ASPEED IPMI2.0 Compliant AST 2500 BMC |
| Video | D-sub VGA port |
| Net Weight | 14.0 Kg |
Availability
The Chenbro RB14604 is slated for a mid-July release in North America and Europe.
