Dell ObjectScale 1.3 Leads to a Fully Integrated Solution

by Harold Fritts

Dell’s ObjectScale, a containerized object storage solution, revolutionizes how organizations handle demanding storage needs. This system offers a global namespace, robust S3 compatibility, and enterprise-grade security. The introduction of ObjectScale version 1.3 marks a significant upgrade, transforming it into a fully integrated solution.

Dell’s ObjectScale, a containerized object storage solution, revolutionizes how organizations handle demanding storage needs. This system offers a global namespace, robust S3 compatibility, and enterprise-grade security. The introduction of ObjectScale version 1.3 marks a significant upgrade, transforming it into a fully integrated solution.

There’s also a hardware release, the new ObjectScale XF960 all-flash appliance, which is based on the latest Dell PowerEdge server, providing unparalleled flexibility and performance.

ObjectScale stands out as a potent object storage appliance, uniquely built on Kubernetes. It’s designed for scalability, from immediate needs to petabyte-level expansion, with flexible pricing models. Choose from OpEx or CapEx pricing models for true public cloud-like ease. The software-defined ObjectScale can be optimized for edge data ingest, while the XF960 excels in intensive data center processing. Combined with Starburst, ObjectScale forms a scalable, high-performance lakehouse architecture suitable for on-premises and multicloud environments.

ObjectScale offers two software-defined options: the Software Bundle, where Dell manages ObjectScale and Kubernetes on the user’s infrastructure, and the as-an-Application option, where ObjectScale runs on Red Hat OpenShift. This flexibility caters to various organizational needs.

Dell XF960 ObjectScale Appliance

The XF960 solution is tailored for AI, machine learning, and cloud-native applications, delivering the low-latency performance essential for these technologies. It boasts advanced PowerEdge server capabilities and full-stack NVMe connectivity, achieving impressive data transfer speeds.

The XF960 hardware stack includes servers, network switches, rack-mount equipment, and appropriate power cables, all optimized to run ObjectScale software. Additionally, the XF960 is designed with sustainability in mind, featuring Dell’s Smart Cooling technology and offering higher density and reduced emissions compared to previous models.

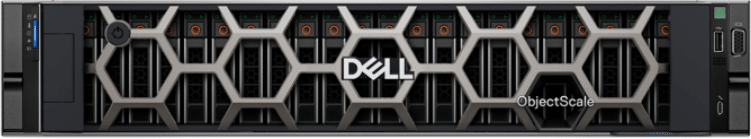

ObjectScale XF960
Features Technical Specifications
Node architecture
  •  Intel x86 servers
  • Integrated storage
  • 24 disk drives per node
Network connectivity
  • 25GbE FrontEnd
  • 100GbE BackEnd
Storage configurations
  • Unstructured storage up to 11,796TB RAW per cluster
Architecture
  • Fully accessible–field serviceable components
  • Conventional front-to-back cooling
  • HA power cabling and cooling
Min / max cluster size
  • 4 node minimum; 5 nodes recommended for HA
  • Maximum: 16 nodes
Node:disk ratio
  •  1:24
Disk type
  •  30.72TB (NVMe)
Optional cache SSD
  •  N/A
Raw capacity (per node)
  •  737.28TB
Node dimensions
  •  2U x D 736mm (28.98 inches)
  • Weight: 36.1kg (79.58lbs) (with 24 drives)
Max power
  • 1.136kVA per 2U node
Max heat load
  • 3878 BTU/Hr for every 2U node
Power specifications (server)
  • 2X N+1 1400W power supplies per node
Connectivity
  • Front End: 2x 25GbE SFP+ connections per node
  • Back End: dual 100 GbE back end switches (internal traffic) per rack
Environmental specifications
  • Operating temperature (°F/°C): 41 – 90/ 5 – 32
  • Max. altitude: 7,500 ft/ 2,286 m @ 90°F/32°C
  • Relative humidity: 20 – 80% non-condensing
  • Raised floor: not required

ObjectScale is built on the same foundation as Dell ECS, inheriting its trusted, enterprise-grade features. It incorporates a Zero-Trust security approach, ensuring comprehensive data protection. The latest software update and XF960 add new features like enhanced S3 bucket logging, replication, and protection against internal threats.

Dell’s ObjectScale provides an experience akin to public cloud services but with greater control, performance, and security. With Dell managing the Kubernetes layer, teams can focus more on data science and application development. This innovation underscores Dell Technologies’ commitment to leading the industry in object storage solutions.
