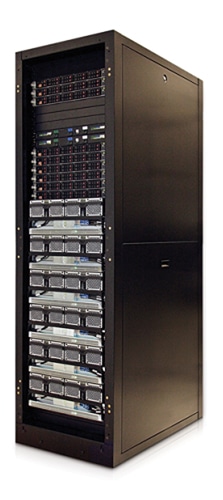

Today Western Digital Corporation (WDC) introduced a new model to its HGST Active Archive Object Storage System, the SA-1000. This latest model of Active Archive is targeted at media and entertainment digital data preservation, life sciences data pools, and cloud backup. WDC states that the SA-1000 will enable smaller object storage footprints with easy-to-manage building blocks to scale capacity as needed.
As we previously stated, The Active Archive System is ready out of the box and delivers 4.7PB (3.5PB usable) in a single rack. It is simple to scale-out with a plug-and-play, all it needs is a power source and a network connection. This is part of HGST’s “Simplicity at Scale” foundation, enabling organizations a simple and cost-effective way to scale-out so they can focus on their primary business not on their storage infrastructure. It also allows for limitless scaling without the costly need of replication.
The SA-1000 allows customers to start small and scale as they grow. Small is a relative word here as the SA-1000 can scale from 672TB to 28PB of total capacity geo-dispersed across three data centers in a single namespace. This brings about quite a bit of flexibility to customers looking to deploy an Active Archive Object Storage System. The SA-1000 comes with all the other benefits or Active Archive Object Storage System including cloud-scale data durability, secure data manageability, multi-geo data dispersion for wide-open access to data, and easy disaster recovery.
HGST has also enhanced the software of all Active Archive Object Storage Systems now enabling scale-up, scale-out, clustering, and end-to-end security features.
HGST Active Archive SA-1000 specifications:
- Model # & Configurations: SA1000 Base System | SA7000 Full System
- Configuration capacity (raw/usable): 672TB / 425TB | 4704TB / 2976TB
- Expansion Options for SA1000 ONLY: UA1000
- Scale-Up Modules (raw/usable): 672TB / 425TB
- 3-Geo configuration (raw/usable): 14.1PB / 6.9PB max
- Client throughput performance: Up to 3.5GB/s (depending on configuration)
- Reliability
- Tolerance: 1000 bit errors per object
- Data durability: Up to 15x9s (99.9999999999999%)
- Availability (hrs/day x days/wk): 24×7
- Upgrade: Rolling upgrades
- Connectivity
- Protocols: RESTful S3 (NFS/SMB via NAS gateway)
- Client connectivity: 60Gb/s (6x10Gb/s)
- Rack size, height x width x depth: 2041 x 600 x 1100mm (82.52 x 23.622 x 40.354in)
- Weight kg (lbs): 710 (1566) | 1020 (2249)
- Power
- Power supply: Redundant intelligent PDUs
- Power consumption
- Typical/max (W): 2700/3000 | 6700/7400
- Typical/max (KVA): 2.7/2.78 | 6.98/7.05
- Power characteristics: 200-240VAC, 30A, 3 phase, Delta and WYE options, 50/60Hz
- Environmental
- Cooling: Redundant high efficiency fans in the system
- Temperature range: 20° to 35°C de-rated 2% per 1000 feet altitude increase
- Humidity: 8% to 90% (non-condensing)
- Compliance: FCC/ICES-003, CE, VCCI, CISPR 22, CISPR 24, KN22, KN24, EN60950-1 2nd Edition, UL60950-1 2nd Edition
- BTU/hr (Max): 10,134 | 25,147
- Carbon footprint: 0.0062 Metric Tons of CO2 (Max)
Availability
The HGST Active Archive SA-1000 is available now.
