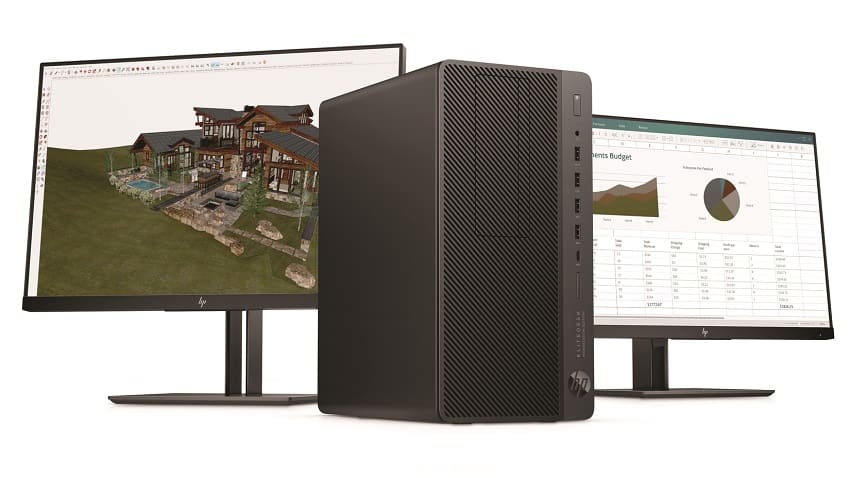

HP has unveiled the HP EliteDesk 705 Workstation Edition. Designed for power users, STEM Students, architects and engineers looking to upgrade to an accessible performance-driven workstation, the EliteDesk 705 is HP’s most affordable professional certified desktop to date. This workstation features up to an AMD Ryzen 7 Pro 2700X Eight-Core CPU, 64 GB DDR4-2666 SDRAM, 512 GB PCIe NVMe SED Opal 2 TLC M.2 SSD, and professional graphics cards including the AMD Radeon Pro WX 3100 Graphics and NVIDIA Quadro P1000.
HP has unveiled the HP EliteDesk 705 Workstation Edition. Designed for power users, STEM Students, architects and engineers looking to upgrade to an accessible performance-driven workstation, the EliteDesk 705 is HP’s most affordable professional certified desktop to date. This workstation features up to an AMD Ryzen 7 Pro 2700X Eight-Core CPU, 64 GB DDR4-2666 SDRAM, 512 GB PCIe NVMe SED Opal 2 TLC M.2 SSD, and professional graphics cards including the AMD Radeon Pro WX 3100 Graphics and NVIDIA Quadro P1000.
The HP EliteDesk 705 excels in environments that need processing power for responsive performance during offline rendering and 3D modeling in CAD applications and for multitasking on business productivity applications. It thrives during compute tasks such as rendering, reduced assembly rebuild times in SOLIDWORKS or Inventor and experience smooth, seamless application viewports while interacting with 3D assets.
The HP EliteDesk 705 Workstation Edition is also bundled with malware and BIOS attack protection via self-healing and its hardware-enforced security solutions like HP Sure Start Gen4. In addition, multiple devices can be easily managed with the HP Manageability Integration Kit Gen2.
HP EliteDesk 705 Workstation Edition specifications
| Operating System | Windows 10 Pro 64 – HP recommends Windows 10 Pro Windows 10 Home Single Language 64 Windows 10 Home 64 FreeDOS 2.0 |
| Processor Family | 7th Generation AMD A10 APU processor (A10-9700) 7th Generation AMD A6 APU processor (A6-9500) 7th Generation AMD A8 APU processor (A8-9600) AMD Ryzen 3 PRO processor AMD Ryzen 5 PRO processor AMD Ryzen 7 PRO processor |
| Processors | AMD PRO A10-9700 APU with Radeon R7 Graphics (3.5 GHz base frequency, up to 3.8 GHz burst frequency, 2 MB cache, 4 cores) AMD PRO A6-9500 APU with Radeon R5 Graphics (3.5 GHz base frequency, up to 3.8 GHz burst frequency, 1 MB cache, 2 cores) AMD PRO A8-9600 APU with Radeon R7 Graphics (3.1 GHz base frequency, up to 3.4 GHz burst frequency, 2 MB cache, 4 cores) AMD Ryzen 3 PRO 2200G APU with AMD Radeon Vega 8 Graphics Quad-Core (3.5 GHz base frequency, up to 3.7 GHz burst frequency, 6 MB cache) AMD Ryzen 5 PRO 2400G APU with AMD Radeon Vega 11 Quad-Core Graphics (3.6 GHz base frequency, up to 3.9 GHz burst frequency, 6 MB cache) AMD Ryzen 5 Pro 2600 Six-Core (3.4 GHz base frequency, up to 3.9 GHz burst frequency, 576 KB L1 cache, 3 MB L2 cache, 16 MB L3 cache) AMD Ryzen 7 Pro 2700 Eight-Core (3.2 GHz base frequency, up to 4.1 GHz burst frequency, 768 KB L1 cache, 4 MB L2 cache, 16 MB L3 cache) AMD Ryzen 7 Pro 2700X Eight-Core (3.7 GHz base frequency, up to 4.3 GHz burst frequency, 768 KB L1 cache, 4 MB L2 cache, 16 MB cache) |
| Chipset | AMD B350 FCH |
| Maximum Memory | 64 GB DDR4-2666 SDRAM (Transfer rates up to 2666 MT/s.) |
| Memory Slots | 4 DIMM |
| Internal Storage | 500 GB up to 2 TB 7200 rpm SATA 500 GB SATA SED 500 GB 7200 rpm SATA FIPS SED 500 GB up to 2 TB 5400 rpm SATA SSHD 128 GB up to 512 GB SATA SSD 256 GB up to 512 GB SATA SED Opal 2 SSD 256 GB up to 512 GB SATA FIPS SSD 128 GB up to 512 GB PCIe NVMe SSD 128 GB up to 1 TB PCIe NVMe TLC M.2 SSD 256 GB up to 512 GB PCIe NVMe SED Opal 2 TLC M.2 SSD |
| Optical Storage | HP 9.5 mm Slim DVD-Writer |
| Available Graphics | Integrated: AMD Radeon R5 Graphics; AMD Radeon R7 Graphics; AMD Radeon Vega 8 Graphics; AMD Radeon RX Vega 11 Graphics Discrete: AMD Radeon Pro WX 3100 Graphics (4 GB GDDR5 dedicated); NVIDIA Quadro P1000 (4 GB GDDR5 dedicated); NVIDIA® GeForce GTX 1060 (3 GB GDDR5 dedicated); AMD Radeon RX 580 Graphics (4 GB GDDR5 dedicated); AMD Radeon RX 550 Graphics (4 GB GDDR5 dedicated); AMD Radeon RX 460 Graphics (2 GB GDDR5 dedicated); AMD Radeon R7 430 Graphics (2 GB GDDR5 dedicated) |
| Audio | Conexant universal audio jack, headset and headphone front ports (3.5 mm), multi-streaming capable |
| Networking | LAN: Realtek RTL8111EPH GbE WLAN: Realtek 802.11a/b/g/n/ac (2×2) and Bluetooth 4.2 Combo; Realtek 802.11a/b/g/n/ac (1×1) and Bluetooth 4.2 Combo; Intel Dual Band Wireless-AC 9260 802.11ac (2×2) and Bluetooth® 5 M.2, non-vPro |
| Expansion Slots | 1 M.2 2230; 1 M.2 2230/2280; 1 PCIe x16; 3 PCIe x1 (Configurable 1 M.2 slot for WLAN and 1 M.2 2230/2280 slot for storage.) |
| Ports and Connectors | Front: 1 headset connector; 1 USB 2.0; 2 USB 3.1 Gen 1; 1 USB 2.0 (fast charging); 1 USB Type-C (charging) Rear: 1 audio-in; 1 audio-out; 1 power connector; 1 RJ-45; 2 DisplayPort 1.2; 4 USB 2.0; 2 USB 3.1 Gen 122 Optional: 1 DisplayPort 1.2; 1 HDMI 2.0; 1 serial; 1 VGA; 1 USB 3.1 Type-C |
Price and Availability
The HP EliteDesk 705 Workstation Edition is scheduled for an October release and will start at $749.
