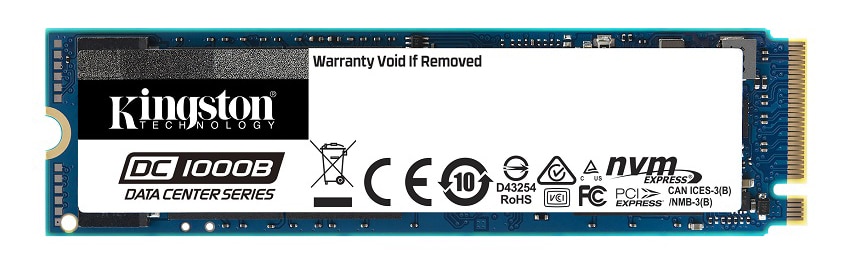

Kingston Digital has announced the availability of the DC1000B M.2 NVMe 3D TLC NAND SSD, a drive designed for servers with one or two boot-dedicated M.2 NVMe slots as well as for caching and logging use cases. The new DC1000B includes onboard power-loss protection while featuring 0.5D DWPD endurance to help promote an extended service life. Kingston says their new drive will deliver enterprise-level performance consistency and low-latency features.
Kingston Digital has announced the availability of the DC1000B M.2 NVMe 3D TLC NAND SSD, a drive designed for servers with one or two boot-dedicated M.2 NVMe slots as well as for caching and logging use cases. The new DC1000B includes onboard power-loss protection while featuring 0.5D DWPD endurance to help promote an extended service life. Kingston says their new drive will deliver enterprise-level performance consistency and low-latency features.
The DC1000B is quoted to deliver speeds up to 3.2GB/s and 205,000 IOPS via the latest Gen 3.0 x 4 PCIe interface. As such, the cost-effective boot drive is ideal for use in high-volume rack-mount servers as an internal boot drive(s) as well as purpose-built systems where a high-performance M.2 SSD is needed.
Kingston DC1000B Specifications
- Form Factor: M.2, 22mm x 80mm (2280)
- Interface: PCIe NVMe Gen 3 x 4
- Capacities: 240GB, 480GB
- NAND: 3D TLC
- Self-Encrypting Drive (SED): AES 256-bit Encryption
- Sequential Read/Write:
- 240GB – 2,200MBs/290MBs
- 480GB – 3,200MBs/565MBs
- Steady-State 4k Read/Write:
- 240GB – 111,000/12,000 IOPS
- 480GB – 205,000/20,000 IOPS
- Total Bytes Written (TBW):
- 240GB – 248TBW
- 480GB – 475TBW
- Latency Read (Avg): 161µs
- Latency Write (Avg): 75µs
- Power-Loss Protection (Power Caps): Yes
- Enterprise SMART tools: Reliability tracking, usage statistics, SSD life remaining, wear leveling, temperature
- Endurance:
- 240GB — (0.5 DWPD/5yrs)
- 480GB — (0.5 DWPD/5yrs)
- Power Consumption:
- 240GB: Idle: 1.82W, Average Read: 1.71W, Average Write: 3.16W
- Max Read: 1.81W, Max Write: 3.56W
- 480GB: Idle: 1.90W, Average Read: 1.74W, Average Write: 4.88W
- Max Read: 1.81W, Max Write: 5.47W
- Storage temperature: -40°C ~ 85°C
- Operating temperature: 0°C ~ 70°C
- Dimensions: 80mm x 22mm x 3.8mm
- Weight:
- 240GB – 8g
- 480GB – 9g
- Vibration operating: 2.17G Peak (7–800Hz)
- Vibration non-operating: 20G Peak (10–2000Hz)
- MTBF: 2 million hours
- Warranty/support: Limited 5-year warranty with free technical support
The DC1000B is available in 240GB and 480GB capacities and is backed by a 5-year warranty with free technical support.
