QCT (Quanta Cloud Technology) has unveiled the QuantaGrid D51PH-1ULH, T21P-4U, and T21SR-2U, three new storage solutions that are designed to accommodate a variety of storage applications ranging from tiering, scale out cloud storage to large-scale, high-computing enterprise applications. All three hybrid, ultra-dense, and converged storage platforms will be on display at the COMPUTEX Taipei 2015 event.
QCT (Quanta Cloud Technology) has unveiled the QuantaGrid D51PH-1ULH, T21P-4U, and T21SR-2U, three new storage solutions that are designed to accommodate a variety of storage applications ranging from tiering, scale out cloud storage to large-scale, high-computing enterprise applications. All three hybrid, ultra-dense, and converged storage platforms will be on display at the COMPUTEX Taipei 2015 event.

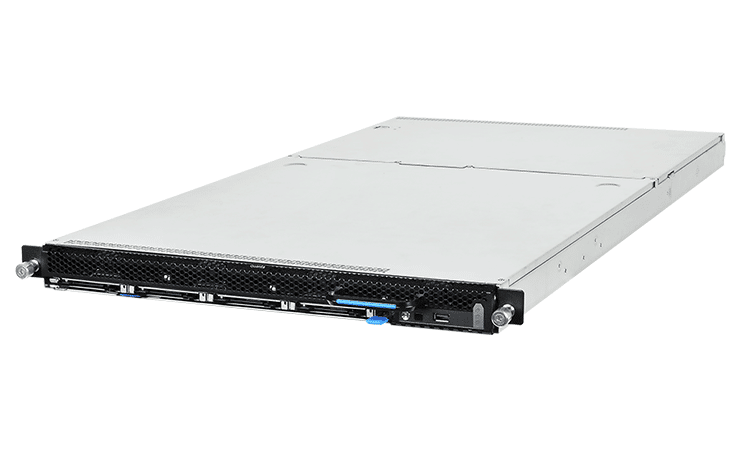

QuantaGrid D51PH-1ULH
The QuantaGrid D51PH-1ULH is a 1U hybrid, scale-out, high computing storage server built for use cases involving software defined storage, tier storage, and enterprise high computing applications as well as the ideal platform for OpenStack, Ceph, and Hadoop storage technologies. The D51PH-1ULH is also the industry’s first 1U x 12 H/S HDDs + 4 H/S SSDs storage server that is based on the Intel Xeon processor E5 v3 product family all the while boasting a flexible, hybrid platform ideal for tier storage.
QCT indicates that it offers businesses an optimized rack density with 50 percent space savings. In addition, the new storage server is equipped with a flexible OCP LAN mezzanine card that supports a variety of networking options and QCT innovative architecture. It is also designed to support ultra-dense hot-swappable drives in 1U form factor, which significantly alleviates the service issues and improves rack air flow.
QuantaGrid D51PH-1ULH Specifications
- Processor: Dual Intel Xeon processor E5-2600 V3 family, TDP up to 135W
- Chipset: Intel C610
- Memory: (16) 2133/1866/1600/1333MHz DDR4, support 8GB, 16GB and 32GB RDIMM/LRDIMM
- Form Factor: 1U Rack Mount
- Dimensions (WxHxL): 17.6” x 1.7” x 35”
- Expansion Slot:
- SAS Mezzanine x8
- OCP LAN Mezzanine slot x8
- Storage:
- (12) 3.5″/2.5″ hot-plug 12Gb/s SAS or 6Gb/s SATA HDD/SSD
- (4) 2.5″ hot-plug 7mm 6Gb/s SATA SSD
- (1) Internal SATA DOM
- Front I/O: (1) USB 2.0 port
- Power Supply: 700W Platinum PSU, 1+1 redundant power supplies, 100- 240V AC
- Fan: (6) 40×56 dual rotor fan
- System Management: IPMI v2.0 Compliant, on board “KVM over IP” support
- Operating Environment:
- Operating temperature: 5°C to 35°C (41°F to 95°F)
- Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
- Operating relative humidity: 50% to 85%RH
- Non-operating relative humidity: 20% to 90%RH
- Weight: ~62.8lb (~28.5 Kg)
- Storage Controller: Wellsburg PCH RSTe
- Network controller:
- Intel® I350 dual-port 1 GbE
- Dedicated 10/100/1000 management port
- Option:
- QCT Intel® I350 dual-port OCP mezzanine
- QCT Intel® X540 dual-port 10GbE BASE-T OCP mezzanine
- QCT Intel® 82599ES dual-port 10G SFP+ OCP mezzanine
- QCT Mellanox CX3PRO 10G SFP+ OCP mezzanine with RDMA support
- Onboard Storage: (1) SATADOM
- Video: Integrated AST2400 with 8MB DDR3 video memory
- Rear I/O:
- (2) USB 3.0 ports
- (1) VGA port
- (1) RS232 serial Port
- (2) 1GbE RJ45 ports
- (1) GbE RJ45 management port
- TPM: Yes (TPM 2.0/1.2, LPC)

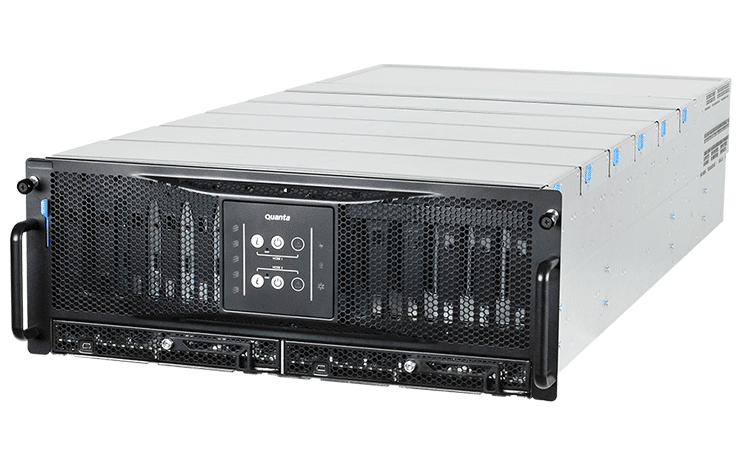

QuantaPlex T21P-4U
The QuantaPlex T21P-4U is a high density, high computing storage server that is based on the Intel Xeon processor E5 v3 line and supports up to 78 hard drives in 4U form factor, the latter which provides an ideal platform for high density cloud services, archiving and backup, high computing appliances, and enterprise platforms.
The server’s flexible, dual-node design allows the system to be configured with varying densities. In addition, its screw-less HDD carriers helps to significantly reduce the time that is required to install one drive into the carrier. Other important features include a robust external cable management arm to support hot-swappable disks and enable non-stop business operations. The QuantaPlex T21P-4U also provides businesses with visible disk status indicators, which enable service engineers to assess disk status without opening the top cover. Flexible OCP LAN mezzanine cards support a wide range of networking options, and disks individually power on and off to support management of energy consumption.
QuantaPlex T21P-4U Specifications
- Processor: (2) Intel Xeon processor E5-2600 v3 product family, TDP up to 135W
- Chipset: Intel C610
- Memory: (16) DIMM per node, up to 2133MHz, LRDIMM and RDIMM
- Form Factor: 4U Rack Mount
- Dimensions (WxHxL): 17.6” x 6.9” x 35.9”
- Storage Controller: Wellsburg PCH RSTe
- Expansion Slot:
- (1) PCIe Gen3 x8 HHHL
- (1) OCP PCIe Gen3 x8 LAN Mezz
- (1) PCIe Gen3 x8 riser slot 2 HHHL or SAS Mezz
- (1) PCIe Gen3 x16 riser slot 3 FHHL
- Storage:
- SKU 1: 2 MBs with 70x 3.5″/2.5” hot plug
- SKU 2: 1 MB with 78x 3.5″/2.5” hot plug
- Front I/O: Power/ID/Reset Buttons, LEDs
- Power Supply: Redundant 2+2 PSU (1,200W, 100V-240V, Platinum)
- Fans: (4) 8056 + (1) 6056 dual-rotor fans, support one rotor failed redundancy
- System Management: IPMI v2.0 Compliant, on board “KVM over IP” support
- Operating Environment:
- Operating temperature: 5°C to 35°C (41°F to 95°F)
- Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
- Operating relative humidity: 50% to 85%RH.
- Non-operating relative humidity: 20% to 90%RH
- Weight: 49.45Kg(w/o HDD), ~130Kg(w/ 78xHDD)
- Network controller:
- Dual GbE ports Intel I350 LOM
- (1) Dedicated management 10/100/1000 port
- Option:
- QCT Intel I350 dual-port OCP mezzanine
- QCT Intel X540 dual-port 10GbE BASE-T OCP mezzanine
- QCT Intel 82599ES dual-port 10G SFP+ OCP mezzanine
- QCT Mellanox CX3PRO 10G SFP+ OCP mezzanine with RDMA support
- Onboard Storage:
- (2) 2.5″ hot-plug SSD
- (1) SATADOM
- Video: ASPEED AST2400 8MB DDR3 video memory
- Rear I/O:
- (2) USB 3.0 ports
- (1) VGA port
- (2) RS232 serial port
- (2) GbE RJ45 ports
- (1) GbE RJ45 management port
- TPM: Yes (TPM 2.0/1.2, LPC)

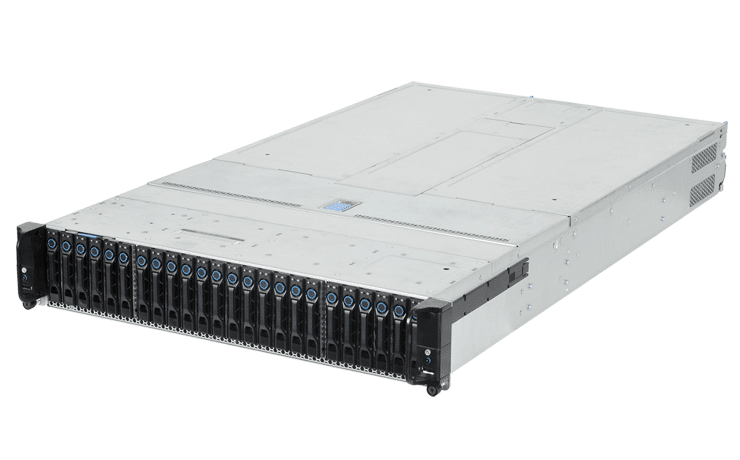

QuantaPlex T21SR-2U
The QuantaPlex T21SR-2U is the company’s new generation 2U two-node cluster-in-a-box server based on Intel Xeon processor E5 v3 product family. Two server nodes are clustered using a PCIe interconnection or 10Gb and share up to 24 disk drives in a 2U chassis. Interconnection between the server nodes use the mid-plane, allowing the other server board to take control if one server board fails while gaining full access to HDD and front end host I/O to keep the system online and running. In addition, the QuantaPlex T21SR-2U uses a backup battery unit (BBU) as data vaulting solution, which provides up to 120 seconds of power for each node after a power failure. The server is also designed to help software developers by backing up data in memory to local flash before a graceful shutdown.
QuantaPlex T21SR-2U Specifications
- Processor: Intel Xeon processor E5-2600 v3 product family
- Chipset: Intel C610
- Memory: (16) DIMM per node, up to 2133MHz, LRDIMM and RDIMM
- Form Factor: 2U Rack Mount, Dual Clustered Node
- Dimensions W x H x D: 17.48 x 3.44 x 31.1
- Storage
- Option 1:
- (12) 3.5″ hot-plug SAS HDD
- (2) 2.5″ hot-plug SSD HDD for OS installation per node
- USB Flash Module
- Option 2:
- (24) 2.5″ hot-plug SAS HDD
- 2.5″ hot-plug SSD HDD for OS installation per node
- USB Flash Module
- Option 1:
- Expansion Slot
- Node Interconnection
- PCIe Gen3 x8 for Intel Non-Transparent Bridge (NTB) per node
- PCIe Gen3 x8 for 10G Base-KR per node
- PCIe Gen3 x8 , LP MD-2 per node
- PCIe Gen3 x8 for SAS controller per node
- Front I/O: USB 2.0 ports
- Power Supply:
- (2) high efficiency hot-plug 1200W PSU, 80 Plus Platinum
- or (2) high efficiency hot-plug 1600W PSU, 80 Plus Platinum
- Fans: (4) System fans
- System Management:
- IPMI v2.0 Compliant, on board “KVM over IP” support
- Quanta Datacenter Manager 2.0/QDCM 2.0 (Optional)
- Operating Environment
- Operating temperature: 5°C to 35°C (41°F to 95°F)
- Non-operating temperature: -40°C to 70°C (-40°F to 158°F)
- Operating relative humidity: 20% to 85%RH
- Non-operating relative humidity: 20% to 90%RH
- Network Controller
- LOM
- Option 1:
- Intel® I350 dual-port 1 GbE per node
- Dedicated 10/100 management port per node
- Option 2:
- Intel® X540 dual-port 10GbE BASE-T per node
- Dedicated 10/100 management port per node
- Option 3:
- Intel® 82599ES dual-port 10G SFP+ per node
- Dedicated 10/100 management port per node
- Storage Controller:
- Onboard
- Intel® C610:
- (6) SATA 6Gb/s ports
- SATA RAID 0, 1, 10
- Onboard
- Video: Integrated AST2400 with 8MB DDR3 video memory
- Rear I/O
- (2) USB 3.0 ports
- (1) VGA port
- (1) RS232 serial Port
- (2) 1 GbE or 10G BASE-T RJ45 port
- (1) 10/100 RJ45 management port
- TPM: TPM (With TPM 2.0, TPM 1.2 Optioan)
QCT is an offshoot of Quanta Computer Inc. QCT provides a wide range of datacenter products such as servers, storage, network switches, integrated rack systems, and cloud solutions. Aside from products they also offer services such a engineering, integration, and optimization.
Availability
All QuantaPlex servers are now available for delivery.
