QNAP has announced the immediate availability of two new enclosure solutions: the TL-D800C, an 8-bay desktop model, and the TL-R1200C-RP, a 12-bay rackmount with redundant power. Both new enclosures feature USB 3.2 Gen 2 Type-C JBOD and can be used for expanding a QNAP NAS storage capacity. They also feature cross-platform file sharing and high flexibility, so it can act as a high-efficiency and intuitive storage expansion option. With the TL-D800C and TL-R1200C-RP, users can set RAID parameters and create a storage pool via the QTS Storage and Snapshots apps when used with NAS solutions, or as an NAS external storage device.
QNAP has announced the immediate availability of two new enclosure solutions: the TL-D800C, an 8-bay desktop model, and the TL-R1200C-RP, a 12-bay rackmount with redundant power. Both new enclosures feature USB 3.2 Gen 2 Type-C JBOD and can be used for expanding a QNAP NAS storage capacity. They also feature cross-platform file sharing and high flexibility, so it can act as a high-efficiency and intuitive storage expansion option. With the TL-D800C and TL-R1200C-RP, users can set RAID parameters and create a storage pool via the QTS Storage and Snapshots apps when used with NAS solutions, or as an NAS external storage device.
TL-D800C and TL-R1200C-RP both support remote file transfers, allowing for speedy and seamless data migration. When combining this functionality with the enclosure’s plug and play feature, a TL USB JBOD moved to a different location will be able to instantly work with a host device running on the same operating system. This creates an effective and simple data migration process. Moreover, you can configure each disk as an individual external storage space then use it as a removable drive.

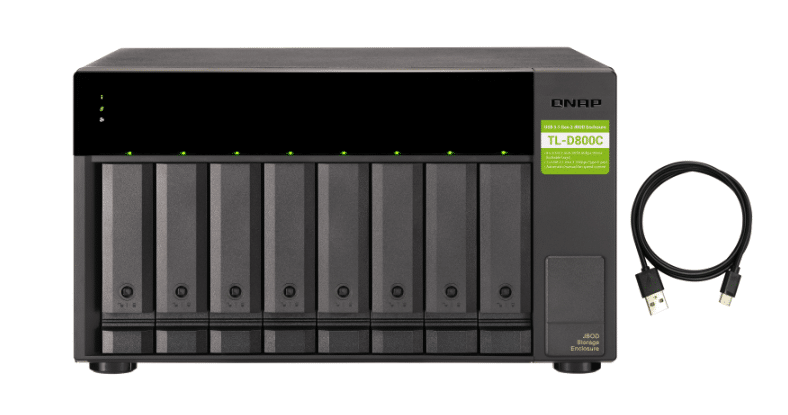

QNAP TL-D800C Specifications
| Audio Alert On/Off Switch | Yes |
| Form Factor | Tower |
| Host Interface | 1 x USB 3.2 Gen 2 Type-C |
| LED Indicators | HDD 1-8, Status, Link, Fan error |
| Buttons | Power switch |
| Dimensions (HxWxD) | 7.41 × 12.96 × 11.08 inch |
| Weight (Net) | 13.62 lbs |
| Weight (Gross) | 16.62 lbs |
| Max. number of HDDs/SSDs supported | 8 x 3.5-inch SATA 6Gb/s |
| Hard Drive Type | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W PSU, 100 – 240V |
| Power Consumption: Operating Mode, Typical | 48.4 W |
| Fan Mode Switch | (Auto, high, medium, low) |
| Fan | 2 x 120mm, 12VDC |
| Sound Level | 26.2 db(A) |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |

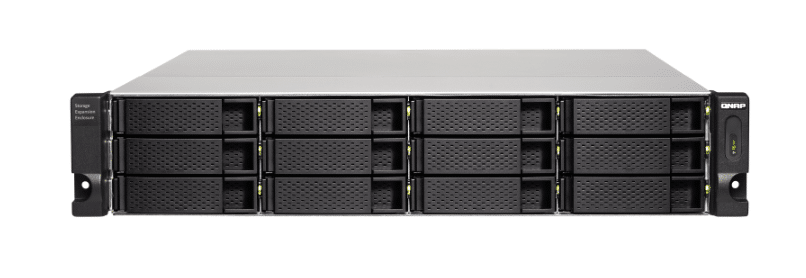

QNAP TL-R1200C-RP Specifications
| Audio Alert On/Off Switch | |
| Form Factor | 2U Rackmount |
| Host Interface | 1 x USB 3.2 Gen 2 Type-C |
| LED Indicators | HDD 1-12, Status, Link, Fan error |
| Buttons | Power switch |
| Dimensions (HxWxD) | 3.49 × 18.98 × 22.15 inch |
| Weight (Net) | 24.32 lbs |
| Weight (Gross) | 31.5 lbs |
| Max. number of HDDs/SSDs supported | 12 x 3.5-inch SATA 6Gb/s |
| Hard Drive Type | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W PSU, 100 – 240V |
| Power Consumption: Operating Mode, Typical | 82.26 W |
| Fan Mode Switch | (Auto, high, medium, low) |
| Fan | 2 x 70mm, 12VDC |
| Sound Level | 33.4 db(A) |
| System Warning | Buzzer |
