QNAP has launched the TS-364, a new 3-bay RAID5 NAS, outfitted with M.2 PCIe Gen3 NVMe SSD slots and 2.5GbE connectivity. The new QNAP NAS is designed for home/office environments, supporting light virtualization/containers and HDMI output. It’s ideal for centralized storage, backup, file sharing, and multimedia use cases and features the usual suite of NAS applications from QNAP to help boost productivity and the user entertainment experience.
QNAP has launched the TS-364, a new 3-bay RAID5 NAS, outfitted with M.2 PCIe Gen3 NVMe SSD slots and 2.5GbE connectivity. The new QNAP NAS is designed for home/office environments, supporting light virtualization/containers and HDMI output. It’s ideal for centralized storage, backup, file sharing, and multimedia use cases and features the usual suite of NAS applications from QNAP to help boost productivity and the user entertainment experience.

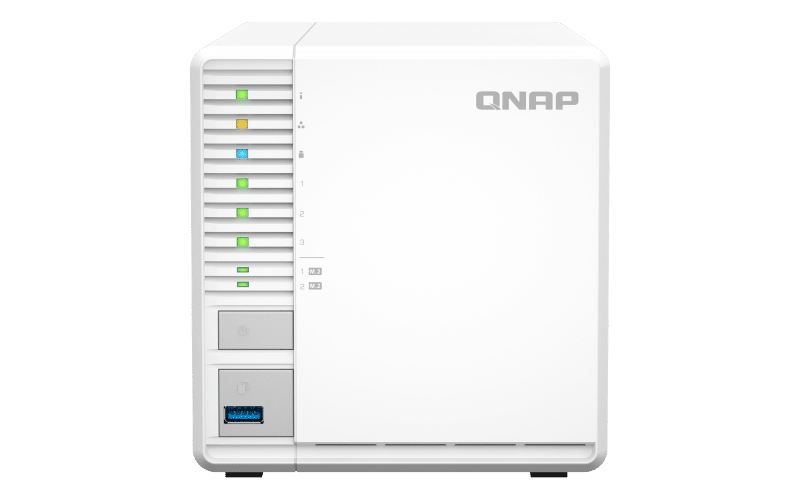

QNAP TS-364 – It’s Three Bays!
Powered by an Intel Celeron N5105/N5095 quad-core 4-thread processor (with burst up to 2.9 GHz), the TS-364 features an Intel AES-NI encryption engine and 4GB of DDR4 memory. Moreover, it supports cache acceleration and Qtier for improved performance, as well as Edge TPU for AI image recognition. For connectivity, the TS-364 comes equipped with a 2.5GbE port, one USB 3.2 Gen 1 (5Gbps) port, and two USB 3.2 Gen 2 (10Gbps) ports. Users can also increase capacity via QNAP’s TL and TR storage expansion enclosures.
Like all of their NAS solutions, the TS-364 is managed by the company’s latest QTS 5.0 operating system, featuring apps such as File Station, Hybrid Backup Sync, Virtualization Station, Container Station, and QVR Elite, the latter of which helps deploy smart surveillance systems. Those using it for the home will have a range of multimedia applications (like Plex), streaming capabilities, and a built-in HDMI port.
Overall it’s a pretty robust package for a small box. A three-bay NAS isn’t entirely new but it’s certainly uncommon. The extra drive bay compared to a traditional two-bay NAS will net you double the capacity, albeit without any additional RAID resiliency.
QNAP TS-364 Specifications
| CPU | Intel® Celeron® N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit | Yes |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | Yes |
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 16 GB (2 x 8 GB) |
| Memory Slot | 2 x SO-DIMM DDR4
When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots. |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 3 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drivesAn optional 2.5″ drive tray base (TRAY-25-NK-BLK03) is needed to install a 2.5″ SSD/HDD |
| Hot-swappable | Yes |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x2 slots |
| SSD Cache Acceleration Support | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 1 |
| Wake on LAN (WOL) | Yes |
| Jumbo Frame | Yes |
| USB 3.2 Gen 1 port | 1 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
| HDMI Output | 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz) |
| Form Factor | Tower |
| LED Indicators | System Status, LAN, USB, HDD1~3, M.2 SSD1~2 |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 5.59 × 5.91 × 10.24 inch |
| Weight (Net) | 36.16 lbs |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 65W adapter, 100 – 240V |
| Power Consumption: Operating Mode, Typical | 32.8 W
Tested with drives fully populated. |
| Fan | 1 x 92mm, 12VDC |
| Sound Level | 20.5 db(A) |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 1500 |
QNAP TS-364 Availability
The QNAP TS-364 is available now.
