QNAP TS-873AeU NAS Series Launched

by Lyle Smith
QNAP TS-873AeU NAS Series

QNAP has announced the 2U short-depth rackmount TS-873AeU NAS series (models TS-873AeU single power supply and TS-873AeU-RP redundant power supply) equipped with high-performance and energy-efficient AMD Ryzen Embedded V1000 series V1500B 4-core/8-thread, 2.2GHz processors.

QNAP has announced the 2U short-depth rackmount TS-873AeU NAS series (models TS-873AeU single power supply and TS-873AeU-RP redundant power supply) equipped with high-performance and energy-efficient AMD Ryzen Embedded V1000 series V1500B 4-core/8-thread, 2.2GHz processors.

The QNAP TS-873AeU series is designed to handle resource-demanding applications and tasks, including virtual machines, intensive multi-user access, or hybrid cloud applications. QNAP says that, as a result, this makes the new rackmount NAS a cost-efficient solution for businesses that depend on virtualization or VDI applications.

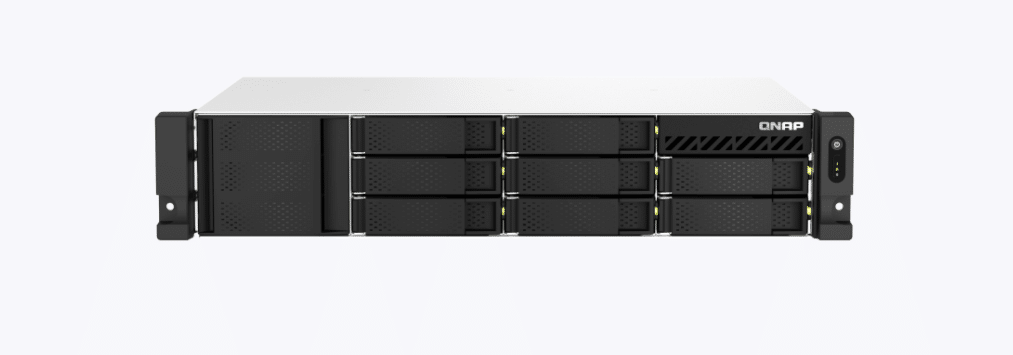

QNAP TS-873AeU NAS Series front

With a depth design of 11.7 inches, the new 2U rackmount TS-873AeU series is a fairly compact solution, which makes it great for smaller racks, wall-mount AV rack cabinets, and network rack cabinets. The new QNAP NAS can also be easily deployed in locations like offices, audiovisual rooms, and for applications such as security surveillance recording.

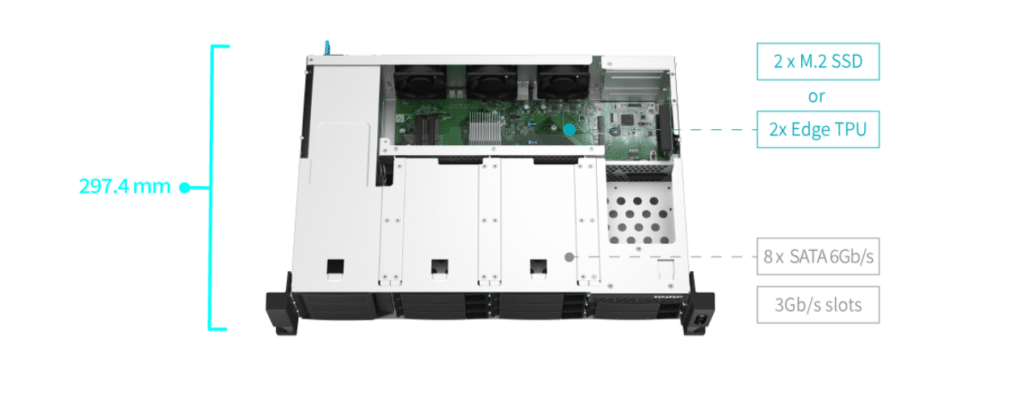

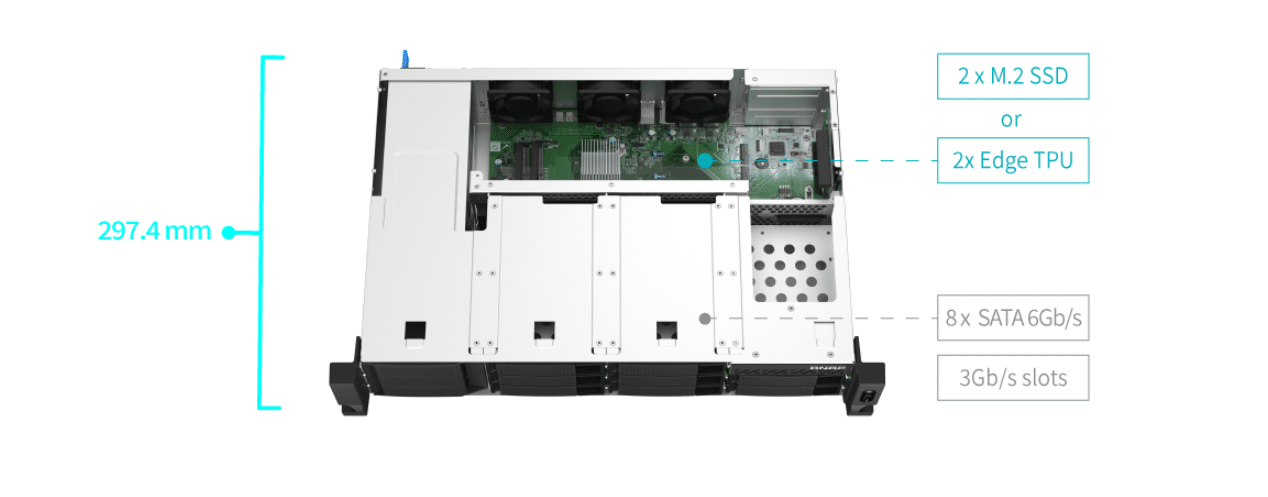

For connectivity, the TS-873AeU series is equipped with two 2.5GbE RJ45 LAN ports, with 5GbE connectivity attainable via Port Trunking. Also available are two M.2 PCIe Gen 3×1 slots for SSD caching or SSD storage pools to improve performance overall performance (or Edge TPU for AI image recognition). Further flexibility can be added by populating the PCIe Gen3x8 slot with 25/10GbE network cards, M.2 SSD NVMe cards, or Fibre Channel cards.

QNAP TS-873AeU NAS Series

The QNAP TS-873AeU can be outfitted with up to 64GB of DDR4 SODIMM RAM (4GB standard) and supports 8 x 3.5-inch SATA (6Gb/s, 3Gb/s) drives.

QNAP TS-873AeU NAS series Key Specifications

  • TS-873AeU-4G (Single Power Supply model): AMD Ryzen V1500B 4 cores/8 threads 2.2 GHz processor, 4 GB DDR4 SODIMM (up to 64 GB), 250 W Single Power Supply
  • TS-873AeU-RP-4G (Redundant Power Supplies model): AMD Ryzen V1500B 4 cores/8 threads 2.2 GHz processor, 4 GB DDR4 SODIMM (up to 64 GB), 300 W Redundant Power Supplies
  • 2U rackmount design, also supports DDR4 ECC memory (up to 64GB), hot-swappable 2.5-inch/3.5-inch SATA 6 Gb/s drives, 2 x 2.5GbE Gigabit RJ45 ports, 2 x M.2 PCIe Gen 3 x 1 slots, 1 x PCIe Gen 3 x 8 slot, 4 x USB 3.2 Gen 2 (10Gbps) ports (2 x Type-A, 2 x Type-C)

QNAP TS-873AeU NAS Series Detailed Specifications

CPU AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor
CPU Architecture 64-bit x86
Floating Point Unit  Yes
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding Optional via a PCIe graphics card
System Memory 4 GB SODIMM DDR4 (1 x 4 GB)
Maximum Memory 64 GB (2 x 32 GB)
Memory Slot 2 x SODIMM DDR4
Support ECC memoryFor dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 8 x 3.5-inch SATA 6Gb/s, 3Gb/s

The system is shipped without HDD.

Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable  Yes
M.2 Slot 2 x M2 2280 (PCIe Gen3 x 1)
SSD Cache Acceleration Support  Yes
GPU pass-through  Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (also support 10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via a network adapter
10 Gigabit Ethernet Port Optional via a network adapter
Wake on LAN (WOL) Only the 2.5GbE port
Jumbo Frame  Yes
PCIe Slot 1 x PCIe Gen3 x8
USB 3.2 Gen 2 (10Gbps) Port 4 (2 x Type A, 2 x Type C)
HDMI Output Optional via a PCIe graphics card
Form Factor 2U Rackmount
LED Indicators HDD 1-8, Status, LAN, USB, Power
Buttons Power, Reset
Dimensions (HxWxD) 3.5 × 18.98 × 11.71 inch
Weight (Net) 16.78 lbs
Weight (Gross) 22.49 lbs
Operating temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W PSU, 100 – 240V
Fan 3 x 60mm, 12VDC
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 2000

QNAP TS-873AeU NAS Series Availability

The QNAP TS-873AeU NAS series is available now.
