Home Enterprise QNAP TS-x64U 4-Bay/12-Bay NAS Launched

QNAP TS-x64U 4-Bay/12-Bay NAS Launched

by Lyle Smith

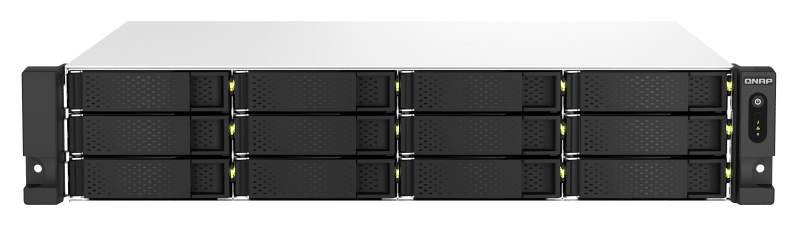

QNAP TS-1264U-RP-4G

QNAP has launched the new TS-x64U NAS line featuring PCIe Gen3 expandability, 2.5GbE connectivity, and 4K HDMI output. Available in both 4 and 12-bay models, the TS-x64U supports QM2 cards (M.2 SSD caching or Edge TPU for AI image recognition) and is ideal for virtual machine use cases and smooth multimedia streaming. It’s also optimized for data storage, backup, sharing, disaster recovery, and hybrid cloud environments.

QNAP has launched the new TS-x64U NAS line featuring PCIe Gen3 expandability, 2.5GbE connectivity, and 4K HDMI output. Available in both 4 and 12-bay models, the TS-x64U supports QM2 cards (M.2 SSD caching or Edge TPU for AI image recognition) and is ideal for virtual machine use cases and smooth multimedia streaming. It’s also optimized for data storage, backup, sharing, disaster recovery, and hybrid cloud environments.

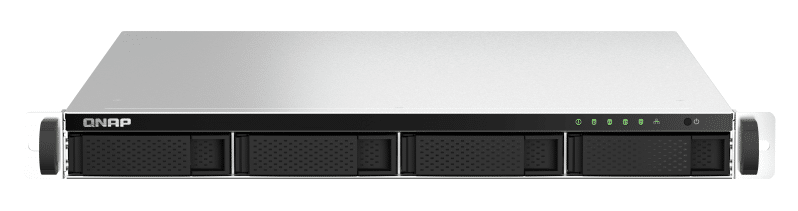

QNAP TS-464U-4G

Powered by an Intel Celeron N5105/ N5095 quad-core 4-thread processor (burst up to 2.9 GHz), the TS-x64U features Intel’s AES-NI encryption engine and can be outfitted with up to 16GB of DDR4 dual-channel memory (4GB comes standard). As indicated above, the TS-x64U also comes equipped with a PCIe Gen3 slot, which allows users to add more flexibility to the QNAP NAS such as installing a 10GbE network card, a QM2 card for NVMe SSD caching or Qtier, or a Coral M.2 Accelerator for AI image recognition.

For connectivity, the TS-x64U features two 2.5GbE ports, two USB 2.0 (480Mbps), and two USB 3.2 Gen 2 (10Gbps) ports. The QNAP NAS can scale as your data needs grow via TL and TR storage expansion enclosures.

The TS-x64U is managed by QNAP’s QTS 5.0 NAS operating system, which offers a comprehensive range of NAS home/business applications. These include:

  • HBS (Hybrid Backup Sync) realizes efficient local/remote/cloud backup jobs
  • Block-based snapshots make data protection and recovery easier and effectively mitigate the threats of ransomware
  • HybridMount provides cloud storage gateways that integrate private and public cloud storage and enable local caching
  • Virtualization Station and Container Station enables light virtualization applications
  • QVR Elite helps deploy a cutting-edge smart surveillance system
  • KoiMeeter provides a complete cross-platform video meeting and wireless presentation solution.

For those looking to use the TS-x64U as a home media center, QTS also supports multimedia applications (such as Plex), streaming capabilities, and has a built-in HDMI port.

QNAP TS-1264U-RP-4G

The three models from the new QNAP NAS line are the TS-464U-4G (1U, 4x 3.5-inch SATA 6Gb/s drive bays, 4 GB DDR4 memory), TS-464U-RP-4G (1U, 4x 3.5-inch SATA 6Gb/s drive bays, 4 GB DDR4 memory, redundant power supplies) and TS-1264U-RP-4G (2U, 12x 3.5-inch SATA 6Gb/s drive bays, 4 GB DDR4 memory, redundant power supplies).

QNAP TS-464U-4G / TS-464U-RP-4G / TS-1264U-RP-4G Specifications

CPU Intel® Celeron® N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz
CPU Architecture 64-bit x86
Graphics Processor Intel® UHD Graphics
Floating Point Unit Yes
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding  Yes
System Memory 4 GB SO-DIMM DDR4 (1 x 4 GB)
Maximum Memory 16 GB (2 x 8 GB)
Memory Slot 2 x SO-DIMM DDR4

When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots.

Flash Memory 4GB (Dual boot OS protection)
Drive Bay 12 x 3.5-inch SATA 6Gb/s, 3Gb/s (TS-1264U-RP-4G)

4 x 3.5-inch SATA 6Gb/s, 3Gb/s (TS-464U-4G)

Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable Yes
M.2 Slot Optional via a PCIe adapter
SSD Cache Acceleration Support Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (also support 10M)
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe Slot 1
Slot 1: PCIe Gen 3 x2
USB 2.0 port 2
USB 3.2 Gen 2 (10Gbps) Port 2 x Type A USB3.2 Gen2
HDMI Output 1, HDMI 1.4b
Form Factor 2U Rackmount
LED Indicators HDD 1-12, Status, LAN, Expansion, Power
Buttons Power, Reset
Dimensions (HxWxD) 3.49 × 18.98 × 16.69 inch
Weight (Net) 20.79 lbs
Weight (Gross) 31.06 lbs
Operating temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 300W (x2), 100-240V
Fan 2 x 80mm, 12VDC
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 1500

QNAP TS-464U-4G

QNAP TS-464U-RP-4G

QNAP TS-1264U-RP-4G
