SMART Storage Systems Announces 50 Writes-per-Day MLC Flash Optimus Ultra+ Enterprise SSDs

by Mark Kidd

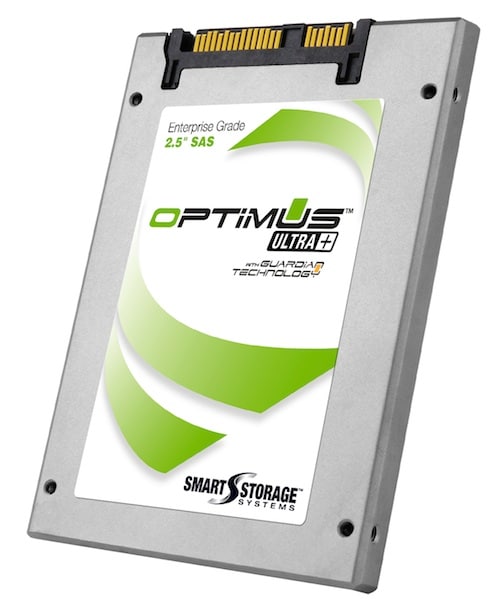

SMART Storage Systems has announced a new lineup of Optimus Ultra+ MLC-based SSDs. According to SMART, these SSDs can achieve 50 drive writes per day with MLC flash to better compete with more expensive SLC flash for write-intensive storage applications. The Optimus Ultra+ leverages the Guardian Technology Platform, SMART Storage System’s proprietary suite of features and endurance enhancement.


SMART Storage Systems has announced a new lineup of Optimus Ultra+ MLC-based SSDs. According to SMART, these SSDs can achieve 50 drive writes per day with MLC flash to better compete with more expensive SLC flash for write-intensive storage applications. The Optimus Ultra+ leverages the Guardian Technology Platform, SMART Storage System’s proprietary suite of features and endurance enhancement.

The Optimus Ultra+ is a Serial Attached SCSI (SAS) SSD specified for a sustained transfer rate of 500 MB/s in dual port and 1GB/s in wide port operation, and random read/write performance of 100K/60K IOPS. The Optimus Ultra+ joins the Optimus (10 drive writes), and Optimus Ultra (25 drive writes) and in available in 200-800GB capacities.

Optimus Ultra+ SAS SSD Specifications

  • Part Number: TXA2D20xxxGA9001 (9.5mm Height), TXA2E20xxxGA9001 (15mm Height)
  • Interface: SAS 6Gb/s
  • Interface Ports: Dual/Wide
  • Sustained Read/Write: 500/500 MB/s, 1GB/s sustained read Wide Port
  • Random Read/Write: 100K/60K IOPS
  • Capacity MLC: 100, 200, 400 (9.5mm Height), 800 GB (15mm Height)
  • Sector Sizes: 512, 520, 528 byte
  • Data Reliability: 1 unrecoverable error in 1017 bits read
  • Endurance: FlashGuard 50 full random drive writes/day
  • Data Fail Recovery: F.R.A.M.E. (Flexible Redundant Array of Memory Elements)
  • Power Fail Recovery: EverGuard Backup Power Circuitry
  • Data Path Protection: DataGuard Full Data Path Protection, T-10 DIF
  • Warranty: 5 years
  • Security: TCG Enterprise Compliant
  • Encryption: AES 256-bit
  • Vcc: 5V, – 5%/+10%
  • Active Consumption (Typ): 7W
  • Shock: 1000 g half-sine, 0.5 msec, 3 shocks along each axis X, Y, Z in each direction
  • Vibration: 2.17 g rms 7-800 Hz, 3 axes
  • Operating Temperature: 0°C to 70°C
  • Storage Temperature: -40°C to 90°C
  • Humidity: 5% to 95%, non-condensing, relative humidity
  • Altitude: 5,486 m (18,000 ft)
  • Length: 100.20 mm
  • Width: 69.85 mm
  • Height: 9.50 mm or 15 mm

Availability
The Optimus Ultra+ is now sampling and will have general availability later this year.
