Supermicro Announces New Solutions That Support Next-Gen Intel Processors and the NVIDIA Tesla M40 GPU Accelerator

Super Micro Computer has announced the availability of the industry’s widest range of GPU-enabled SuperServers, all of which are ready to support the recently unveiled NVIDIA Tesla M40 GPU Accelerator. Also announced by Supermicro is the release of their new Server Building Block Solutions that support the new Intel Xeon processor E3-1200 v5 family and Intel Xeon processor D-1500. Comprised of over 15 systems, 25 motherboards and 15 SuperChassis, the new family of servers, storage, MicroCloud and MicroBlade systems are designed for maximum density and performance per watt in the most demanding Enterprise, Data Center, Cloud and Embedded applications.

The Supermicro 1U 4x GPU (SYS-1028GQ-TR/-TRT), 2U 6x GPU (SYS-2028GR-TR/-TRH/-TRHT), 4U 8x GPU (SYS-4028GR-TR/-TRT), 4U/Tower 4x GPU (SYS-7048GR-TR) and 7U 20x GPU SuperBlade (SBI-7128RG-X/-F/-F2) systems offer businesses extensive configuration flexibility and best-of-class GPU density. In addition, the Supermicro’s GPU leverages an optimized cooling architecture in the 1U 4x GPU SYS-1028GQ-TR/-TRT, which allows the NVIDIA Tesla M40 accelerators to operate at a quoted sustained 1000W delivering up to 28 Teraflops of single precision performance for deep learning training applications.

Tesla M40 GPU Supported SuperServers Specifications:

1U 4x GPU (SYS-1028GQ-TR/-TRT) – supports 4x NVIDIA Tesla M40 GPUs, Dual Intel Xeon processor E5-2600 v3, up to 1TB ECC, up to DDR4 2133MHz; in 16x DIMMs, 4x PCI-E 3.0 x16 slots, 2x PCI-E 3.0 x8 (in x16) LP slot, dual port GbE LAN (-TR SKU), dual 10GBase-T (-TRT), 2x 2.5" hot-swap drive bays, 2x 2.5" internal drive bays, efficient airflow heavy duty counter-rotating fans with air shroud & optimal fan speed control, redundant 2000W Titanium Level (96%+) power supplies
2U 6x GPU (SYS-2028GR-TR/-TRH/-TRHT) – supports 6x NVIDIA Tesla M40 GPUs, dual Intel Xeon processor E5-2600 v3 family, 10x 2.5" Hot-swap SATA3 HDD Bays, 16x DIMM slots; up to 1TB DDR4 2133MHz reg. ECC memory, 4x PCI-E 3.0 x16 and 1x PCI-E 3.0 x8 slots, 2x GbE/10GBase-T (-TRT, -TRHT), 1x Video, 4x USB 3.0 (2 rear, 2 via header), 2x USB 2.0 (2 via header), Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port, redundant 2000W Platinum Level (94%+) power supplies
4U 8x GPU (SYS-4028GR-TR/-TRT) – supports 8x NVIDIA Tesla M40 GPUs, dual Intel Xeon processor E5-2600 v3 (up to 160W), up to 1.5TB ECC DDR4, 2133MHz in 24 DIMM slots, 24 2.5" hot-swap SAS2/SATA3 drive bays, 8 PCI-E 3.0 x16 slots (double-width), 2 PCI-E 3.0 x8 (in x16) slots, 1 PCI-E 2.0 x4 (in x16) slot, dual 1GbE/10GBase-T (-TRT), and four redundant 1600W Platinum Level (94%+) power supplies
4U/Tower 4x GPU (SYS-7048GR-TR) – supports 4x NVIDIA Tesla M40 GPUs, dual Intel Xeon processor E5-2600 v3 family, 8x 3.5" Hot-swap SATA HDD Bays, 3x 5.25" peripheral drive bays, 1x 3.5" fixed drive bay, 16x DIMM slots; up to 1TB DDR4 2133MHz reg. ECC memory, 4x PCI-E 3.0 x16 (4 GPU cards opt.), 2x PCI-E 3.0 x8 (1 in x16), and 1x PCI-E 2.0 x4 (in x8) slot, 2x GbE, 1x Video, 2x COM/Serial, 5x USB 3.0, 4x USB 2.0, Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port, redundant 2000W Titanium Level (96%+) power supplies
7U SuperBlade (SBI-7128RG-X/-F/-F2) – 20x NVIDIA Tesla M40 GPUs in 10 Blade Servers, each supports Dual Intel Xeon processor E5-2600 v3 family, up to 512GB DDR4 2133MT/s ECC RDIMM in 8 DIMM slots, 1x 2.5" SSD, 1 SATADOM, FDR 56Gb/s InfiniBand switches, 1 and 10Gb/s Ethernet switches, redundant chassis management module (CMM) and Titanium Level (96%+) 3200W and Platinum Level (95%) 3000W/2500W (N+N or N+1 redundant) power supplies with cooling fans.

Supermicro X11 Systems, Motherboards and Chassis Solutions optimized for Intel Xeon Processor E3-1200 v5 Family Specifications:

1U SuperServer Solutions – SYS-5019S-L, SYS-5019S-WR, SYS-5019S-ML, SYS-5019S-M, SYS-5019S-MN4, SYS-5019S-MR
0.1U MicroBlade – MBI-6219G-T – 2x independent nodes per module, supporting Intel® Xeon® Processor E3-1200 v5 with up to 64GB DDR4 2133MT/s ECC UDIMM per node. 28/56 nodes in 3U/6U enclosure, sharing 10G/1GbE SDN switches and redundant Titanium Level high-efficiency (96%) power supplies.
3U 8-Node/12-Node MicroCloud Solutions – SYS-5039MS-H8TRF, SYS-5039MS-H12TRF
Mid-Tower SuperServer® – SYS-5039D-i
X11 Motherboards – 1U form factor optimized with Quicksynch Video, VHD, legacy PCI, SAS3, NVMe, 10GbE features – X11SSH-F/-LN4F, X11SSL/-F, X11SSM/-F, X11SSA-F, X11SSI-LN4F, X11SSL-CF/-NF, X11SSH-TF/-CTF, X11SSW-F
X11 Compatible Chassis – CSE-510-203B, CSE-512-260B, CSE-514-R400C, CSE-813MFTQ, CSE-113MTQ, CSE-731D-300B, CSE-116AC2, CSE-213AC, CSE-514-R400W, CSE-515-505, CSE-116AC2/TQ-R706WB, CSE-825TQ-R500WB, CSE-113MTQ, CSE-825TQC-R740LPB

Supermicro Systems and Motherboard Solutions optimized for Intel Xeon Processor D-1500 Family Specifications:

0.1U MicroBlade MBI-6218G-T41X – 2x independent nodes per module, supporting Intel® Xeon® Processor D-1541 with up to 128GB DDR4 2133MT/s ECC RDIMM per node, 28/56 nodes in 3U/6U enclosure, sharing 10G/1GbE SDN switches and redundant Titanium Level high-efficiency (96%) power supplies.
0.2U MicroBlade MBI-6118G-T41X – 1x node per module, supporting Intel® Xeon® Processor D-1541 with up to 128GB DDR4 2133MT/s ECC RDIMM per node, 14/28 nodes in 3U/6U enclosure, sharing 10G/1GbE SDN switches and redundant Titanium Level high-efficiency (96%) power supplies.
1U SuperServer – SYS-5018D-FN4T
3U 8-Node MicroCloud – 5038MD-H8TRF
Mini-Tower Server – SYS-5028D-TN4T Optimized for Cloud and Virtualization, Network Security Appliance, NAS Servers. Supports Intel® Xeon® processor D-1540 SoC, 8 cores, 45W
X10 Xeon-D Motherboards up to 128GB DDR4 2400MHZ, 16 Core, M.2, 6 SATA3, with 12V DC support in mini-ITX form factor – X10SDV-F, X10SDV-TLN4F, X10SDV-8C-TLN4F, X10SDV-8C+-LN2F, X10SDV-6C-TLN4F, X10SDV-6C+-TLN4F, X10SDV-4C-TLN4F, X10SDV-4C-TLN2F, X10SDV-16C+-TLN4F, X10SDV-12C-TLN4F

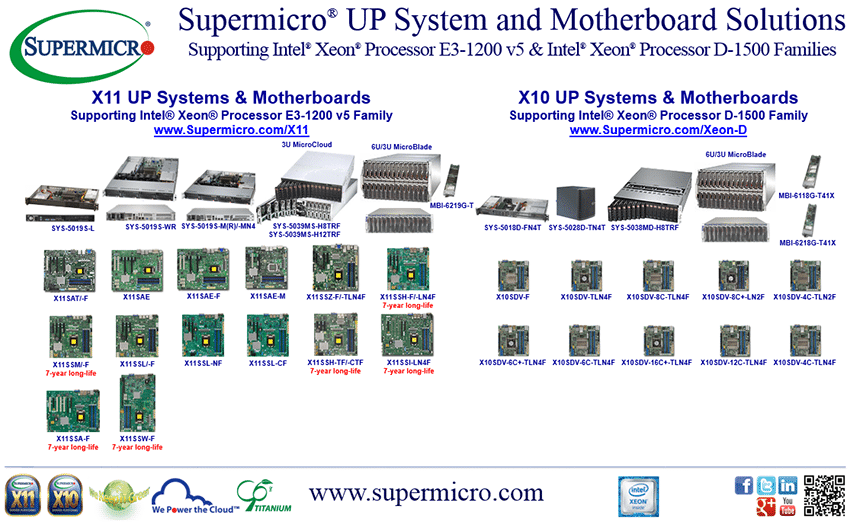

Supermicro UP Solutions Based on Intel Xeon Processor E3-1200 v5 and Intel Xeon Processor D-1500

Supermicro Solutions based on Intel Xeon-D processors

Supermicro GPU-Optimized Supercomputing Server Solutions
