Supermicro Showcases H13 AMD-Based Servers at Computex 2024

At Computex 2024, Supermicro showed off a lot of hardware, and front and center was the H13 AMD-based generation of servers. They support everything from Ryzen 7000 to the latest EPYC Turin line and AI drivers including AMD Instinct and NVIDIA Accelerators.

Product Lineup

H13 GPU Optimized Systems

Models: AS-8125GS-TNHR, AS-8125GS-TNMR2
Quick specs:

GPUs: Up to 8 full-performance GPUs per system.
Networking: Dedicated 1:1 400G networking per GPU.
Memory: Up to 6TB of DDR5 memory.
Applications: Ideal for large-scale AI models, AI-fused HPC applications, and business intelligence and analytics.

The Supermicro AS-8125GS-TNMR2 and AS-8125GS-TNHR are both 8U GPU servers designed for high-performance applications, but they have key differences tailored to specific needs.

The AS-8125GS-TNMR2 stands out with its AMD Instinct MI300X GPUs, each boasting 192GB of HBM3 memory. Conversely, the AS-8125GS-TNHR is equipped with NVIDIA HGX H100 GPUs, leveraging NVLink and NVSwitch for efficient high-speed inter-GPU communication, which is ideal for AI and deep learning applications. While both systems are powerful, the NVIDIA HGX H100 GPUs are generally considered more potent for AI-specific tasks due to their specialized architecture and extensive software support. In contrast, the AMD MI300X GPUs offer a balanced approach focusing on energy efficiency and integrated HBM3 memory.

This blend of cutting-edge GPU technology ensures that each server is optimized for specific, high-demand computational tasks, offering flexibility and unmatched performance for any data center.

Lastly, both systems support dual AMD EPYC 9004 series processors and up to a generous 6TB of DDR5 memory. However, the AS-8125GS-TNMR2 includes features designed specifically for environments needing higher memory bandwidth and efficiency, such as direct RDMA support and a high-density design to reduce deployment time for large-scale AI models.

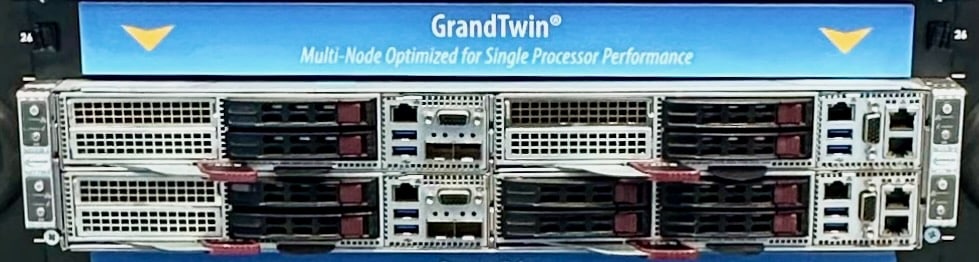

H13 GrandTwin Systems

Models: AS-2115GT-HNTR, AS-2115GT-HNTF
Quick specs:

Form Factor: 2U 4-node system.
Storage: Configurable up to six 2.5″ NVMe/SATA drives per node.
I/O: Field serviceable from the cold aisle with flexible AIOM/OCP 3.0 networking options.
Applications: HCI, HPC, CDN, cloud computing, and big data analytics.

The Supermicro AS-2115GT-HNTR and AS-2115GT-HNTF are part of the versatile 2U 4-Node GrandTwin family, engineered for high-performance computing and multi-access edge computing (MEC) applications. These servers are perfect for scenarios demanding robust computational power and flexibility.

The AS-2115GT-HNTR is tailored for rear I/O configurations, featuring up to six hot-swap 2.5″ NVMe/SATA drives per node. This model shines in environments where rear access is crucial, such as high-performance computing (HPC), cloud gaming, and multi-purpose content delivery networks (CDNs). Single-socket AMD EPYC 9004 series processors power each node with a thermal design power (TDP) of up to 290W and offer 12 DIMM slots supporting up to 3TB of DDR5 memory. Dual OCP 3.0 AIOM expansion slots enhance networking flexibility, making the HNTR a powerhouse for demanding back-end tasks.

Conversely, the AS-2115GT-HNTF is designed for front-access configurations, providing up to four hot-swap 2.5″ NVMe/SATA drives per node. This design is ideal for applications prioritizing easy front-end serviceability, including high-availability cache clusters, telco edge clouds, and mission-critical web applications. Like the HNTR, it supports single-socket AMD EPYC 9004 series processors and includes 12 DIMM slots for up to 3TB of DDR5 memory. The front-access design simplifies maintenance and upgrades, ensuring minimal disruption and maximum uptime for critical operations.

H13 Flash Storage Systems

Purpose-built all-flash storage solutions optimized for petascale storage needs:

Storage: All-Flash E3.S drives for maximum density.
Performance: High IOPS and low latency for data-intensive applications.
Use Cases: Ideal for data centers requiring high-performance storage solutions.

The H13 Flash Storage Systems are specifically engineered to meet petascale environments’ demanding data storage requirements. Leveraging advanced flash technology, they deliver unparalleled performance, capacity, and reliability. These systems are optimized for data center efficiency, offering high-density storage solutions that manage vast data volumes with swift access and processing.

Supermicro Storage A+ ASG-1115S-NE316R Front

The H13 Flash Storage Systems are highlighted by their E3.S drive configurations. Supermicro chooses these SSDs due to their exceptional storage density, allowing data centers to maximize their storage capacity within a limited physical footprint. Moreover, their high IOPS and low latency make them perfect for data-intensive applications such as real-time analytics, database management, and virtualized environments, significantly enhancing performance and operational efficiency.

These systems benefit industries like financial services, healthcare, scientific research, and enterprise IT. They support a wide range of applications, including big data analytics, AI, and machine learning, where rapid data storage and retrieval are crucial. By integrating H13 Flash Storage Systems, data centers achieve superior performance, scalability, and reliability, catering to modern, data-driven operations.

H13 Hyper Systems

Models: AS-1125HS-TNR, AS-2025HS-TNR, AS-2125HS-TN
Quick specs:

Processors: Dual AMD EPYC™ 9004 Series processors.
Memory: 24 DIMMs for up to 6TB of DDR5 memory.
Expansion: PCIe 5.0 slots for accelerators and CXL 1.1+ peripheral support.
Applications: Enterprise servers, hyper-converged storage, AI training/inferencing, and big data analytics.

Supermicro’s H13 Hyper Systems are designed to deliver top-tier performance and flexibility for various enterprise applications. With their dual AMD EPYC 9004 Series processors and support for up to 24 DIMMs and 6TB of DDR5 memory, the H13 Hyper Systems are built to easily handle memory-intensive tasks. Additionally, including PCIe 5.0 slots allows for integrating accelerators and CXL 1.1+ peripherals, ensuring that the H13 Hyper Systems can be configured to meet specific performance requirements.

AS-1125HS-TNR

The AS-1125HS-TNR is a 1U server that combines high performance with a compact form factor. Despite its smaller size, this server does not compromise on power. It features dual AMD EPYC 9004 Series processors and up to 24 DIMMs for a total of 6TB DDR5 memory.

The AS-1125HS-TNR is particularly suited for applications such as hyper-converged storage and enterprise server deployments. Its efficient design can deliver significant performance benefits without taking up too much rack space. The system’s PCIe 5.0 slots also ensure compatibility with the latest accelerators and peripherals, making it a versatile choice for various high-performance applications.

AS-2025HS-TNR

The AS-2025HS-TNR is a 2U server that expands on the capabilities of the 1U model by offering additional space for greater scalability and expansion. This system is perfect for data centers and enterprises requiring a balance of performance and expandability.

Equipped with dual AMD EPYC 9004 Series processors and the same generous memory support, the AS-2025HS-TNR excels in applications like AI training and inferencing, big data analytics, and hyper-converged infrastructure. The additional space in the 2U form factor allows for more PCIe 5.0 slots, allowing organizations to integrate multiple accelerators and peripheral devices to meet their diverse and demanding workload requirements.

AS-2125HS-TNR

The AS-2125HS-TNR is another 2U server in the H13 Hyper Systems lineup, designed to provide ultimate performance and flexibility for the most demanding enterprise applications. Like its counterparts, it features dual AMD EPYC 9004 Series processors and up to 6TB of DDR5 memory across 24 DIMM slots. This model is particularly well-suited for environments that require substantial computational power and memory capacity, such as AI training, inferencing, and big data analytics. The AS-2125HS-TNR’s extensive PCIe 5.0 support ensures it can accommodate a wide range of accelerators and peripherals, making it a future-proof solution for evolving enterprise needs.

H13 Hyper-U Systems

Models: AS-1115HS-TNR, AS-2015HS-TNR, AS-2115HS-TNR
Optimized for cloud-native workloads, these single-processor servers offer:

Cores: Up to 128 cores in a single socket.
Memory: Up to 12 channels with 24 DIMMs for up to 6TB of DDR5.
Storage: Flexible NVMe, SAS, and SATA3 options.
Applications: Ideal for enterprise servers, virtualization, AI inferencing, and software-defined storage.

The H13 Hyper-U Systems are specifically optimized for cloud-native workloads, providing high-performance solutions focused on scalability and efficiency. The primary difference between the H13 Hyper and H13 Hyper-U systems lies in their processor configurations and intended workloads.

While the H13 Hyper systems feature dual AMD EPYC 9004 Series processors (suitable for applications that require maximum processing power and memory capacity), the H13 Hyper-U systems are optimized for cloud-native workloads and use single processor configurations. As such, they focus on high core counts and efficiency in a streamlined configuration. This makes Hyper-U systems particularly well-suited for applications such as virtualization, AI inferencing, and software-defined storage, where high performance and scalability are essential.

AS-1115HS-TNR

The AS-1115HS-TNR is a 1U server designed to deliver maximum performance in a compact form factor. It supports a single AMD EPYC 9004 Series processor with up to 128 cores, providing powerful application processing capabilities. With support for up to 24 DIMMs and 6TB of DDR5 memory, this server is well-suited for virtualization, AI inferencing, and software-defined storage. The AS-1115HS-TNR also offers flexible storage options, including NVMe, SAS, and SATA3, allowing data centers to tailor their storage solutions to specific needs while maintaining high performance and density.

The AS-1125HS-TNR offers flexible drive bay configurations to suit various storage needs. By default, it includes eight front hot-swap 2.5″ drive bays supporting NVMe, SAS, or SATA drives. Users can expand this to 12 front hot-swap 2.5″ drive bays.

AS-2015HS-TNR and AS-2125HS-TNR

The AS-2015HS-TNR and AS-2125HS-TNR expand on the capabilities of the 1U model with a 2U form factor, providing additional space for enhanced scalability and expansion. The AS-2015HS-TNR and AS-2125HS-TNR feature dual AMD EPYC 9004 processors and 24 DIMM slots. However, the AS-2015HS-TNR supports up to 6TB of DDR5 memory at 4000MT/s with 2DPC, while the AS-2125HS-TNR supports up to 6TB at 4800MT/s with 1DPC.

Regarding storage, the AS-2015HS-TNR has 12 hot-swap 3.5″/2.5″ drive bays and 2 M.2 slots, whereas the AS-2125HS-TNR offers 24 fixed 2.5″ drive bays and 2 M.2 slots. Both systems provide similar PCIe configurations but differ significantly in memory and drive bay configurations. The AS-2125HS-TNR is generally more potent due to its higher memory speed and greater storage capacity, making it better suited for more demanding and scalable data center environments.

H13 CloudDC Systems

Models: AS-1015CS-TNR, AS-1115CS-TNR, AS-2015CS-TNR
Quick specs:

Processors: Single AMD EPYC 9004 Series processor.
Memory: Up to 12 DIMMs.
I/O: Up to 4 PCIe 5.0 x16 slots.
Serviceability: Toolless chassis design for easy maintenance.
Applications: Cloud computing, web servers, virtualization, and CDNs.

The H13 CloudDC Systems are tailored for rapid cloud deployment, offering robust performance and ease of maintenance for data centers and cloud environments. They are powered by single AMD EPYC 9004 Series processors, support up to 12 DIMMs, and feature 3TB to 6TB of DDR5 memory. They also offer up to 4 PCIe 5.0 x16 slots, providing flexibility for expansion and peripheral support, making these systems particularly suited for applications such as cloud computing, web servers, virtualization, and content delivery networks.

AS-1015CS-TNR and AS-1115CS-TNR

The AS-1015CS-TNR and AS-1115CS-TNR are compact 2U servers designed for high-efficiency cloud deployments. They support a single AMD EPYC 9004 Series processor with up to 12 DIMMs for a maximum of 3TB of DDR5 memory.

The AS-1015CS-TNR and AS-1115CS-TNR both feature PCIe 5.0 x16 slots and AIOM slots, but they differ significantly in their storage capabilities. The AS-1015CS-TNR has 4 hot-swap 3.5″ NVMe/SAS/SATA drive bays, 2 M.2 PCIe 3.0 x2 NVMe slots, and two optional 2.5″ peripheral bays. It also includes standard ports such as USB 3.0, VGA, and a COM port.

In contrast, the AS-1115CS-TNR offers a more extensive storage configuration with ten hot-swap 2.5″ NVMe/SAS/SATA drive bays and 2 M.2 PCIe 3.0 x2 NVMe slots. It also includes extra front USB 2.0 ports and the standard rear USB 3.0, VGA, and COM ports.

The AS-1015CS-TNR is better suited for applications needing larger individual storage drives. Its four hot-swap 3.5″ bays and optional peripheral bays make it a good choice for DNS, gateway servers, and firewall applications. The AS-1115CS-TNR, with its ten hot-swap 2.5″ bays and additional front USB ports, offers higher storage density and is more compact, ideal for web servers, CDN, edge nodes, and a value IaaaS cloud computing environment.

AS-2015CS-TNR

The AS-2015CS-TNR is a 2U server designed for greater scalability and storage flexibility. Similar to its 1U counterparts, it supports a single AMD EPYC 9004 Series processor and up to 12 DIMMs of DDR5 memory.

However, it offers more extensive storage capabilities with twelve hot-swap 3.5″ NVMe, SAS, and SATA drive bays. This model also includes four PCIe 5.0 x16 slots and two AIOM slots, providing ample expansion options for various high-performance applications. The AS-2015CS-TNR is ideal for large-scale cloud deployments, data center optimization, and demanding web applications, ensuring high performance and scalability for complex workloads.

H13 WIO Systems

Models: AS-1015SV-WTNRT, AS-1115SV-WTNRT, AS-2015SV-WTNRT
Quick specs:

Processors: Single AMD EPYC™ 8004 Series processor.
Memory: Up to 576GB DDR5-4800.
Storage: Up to 12 SATA/SAS or 6 NVMe drives.
Applications: Cloud services, enterprise edge, virtualization, and web servers.

The H13 WIO Systems are compact yet powerful 1U/2U servers designed to excel in virtualization and edge computing scenarios. Unlike the other H13 system, it is powered by a single AMD EPYC 8004 Series processor. The 8004 series is designed for energy efficiency and cost-effective performance (optimized for edge and scale-out environments), while the EPYC 9004 series targets high-performance data center workloads with higher core counts and advanced features.

All three WIO models include dual redundant power supplies (800-860W) to ensure high availability and reliability, essential for mission-critical applications. Furthermore, its tool-less design allows for easy maintenance and upgrades, minimizing downtime and improving overall operational efficiency.

The WIO systems are ideal for virtualization, data center optimization, firewall applications, database/storage solutions, and edge/cloud computing services.

AS-1015SV-WTNRT

Looking specifically at the individual models, they have lighter specifications than the other systems in the H13 line. The AS-1015SV-WTNRT’s design supports up to 576GB of DDR5-4800 memory across six DIMM slots with a storage configuration that includes four hot-swap 3.5″ drive bays. It supports SATA, NVMe, or SAS drives, offering flexibility to meet diverse storage needs. The server also features three PCIe 5.0 x16 slots (two full-height, full-length, and one low-profile), enabling extensive expansion capabilities for various high-performance peripherals.

As we implied above, the AS-1015SV-WTNRT also emphasizes energy efficiency and ease of maintenance. It is ideal for data centers looking to optimize space and power consumption without compromising performance.

AS-1115SV-WTNRT

The AS-1115SV-WTNRT is highlighted by its storage and expansion options while supporting a single AMD EPYC 8004 Series processor. It features ten hot-swap 2.5″ drive bays, six of which are NVMe hybrid, allowing for a mix of NVMe and SATA drives. This configuration offers storage flexibility and is ideal for environments that require high-speed data access and significant storage capacity. It also supports up to 576GB of DDR5-4800 memory across six DIMM slots.

Designed for efficiency and performance, the AS-1115SV-WTNRT includes three PCIe 5.0 x16 slots, providing extensive expansion capabilities for additional high-performance peripherals.

AS-2015SV-WTNRT

The AS-2015SV-WTNRT is a 2U server that offers maximum scalability and storage flexibility. This model supports a single AMD EPYC 8004 Series processor with up to 64 cores, delivering exceptional computational performance for demanding applications. It features twelve hot-swap 3.5″ drive bays, capable of accommodating SATA, SAS, or a mix of six NVMe and six SATA drives. This extensive storage capability makes the AS-2015SV-WTNRT ideal for data-intensive applications, providing the flexibility needed for various storage configurations. With support for up to 576GB of DDR5-4800 memory across six DIMM slots, this server ensures ample capacity for memory-intensive tasks.

Model	Processor	Memory	Storage	Applications
AS-8125GS-TNHR	Dual AMD EPYC 9004	Up to 6TB DDR5	16 NVMe, 2 SATA	AI, HPC
AS-2115GT-HNTR	Single AMD EPYC 9004	Up to 6TB DDR5	6 NVMe/SATA per node	HCI, HPC, Cloud
AS-1125HS-TNR	Dual AMD EPYC 9004	Up to 6TB DDR5	12 NVMe/SATA	Enterprise, AI
AS-1115HS-TNR	Single AMD EPYC 9004	Up to 6TB DDR5	8 NVMe/SATA/SAS	Enterprise, Cloud
AS-1015CS-TNR	Single AMD EPYC 9004	Up to 12 DIMMs	4 NVMe/SATA	Cloud, CDN
AS-1015SV-WTNRT	Single AMD EPYC 8004	Up to 576GB DDR5	4 NVMe/SATA	Edge, Cloud

Conclusion

GPU A+ Server AS-4125GS-TNRT front

Supermicro’s A+ H13 and H12 Generation servers, powered by AMD’s latest processors, offer versatile, high-performance solutions for a wide variety of applications. We know from hands-on experience in our lab that Supermicro’s AMD platforms can range from power-sipping core-optimized deployments for service providers to systems with the highest possible core counts for advanced computational workloads. As always, Supermicro has systems for every use case.
