Synology Announces RackStation RS3617xs and RS816

by Lyle Smith August 11, 2016

written by Lyle Smith August 11, 2016

Synology has announced two new high-performing NAS solutions, the RackStation RS3617xs and RS816. Robust and scalable, the RS3617xs is designed to provide greater agility and higher efficiency to support large-scale businesses, while the RS816 is a compact 1U 4-bay server rackmount server built for growing businesses.

Leveraging a quad-core 3.3 GHz CPU, the RS3617xs offers some pretty impressive high performance, as it has quoted sequential throughput up to 3,263MB/s, as well as 333,941 IOPS, under a RAID5 configuration using 10GbE Link Aggregation. The RS3617xs is also powered by a comprehensive Btrfs file system with snapshot technology. Synology touts it is capable of very fast point-in-time recovery and can produce up to 65,000 copies of system-wide snapshots, which is ideal for disaster recovery of critical data. In addition, Synology indicates that the RS3617xs offers seamless storage solutions for virtualization environments such as VMware, Citrix, and Hyper-V.

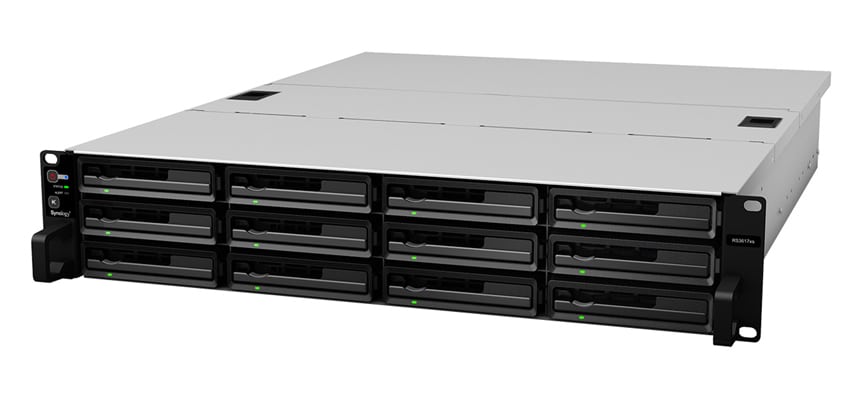

Synology RackStation RS3617xs specifications

CPU
- CPU Model: Intel Xeon E3-1230 v2
- CPU Architecture: 64-bit
- CPU Frequency: Quad Core 3.3 GHz
Hardware Encryption Engine (AES-NI)
Memory
- System Memory: c4 GB DDR3 ECC
- Memory Module Pre-installed 2 GB x 2
- Total Memory Slots: 4
- Memory Expandable up to 32 GB (8 GB X 4)
Storage
- Drive Bay(s): 12
- Maximum Drive Bays with Expansion Unit: 36
- Compatible Drive Type (See all supported drives)
  - 3.5" SATA III / SATA II HDD
  - 2.5" SATA III / SATA II HDD
  - 2.5" SATA III / SATA II SSD
- Maximum Internal Raw Capacity: 96 TB (8 TB HDD x 12) (Capacity may vary by RAID types)
- Maximum Raw Capacity with Expansion Units: 288 TB (8 TB HDD x 36) (Capacity may vary by RAID types)
- Maximum Single Volume Size
  - 200TB (32GB RAM required, for RAID 5 or RAID 6 groups only)
  - 108TB
- Hot Swappable Drive
External Ports:
- USB 2.0 Port: 2
- USB 3.0 Port: 2
Expansion Port: 2
File System
- Internal Drives
  - Btrfs
  - EXT4
- External Drives
  - Btrfs
  - EXT4
  - EXT3
  - FAT
  - NTFS
  - HFS+
  - exFAT
Appearance
- Size (Height x Width x Depth): 88 mm x 445 mm x 570 mm
- Weight:13.3 kg
Warranty: 3 Years

The RS816 is designed for fast changing business environments as well as those that have complicated storage demands. This is made possible due to its flexible scalability of up to eight drives, providing a maximum of 64TB in raw storage capacity in compact 12inch enclosure. Synology has equipped the RS816 with an advanced dual-core CPU that features a hardware encryption engine. This allows the NAS to be quoted at 148MB/s in reads and 81MB/s in writes, a 142% increase in its encrypted write performance compared to its predecessor (the Synology RackStation RS815). The RS816 also features dual LAN failover support to ensure continuous operation.

Synology RackStation RS816 Specifications

CPU
- CPU Model: Marvell Armada 385 88F6820
- CPU Architecture: 32-bit
- CPU Frequency: Dual Core 1.8 GHz
Hardware Encryption Engine
Memory
- System Memory: 1 GB DDR3
Storage
- Drive Bay(s): 4
- Maximum Drive Bays with Expansion Unit: 8
- Compatible Drive Type
  - 3.5" SATA III / SATA II HDD
  - 2.5" SATA III / SATA II HDD
  - 2.5" SATA III / SATA II SSD
- Maximum Internal Raw Capacity: 40 TB (10 TB HDD x 4) (Capacity may vary by RAID types)
- Maximum Raw Capacity with Expansion Units: 80 TB (10 TB HDD x 8) (Capacity may vary by RAID types)
- Maximum Single Volume Size: 16 TB
- Hot Swappable Drive
External Ports
- USB 3.0 Port: 2
- eSATA Port: 1
File System
- Internal Drives: EXT4
- External Drives
  - EXT4
  - EXT3
  - FAT
  - NTFS
  - HFS+ (Read Only, with max. volume size 2TB)
Appearance
- Size (Height x Width x Depth): 44 mm x 430.5 mm x 290 mm
- Weight: 4.34 kg
Warranty: 3 Years
