Synology Launches DiskStation DS2015xs

Today Synology Inc. announced the launch of two new DiskStations, the DS2015xs and the DS3615xs (initially a non-US launch). Both of the new DiskStations are expandable with the 12-bay DX1215 expansion unit that has a 6Gb/s connection allowing connected drives to operate as internal drives. The DS2015xs is aimed at small to medium businesses while the DS3615xs is aimed large-scale businesses.

Both new DiskStations are virtualization certified. Both units provide seamless storage for virtualization environments including VMware, Citrix, and Hyper-V and are VMware vSphere 5 and VAAI integration certified. The units enable virtual migration from server to server while eliminating downtime and disruption. To improve efficiency on massive data transfer and migration, both units support Windows Offloaded Data Transfer (ODX) and Synology Advanced LUN. Both devices have native SATA III 6Gb/s support, which is the interface used to connect to the DX1215. And both are powered by Synology’s DSM.

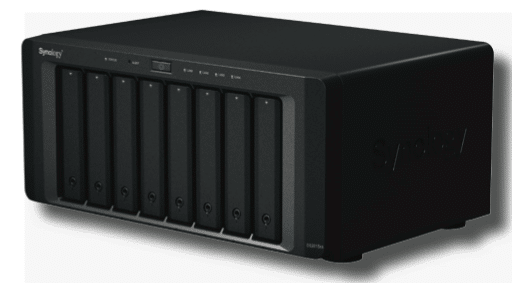

The DS2015xs is for small to medium organizations that need a combination of cost-effectiveness with performance, the unit boasts performances of 2,095MB/s sequential read speed and a sequential read throughput of 59,185 IOPS under RAID5 configuration with VLAN. The DS2015xs features an Annapurna AL-514 Quad Core 1.7GHz, the AL-514 has parity offload to improve the performance of RAID5 and RAID6. The DS2015xs is the first Synology product to feature RAID5 and RAID6 storage acceleration.

The unit comes with 2GB of DDR3 RAM and is expandable up to 8GB. There are 8 bays with a raw capacity of 48TB (with a DX1215 unit the raw capacity can be expanded up to 120TB). The DS2015xs also comes with two built in SFP 10Gb/s LAN ports allowing for transfer speeds up to 100MB/s on each port, dramatically improving re-sync times. The DS2015xs comes with several feature-rich business applications such as printer sharing, VPN Server, Mail Server, web server, anti-virus, and a new version of Surveillance Station that supports up to 40 cameras. The device also has Synology High Availability that allows the creation of storage clusters, including Active-passive clustering allowing end-users to continue working in the event of a storage unit failure.

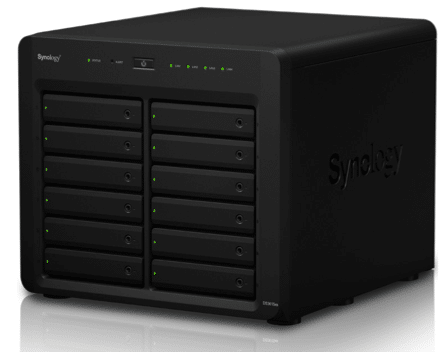

The DS3615xs is for large-scale organizations that need high performance, the unit boasts performances of 2,352 MB/s sequential read and sequential read throughput of 268,064 IOPS under RAID5 configuration with VLAN. The unit comes with 4GB of DDR3 ECC RAM but is expandable up to 32GB. There are 12 drive bays for up to 72TB of raw capacity (with two DX1215 units the raw capacity can be expanded up to 216TB). The DS3615xs features an Intel Core i3-4130 Dual Core 3.4GHz and comes equipped with comprehensive business applications.

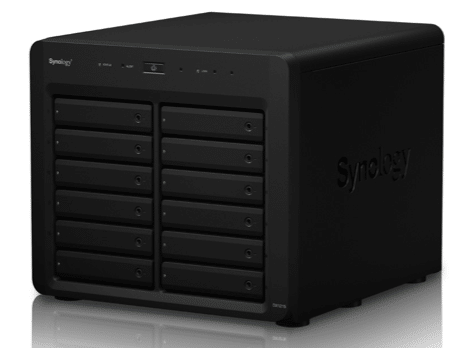

The DX1215 adds an additional 12 bays to connected DiskStations. It has a 6Gb/s connection that allows connected drives to operate as internal drives in the connected DiskStations. The expansion unit can also serve as a local backup solution when created as a separate volume. The DX1215 acts as a backup solution in case of system failure.

Synology DS2015xs specifications:

CPU model: Annapurna AL-514
CPU frequency: Quad Core 1.7GHz
Floating Point
Hardware Encryption Engine
System Memory: 4GB DDR3
Memory Module Pre-installed: 4GB X 1
Total Memory Slots: 2
Memory Expandable up to: 8GB (4GB + 4GB)
Drive Bay(s): 8
Maximum Drive Bays with Expansion Unit: 20
Compatible Drive Type
- 3.5″ SATA(III) / SATA(II) HDD
- 2.5″ SATA(III) / SATA(II) HDD
- 2.5″ SATA(III) / SATA(II) SSD
Maximum Internal Raw Capacity 48TB (6TB HDD X 8) (Capacity may vary by RAID types)
Hot Swappable Drive
External ports: USB 3.0 X 2, Expansion X 1
File System
Internal Drives: EXT4
External Drives
- EXT4
- EXT3
- FAT
- NTFS
- HFS+
Size (Height X Width X Depth): 157 mm X 340 mm X 233 mm
Weight 5.31 kg
LAN Number: SFP Gigabit X 2, RJ-45 x 2
Link Aggregation
Wake on LAN/WAN
System Fan: 120 mm X 120 mm X 2 pcs
Wireless Support (dongle not included)
AC Input Power Voltage: 100V to 240V AC
Power Frequency: 50/60 HZ, Single Phase
Temperature:
- Operating Temperature: 5°C to 35°C (40°F to 95°F)
- Storage Temperature: -20°C to 60°C (-5°F to 140°F)
- Relative Humidity: 5% to 95% RH
Warranty: 5 Years

Synology DS3615xs specifications:

CPU model: Intel Core i3-4130
CPU frequency: Dual Core 3.4GHz
Floating Point
Hardware Encryption Engine
System Memory: 4GB DDR3 ECC
Memory Module Pre-installed: 4GB X 1
Total Memory Slots: 8
Memory Expandable up to: 32GB (4GB X 8)
Drive Bay(s): 12
Maximum Drive Bays with Expansion Unit: 36
Compatible Drive Type
- 3.5″ SATA(III) / SATA(II) HDD
- 2.5″ SATA(III) / SATA(II) HDD
- 2.5″ SATA(III) / SATA(II) SSD
Maximum Internal Raw Capacity 72TB (6TB HDD X 12) (Capacity may vary by RAID types)
External ports: USB 3.0 X 2, Expansion X 2
File System
Internal Drives: EXT4
External Drives
- EXT4
- EXT3
- FAT
- NTFS
- HFS+
Size (Height X Width X Depth): 270 mm X 300 mm X 340 mm
Weight 9.8 kg
LAN Number: 1GbE X 4, PCIe Expansion Slot x 1
Wake on LAN/WAN
System Fan: 120 mm X 120 mm X 2 pcs
Wireless Support (dongle)
AC Input Power Voltage: 100V to 240V AC
Power Frequency: 50/60 HZ, Single Phase
Temperature:
- Operating Temperature: 5°C to 35°C (40°F to 95°F)
- Storage Temperature: -20°C to 60°C (-5°F to 140°F)
- Relative Humidity: 5% to 95% RH
Warranty: 5 Years

Synology DX1215 specifications:

Drive Bay(s): 12
Compatible Drive Type
- 3.5″ SATA(III) / SATA(II) HDD
- 2.5″ SATA(III) / SATA(II) HDD
- 2.5″ SATA(III) / SATA(II) SSD
Expansion Port X 1
Supported Models: DS3615xs, DS3612xs, DS3611xs, DS2413+, DS2015xs
Size (Height X Width X Depth): 270 mm X 300 mm X 340 mm
Weight 9.02 kg
System Fan: 120 mm X 120 mm X 2 pcs
Power Recovery (Sync with connected DiskStation)
AC Input Power Voltage: 100V to 240V AC
Power Frequency: 50/60 HZ, Single Phase
Temperature:
- Operating Temperature: 5°C to 35°C (40°F to 95°F)
- Storage Temperature: -20°C to 60°C (-5°F to 140°F)
- Relative Humidity: 5% to 95% RH
Warranty: 5 Years
