Synology has introduced two new dual-controller systems to its product portfolio, the UC3400 and SA3400D. The UC3400 is designed for mission-critical SAN storage, offering an active-active system for efficient high availability. The SA3400D is a versatile active-passive system suitable for both NAS and SAN applications.
Synology has introduced two new dual-controller systems to its product portfolio, the UC3400 and SA3400D. The UC3400 is designed for mission-critical SAN storage, offering an active-active system for efficient high availability. The SA3400D is a versatile active-passive system suitable for both NAS and SAN applications.
With support for up to 576 TB of storage when fully expanded, these dual-controller systems provide businesses with cost-effective, space-efficient high-availability solutions catering to their diverse storage needs.
Synology UC3400

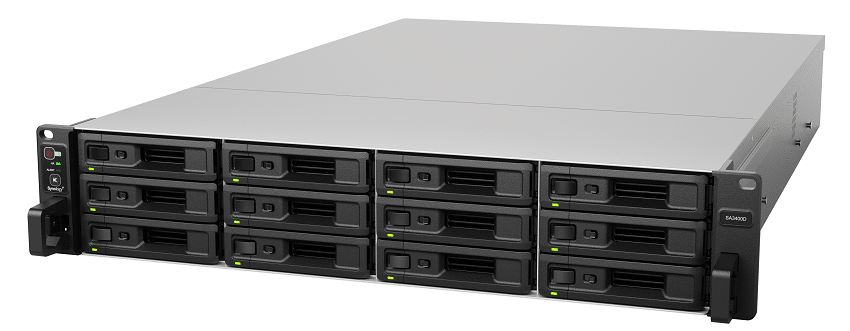

Synology SA3400D front
The Synology UC3400 is a highly reliable SAN storage solution with comprehensive redundancy and high availability features, making it a dependable choice for uninterrupted access to critical business data, minimizing the risks of data loss and downtime. With performance capabilities of over 690,000/180,000 4K random read/write IOPS3, the UC3400 can easily support most applications.
The UC3400 supports Fibre Channel and iSCSI, allowing for versatile deployment options and seamless integration with existing storage infrastructure. Its active-active dual controller design ensures zero downtime even in the event of a controller failure; this is due to interconnectivity through a high-speed Non-Transparent Bridge (NTB) between the two controllers.
Moreover, the UC3400 is equipped with hot-swappable dual power supplies, providing redundancy and preventing service interruptions in case of a power supply failure. These features contribute to the UC3400’s robustness and resilience in meeting the demands of enterprise storage environments.

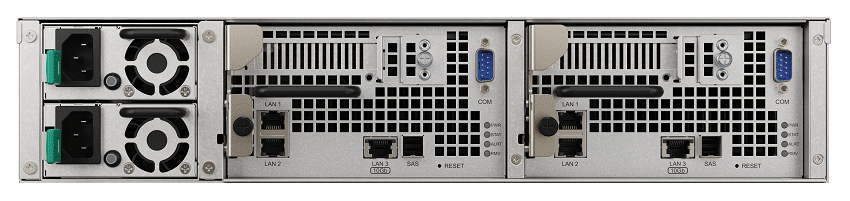

Synology SA3400D back
The UC3400 also prioritizes data protection, meeting strict regulatory compliance. It supports self-encrypting drives to ensure data security against physical loss or theft, and the off-site snapshot replication adds an extra layer of protection against malware and physical disasters.
Synology UC3400 Specifications
| Controller modules | 2 |
| CPU | Intel Xeon D-1541 |
| Memory | 8GB DDR4 ECC UDIMM (expandable up to 64 GB) (per controller) |
| Compatible drive types | • 12 x 3.5″ Synology SAS HDD (drives not included) |
| Hot-swappable drives | Yes |
| External ports | 1 x Expansion port (Mini-SAS HD) (per controller) |
| Form factor | Rackmount 2U |
| Size (HxWxD) | • 88 x 430.5 x 692 mm
• 88 x 482 x 724 mm (with server ears) |
| Weight | 19.7 kg |
| LAN ports | • 1 x 10GbE RJ-45 (per controller)
• 2 x 1GbE RJ-45 (per controller) |
| PCIe expansion | • 1 x 8 width slot, Gen 3.0 x8 lanes (per controller)
• 10GbE/25GbE network interface card support5 (per controller) • 16 Gigabit FC host bus adapter card support5 (per controller) |
| Scheduled power on/off | No |
| System fans | 2 x (60 x 60 x 51 mm) |
| AC input power voltage | 100 V to 240 V AC |
| Power frequency | 50/60 Hz, single phase |
| Operating environment | • Temperature: 0°C to 35°C (32°F to 95°F)
• Relative humidity: 8% to 80% RH |
| Storage environment | • Temperature: -20°C to 60°C (-5°F to 140°F)
• Relative humidity: 5% to 95% RH |
| Maximum operating altitude | 5,000 m (16,400 ft) |
| Networking protocols | Fibre Channel, iSCSI, Telnet, SSH, SNMP |
| Supported RAID types | Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID F1 |
| Storage management | • Max. single volume size: 108 TB
• Max. number of system snapshots: 4,0966 • Maximum internal volume: 32 |
| SSD cache | Read/write cache support |
| Virtualization | VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, OpenStack |
Synology SA3400D
The Synology SA3400D is designed to offer significant value for organizations of all sizes by combining reliability and efficiency in a compact system while supporting a high-availability active-passive architecture. This enables quick failover times (under a minute), minimizing service downtime.
The Synology SA3400D also offers a range of advanced features to enhance its performance and scalability. With hot-swappable dual power supplies, the SA3400D minimizes the risk of hardware failure and ensures uninterrupted operation. It is also equipped with two 1GbE RJ-45 ports and a 10GbE RJ-45 port per controller, simplifying the task of integrating into existing high-speed networks. Additionally, the system supports a PCIe 3.0 expansion slot per controller, enabling compatibility with 10/25GbE and Fibre Channel cards. This is ideal for bandwidth-intensive applications.
Its twelve bays for 3.5″/2.5″ SAS drives can be expanded to 36 bays by adding two Synology RXD1219sas Expansion Units. Users can also leverage hybrid storage arrays to combine SSD speed and HDD efficiency and designate SAS SSD volumes as read/write cache for HDD volumes to reduce I/O speeds and latency. These features make the SA3400D a versatile and powerful solution for demanding storage requirements.
Synology SA3400D Specifications
| Controller modules | 2 |
| CPU | Intel Xeon D-1541 |
| Hardware encryption engine | Yes |
| Memory | 8 GB DDR4 ECC UDIMM (expandable up to 64 GB) |
| Compatible drive types | • 12 x 3.5″ Synology SAS HDD or 2.5″ SAS SSD (drives not included)
• Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability9 |
| Hot-swappable drives | Yes |
| External ports | • 1 x Expansion port (Mini-SAS HD) (per controller) |
| Form factor | Rackmount 2U |
|
Size (HxWxD) |
• 88 x 430.5 x 692 mm
• 88 x 482 x 724 mm (with server handles) |
| Weight | 19.7 kg |
| LAN ports | • 2 x 1GbE RJ-45 (per controller)
• 1 x 10GbE RJ-45 (per controller) |
| Wake on LAN/WAN | Yes |
| PCIe expansion | • 1 x PCle 3.0 x8 slot, x8 lanes (per controller)
• Supports network interface cards4 |
| System fans | 2 x (60 x 60 x 51 mm) |
| AC input power voltage | 100 V to 240 V AC |
| Power frequency | 50/60 Hz, single phase |
|
Operating environment |
• Temperature: 0°C to 35°C (32°F to 95°F)
• Relative humidity: 8% to 80% RH |
| Storage environment | • Temperature: -20°C to 60°C (-5°F to 140°F)
• Relative humidity: 5% to 95% RH |
| Maximum operating altitude | 5,000 m (16,400 ft) |
| Networking protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN™, L2TP) |
| File systems | • Internal: Btrfs, ext4 |
| Supported RAID types | Synology RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10 |
| Storage management | • Max. single volume size: 108 TB/200 TB10
• Max. number of system snapshots: 65,53611 • Max. number of internal volumes: 64 |
| SSD cache5 | • Read/write cache support
• 2.5″ SAS SSD support |
| File sharing capabilities | • Max. number of local user accounts: 16,000
• Max. number of local groups: 512 • Max. number of shared folders: 512 • Max. number of concurrent SMB/NFS/AFP/FTP connections: 1,20012 |
| Privileges | Windows Access Control List (ACL) and application privileges |
| Directory services | Connects with Windows AD/LDAP servers enabling domain users to log in via SMB/NFS/ AFP/FTP/File Station using their existing credentials |
| Virtualization | VMware vSphere, Microsoft Hyper-V, Citrix XenServer, OpenStack |
| Security | Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let’s Encrypt support, and HTTPS (customizable cipher suite) |
In addition to Snapshot Replication and Hyper Backup, Synology’s Active Backup Suite offers an intuitive solution for managing organization-level backups of Windows, macOS, Linux endpoints, virtual servers, and cloud applications. The SA3400D further supports collaboration and file sharing among distributed teams through Synology’s comprehensive suite of online productivity applications.
Synology SA3400D and UC3400 Pricing and Availability
The SA3400D and UC3400 are available from Synology partners and resellers. The SA3400D is priced at $8,999.99 MSRP, and the UC3400 retails for $7,999.99.
