Synology SAT5200 7TB SATA SSD Released

Synology has recently released its SAT5200 Series SATA SSDs. These NAS SSDs are designed to handle mixed and intensive 24/7 workloads without compromising on endurance, providing a streamlined storage experience on Synology systems with minimal service disruptions.

The SAT5200 SSD line are also purpose-built for demanding environments, like online transaction processing (OLTP) databases and virtualization deployments, while deliver consistently high performance. Additionally, they come with end-to-end data protection, which helps safeguard data integrity and consistency over the entire data transfer path.

Synology SAT5200

Synology quotes the SAT5200 with sustained sequential read and write speeds of 530MB/s and 500MB/s, respectively, across all capacities. The series is also expected to deliver sustained random read speeds of up to 98,000 IOPS (960GB and 1.92TB capacities) and sustained random write speeds of up to 67,000 IOPS (960GB capacity). The SAT5200 Series drives also come with enterprise-grade endurance and reliability, with endurance of up to 11,460 TBW, ensuring that the drives are built to withstand 24/7 workloads. Moreover, they have power consumption ranging from 1.3W at idle to 5.1W during active write, making them fairly energy-efficient.

The SAT5200 Series also has analytics capabilities via its integration with Synology DiskStation Manager (DSM). Users can view lifetime analytics for each SAT5200 Series drive based on actual workloads, while providing timely notifications for uninterrupted system performance and longevity. Moreover, its easy monitoring features allow optimal use of each SSD, while automatic firmware update notifications and one-click installation help to minimize maintenance workload and reduce the chance of oversights.

The SAT5200 Series SSDs come in five different capacities, ranging from 480 GB to 7TB, and are compatible with Synology systems with 2.5″ drive bays. That said, these drives are formatted akin to that of light enterprise models, except for the 7TB capacity. Usually, one would expect either a 6.4TB or 7.68TB capacity. The reason for Synology’s deviation from the norm might be to provide extra over-provisioning for write operations without significantly reducing the storage capacity (as is the case with 6.4TB models).

Synology SAT5200 Series SATA SSDs Specifications

Hardware Specifications		SAT5210-480G	SAT5210-960G	SAT5210-1920G	SAT5210-3840G	SAT5210-7000G
General	Capacity	480 GB	960 GB	1.92 TB	3.84 TB	7 TB
	Form Factor	2.5″ 7mm	2.5″ 7mm	2.5″ 7mm	2.5″ 7mm	2.5″ 7mm
	Interface	SATA 6 Gb/s	SATA 6 Gb/s	SATA 6 Gb/s	SATA 6 Gb/s	SATA 6 Gb/s
Performance	Sustained Sequential read (128 KB, QD32)	530MB/s	530MB/s	530MB/s	530MB/s	530MB/s
	Sustained Sequential write (128 KB, QD32)	500MB/s	500MB/s	500MB/s	500MB/s	500MB/s
	Sustained Random Read (4KB, QD32)	96,000 IOPS	98,000 IOPS	98,000 IOPS	98,000 IOPS	97,000 IOPS
	Sustained Random Write (4KB, QD32)	55,000 IOPS	67,000 IOPS	60,000 IOPS	60,000 IOPS	50,000 IOPS
Endurance and Reliability	Terabytes Written (TBW)	1,097TB	2,194TB	4,800TB	8,533TB	11,460TB
	Power Loss Protection	Yes	Yes	Yes	Yes	Yes
	Warranty	5 Years	5 Years	5 Years	5 Years	5 Years
Power Consumption	Active Read (Typ.)	2.4 W	2.7 W	2.8 W	2.8 W	3.3 W
	Active Write (Typ.)	2.8 W	2.8 W	3.1 W	3.3 W	5.1 W
	Idle	1.3 W	1.4 W	1.4 W	1.4 W	1.8 W
Temperature	Operating Temperature	0°C to 70°C (32°F to 158°F)	0°C to 70°C (32°F to 158°F)	0°C to 70°C (32°F to 158°F)	0°C to 70°C (32°F to 158°F)	0°C to 70°C (32°F to 158°F)
Temperature	Storage Temperature	-40°C to 85°C (-40°F to 185°F)	-40°C to 85°C (-40°F to 185°F)	-40°C to 85°C (-40°F to 185°F)	-40°C to 85°C (-40°F to 185°F)	-40°C to 85°C (-40°F to 185°F)

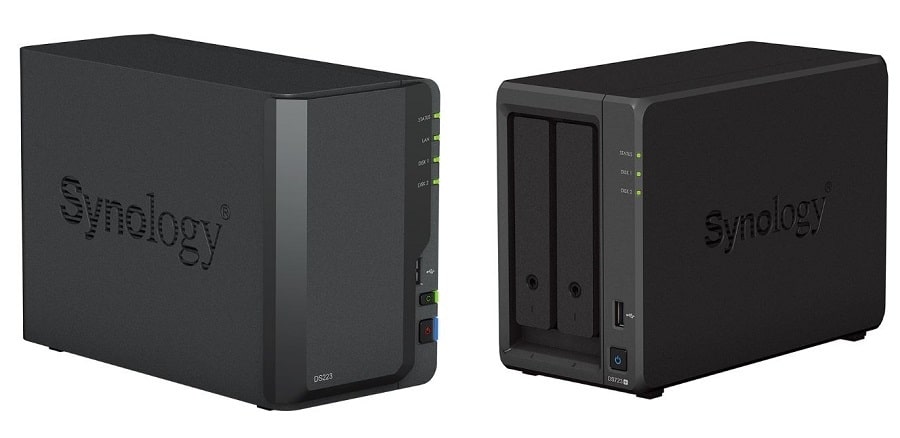

Synology DiskStation DS223 Released

Synology has also recently released the DiskStation DS223, a 2-bay NAS platform designed for home and small office use. It offers up to 36TB of data storage with anywhere, anytime access, all while maintaining low energy consumption at just 17.3W during operation.
