Toshiba’s Storage Products Business Unit has announced it is expanding its enterprise Solid State Drives (eSSD) family with the PX-Series, which will debut in the fourth quarter with three models targeted for different applications. The new PX02SM, PX02AM, and PX03AN drives span a variety of price and performance points, but all offer power-loss protection and a 2.5-inch form factor.
Toshiba’s Storage Products Business Unit has announced it is expanding its enterprise Solid State Drives (eSSD) family with the PX-Series, which will debut in the fourth quarter with three models targeted for different applications. The new PX02SM, PX02AM, and PX03AN drives span a variety of price and performance points, but all offer power-loss protection and a 2.5-inch form factor.

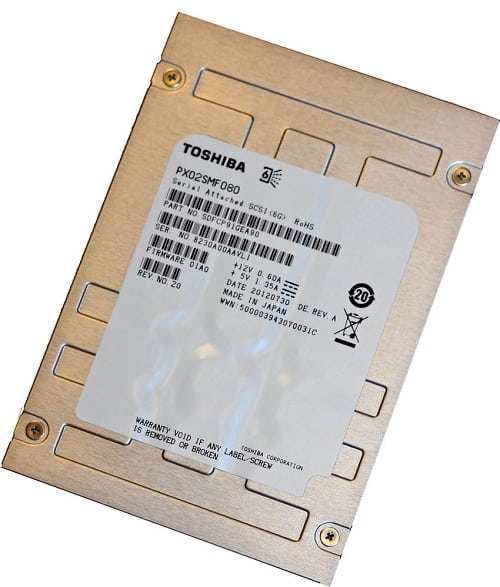

PX02SM Overview
The PX02SM is the highest-performing of the new drives, and Toshiba’s first SSD to utilize 24nm eMLC (enterprise multi-level cell) NAND. The PX02SM is also Toshiba’s first 2.5-inch SSD with a dual-port 12Gb/sec SAS interface.
- Capacity (GB): 200, 400, 800, 1600
- NAND: 24nm eMLC (64Gb/die)
- Interface: SAS G6b/s and 12GB/s
- Form Factor: 2.5” SFF x 7mm High (15mm for 1600GB model)
- Performance (@ QD = 32, Aligned, Sustained, Entropy=100%):
- Sequential Read 64KiB (MB/s): 900
- Sequential Write 64KiB (MB/s): 400
- Random Read 4KiB (KIOPS): 120
- Random Write 4KiB (KIOPS): 30
- Latency (@ QD=1, Aligned, Random 4KiB)
- Read us (typ): 100
- Write us (typ): 100
- Endurance (PBW, per life, w/ 4KiB aligned Ran. W): 3.7 (200GB), 7.3 (400GB), 14.6 (800GB), 29.2 (1600GB)
- Data Retention (@ EOL, Power removed): 3 months @ < 40 deg C
- MTTF (MPOH): 2.0 (AFR: 0.44%)
- Product Life: 5 Years
- Temperature
- Operating (Ambient) Ta C: 0 to 55
- Operating (Case) Tc C: 0 to 60
PX02AM Overview
Like the PX02SM, Toshiba’s PX02AM series features 24nm eMLC NAND flash but with a 6Gb/s SATA interface, reflecting its orientation towards entry-to-mid-level server and storage applications.
- Capacity (GB): 100, 200, 400
- NAND: 24nm eMLC (64Gb/die)
- Interface: SATA G6b/s
- Form Factor: 2.5” SFF x 7mm High
- Performance (@ QD = 32, Aligned, Sustained, Entropy=100%):
- Sequential Read 64KiB (MB/s): 500 (100GB), 500 (200GB), 500 (400GB)
- Sequential Write 64KiB (MB/s): 130 (100GB), 240 (200GB), 240 (400GB)
- Random Read 4KiB (KIOPS): 20 (100GB), 36 (200GB), 36 (400GB)
- Random Write 4KiB (KIOPS): 5 (100GB), 5 (200GB), 5 (400GB)
- Latency (@ QD=1, Aligned, Random 4KiB)
- Read us (typ): 250
- Write us (typ): 200
- Endurance (PBW, per life, w/ 4KiB aligned Ran. W): 0.5 (100GB), 1 (200GB), 2 (400GB)
- Data Retention (@ EOL, Power removed): 3 months @ < 40 deg C
- MTTF (MPOH): 2.0 (AFR: 0.44%)
- Product Life: 3 Years
- Temperature
- Operating (Ambient) Ta C: 0 to 55
- Operating (Case) Tc C: 0 to 60
- Non-Operating Ta C: -40 to 70
PX03AN Overview
The PX03AN series is another first for Toshiba, its first enterprise SSD to use 19nm cMLC (consumer multi-level cell) NAND flash to drive down the cost for entry-level server applications.
- Capacity (GB): 55, 120, 240, 480
- NAND: 19nm cMLC (64Gb/die)
- Interface: SATA G6b/s
- Form Factor: 2.5” SFF x 7mm High
- Performance (@ QD = 32, Aligned, Sustained, Entropy=100%):
- Sequential Read 64KiB (MB/s): 300 (55GB), 500 (120GB), 500 (240GB), 500 (480GB)
- Sequential Write 64KiB (MB/s): 65 (55GB), 130 (120GB), 240 (240GB), 240 (480GB)
- Random Read 4KiB (KIOPS): 12 (55GB), 20 (120GB), 36 (240GB), 36 (480GB)
- Random Write 4KiB (KIOPS): 1 (55GB), 1.5 (120GB), 1.5 (240GB), 1.5 (480GB)
- Latency (@ QD=1, Aligned, Random 4KiB)
- Read us (typ): 250
- Write us (typ): 100
- Endurance (PBW, per life, w/ 4KiB aligned Ran. W): 0.008 (55GB), 0.015 (120GB), 0.03 (240GB), 0.06 (480GB)
- Data Retention (@ EOL, Power removed): 3 months @ < 40 deg C
- MTTF (MPOH): 1.2 (AFR: 0.73%)
- Product Life: 3 Years
- Temperature
- Operating (Ambient) Ta C: 0 to 55
- Operating (Case) Tc C: 0 to 60
Availability
The PX02SM, PX02AM, and PX03AN series will begin shipments in the fourth quarter of 2012.
UPDATE 05/31/2013 – Toshiba PX02SM Review – POSTED
