ADATA’s Premier Pro SP920 SSD is identical to the Crucial/Micron M550 in pretty much every way and it’s likely that Micron manufactures the drives themselves. As such, ADATA claims that it can reach identical performance numbers to the M550 (and then some), quoting 4KB random read/write speeds of up to 98,000/88,000IOPS as well as boasting 560MB/s read and 500MB/s write activity to offer rapid loading and multimedia playback. With these similarities, as well as the market’s saturation of high-performance SSDs, it will be interesting to see how these claims hold up and whether or not it provides a balance of price and performance like many other SSDs currently do.
The ADATA Premier Pro SP920 2.5” SATA SSD comes in capacities of 128GB ($89.99), 256GB ($159.99), 512GB ($334.99), and 1TB ($529.99). All drives are inclusive of a 3-year warranty. We will be looking at the 1TB model.
Specifications
- Controller: Marvell
- NAND Flash: Synchronous MLC NAND Flash
- Interface: SATA 6Gb/s (SATA III)
- Capacities:
- 128GB (ASP920SS3-128GM-C)
- 256GB (ASP920SS3-256GM-C)
- 512GB (ASP920SS3-512GM-C)
- 1TB (ASP920SS3-1TM-C)
- Channels: 8 Channels
- Size: 100 x 69.85 x 7mm (L x W x T)
- Weight: 70g
- Performance:
- Max performance (ATTO, 1TB): 560 MB/sec Read, 500 MB/sec Write
- Max 4k random IOPS (Iometer, 1TB): 98,000 Read, 88,000 Write
- Power consumption: 0.5W Idle / 0.8W Active
- Operating / storage temp.: 0~70°C / -40~85°C
- Operating humidity: 5 ~ 95% RH (0 ~ 55°C)
- Shock Resistance: 1500G / 0.5ms
- Warranty: 3 years
Design and build
The ADATA Premier Pro SP920’s design looks virtually nothing like its predecessor, the SP900. Additionally, it now sports ADATA’s multi-colored humming bird right beside the ADATA logo.

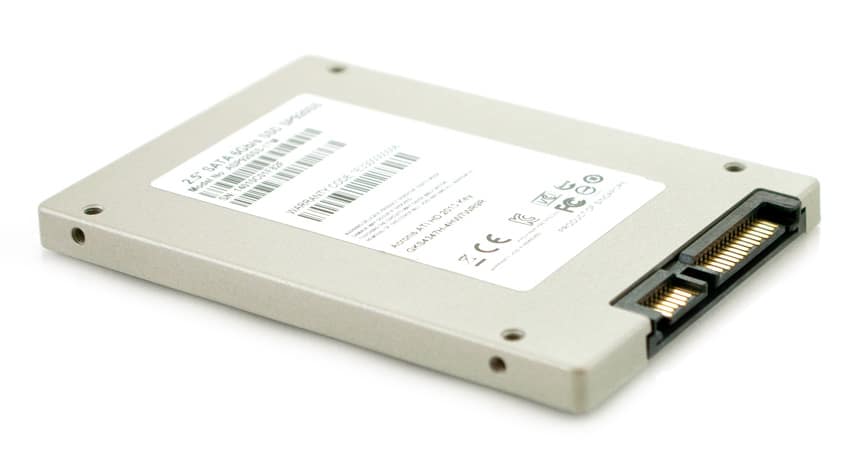

Its enclosure consists of a smooth, yet durable, refined metal, which allows it to be finger-print proof. The front of the drive features a sticker that labels the drive with ADATA logo, product name, capacity, and performance information.
The side profile of the SP920 show the screw holes that enabling the drive to be mounted. Though the 9.5mm form factor is still more widely used, the SP920 has the much slimmer 7mm profile, allowing it to fit in Ultrabooks or in most any other application. The corners are slightly rounded out with standard SATA power and data connectors located on the front of the drive.

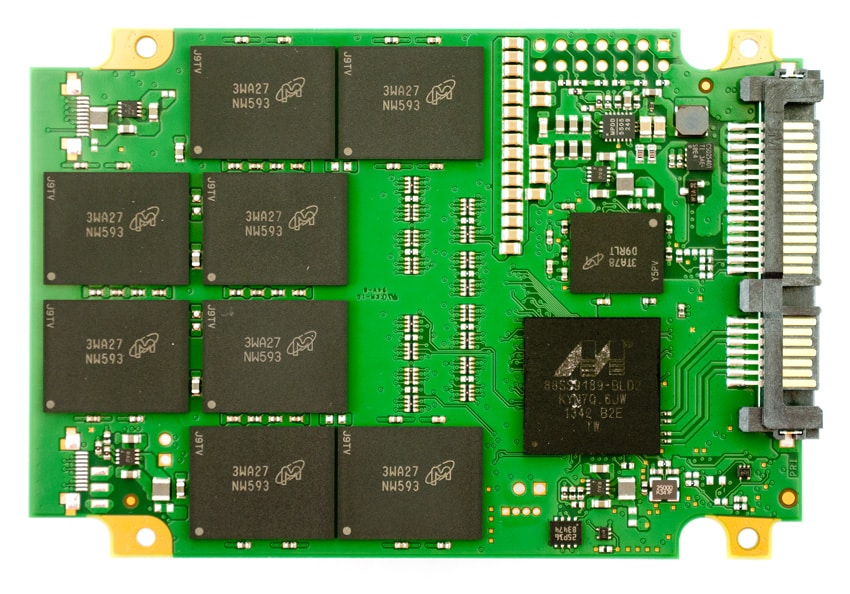

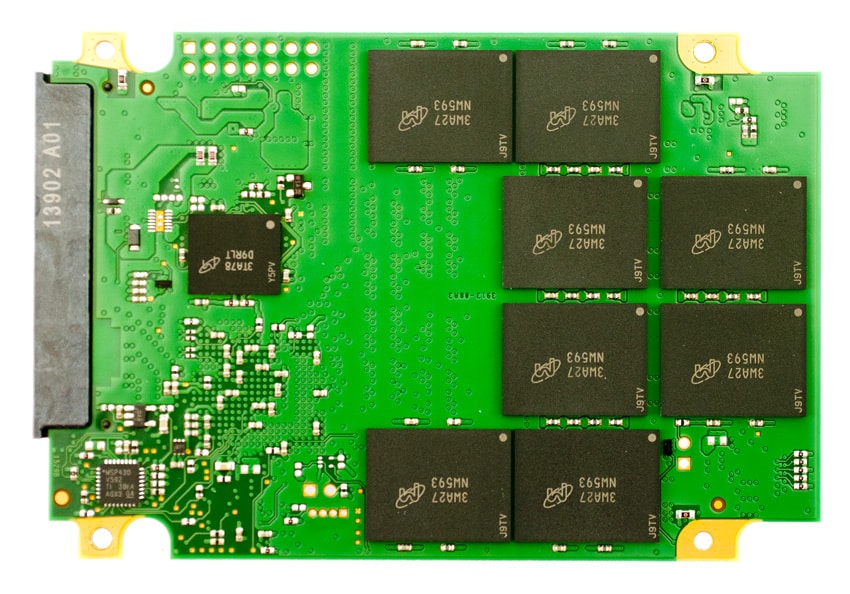

The ADATA Premier Pro SP920 uses the latest generation Marvell controller in addition to 16 total NAND die (each NAND die is 64GB).
Consumer Synthetic Workload Analysis
All consumer SSD benchmarks are conducted with the mid-range StorageReview Consumer Testing Platform. The comparables used for the review below include:
- Crucial M500 (480GB, Marvell 9187, Micron 20nm MLC NAND, SATA)
- Crucial/Micron M550 (1TB, 20nm 64Gb, 128Gb MLC, Marvell 88SS9189 Controller, SATA)
- OCZ Vertex 150 SSD (240GB, Indilinx Barefoot 3 BF3-M10, 19nm MLC NAND, SATA)
- OCZ Vertex 460 (240GB, Indilinx Barefoot 3 BF3-M10, Toshiba 19nm MLC Flash, SATA)
- Samsung SSD 840 EVO (250GB, 400MHz Samsung 3-core MCX controller, Samsung 1x nm Toggle NAND Flash, SATA)
- Seagate 600 SSD (120GB, Link-a-Media LM87800, 19nm MLC NAND, SATA)
- Corsair Force LS (240GB, 19nm Toshiba MLC, SATA)
- Intel SSD 730 (480GB, Intel PC29AS21CA0 controller, 20nm Intel MLC NAND, SATA)
All IOMeter figures are represented as binary figures for MB/s speeds.

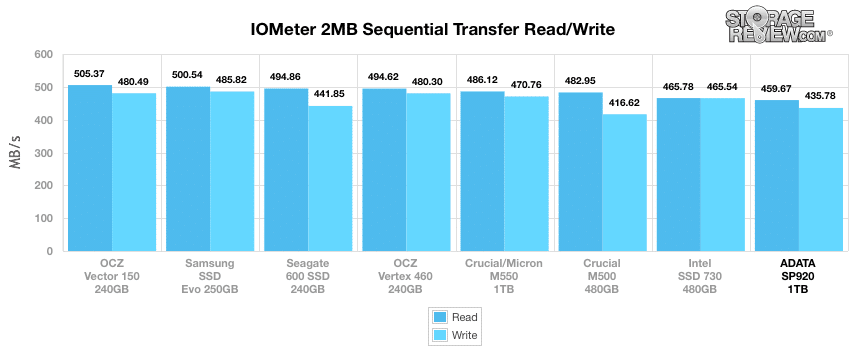

Our first test measures 2MB sequential performance. The SP920 was measured read and write speeds of 459.7MB/s and 435.8MB/s write respectively, ranking last place overall. The top performer in the read column was the OCZ Vector 150 240GB while the write column’s winner was the Samsung SSD Evo 250GB. The M550 ranked in the middle of the board, with a read and write score of 459.7MB/s and 435.8MB/s.

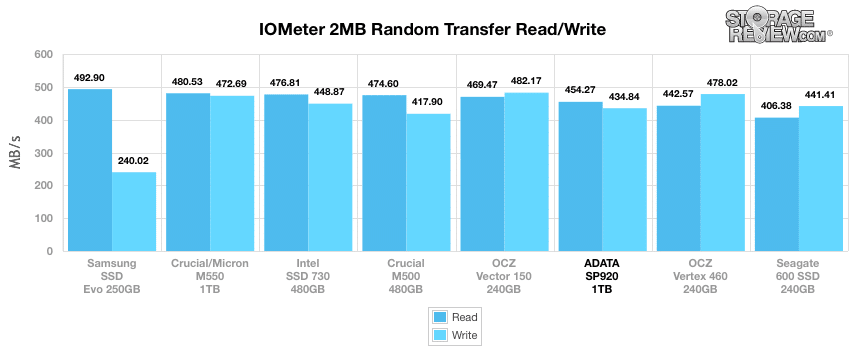

Looking at 2MB random transfer performance, the SP920 256GB posted 454.3MB/s read and 434.8MB/s write ranking at the lower end of the pack. The M550 posted very respectable read and write scores of 480.5MB/s and 472.7MB/s. Though the Samsung SSD Evo 250GB was the top performer for read activity at 492.9MB/s, its write performance was significantly lower than rest with at 240.0MB/s.

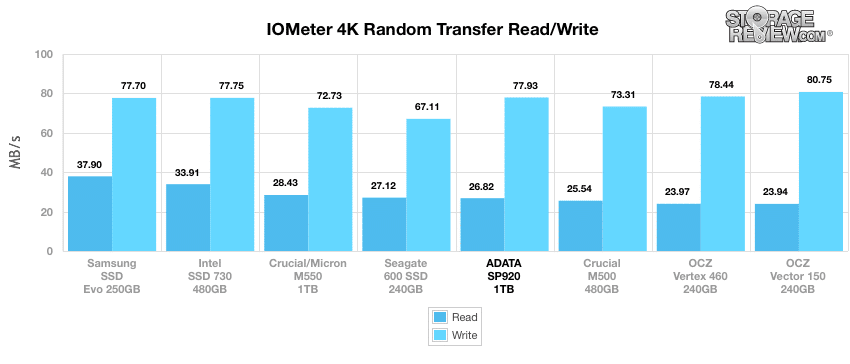

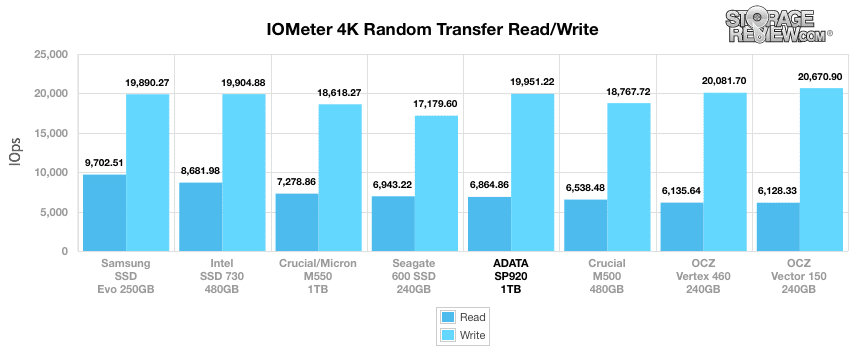

Moving to the smaller 4K random transfers category, the SP920 clocked in at 6,865IOPS read activity and 19,951IOPS write activity. The M550 actually posted over 2,000IOPS less in the write column.

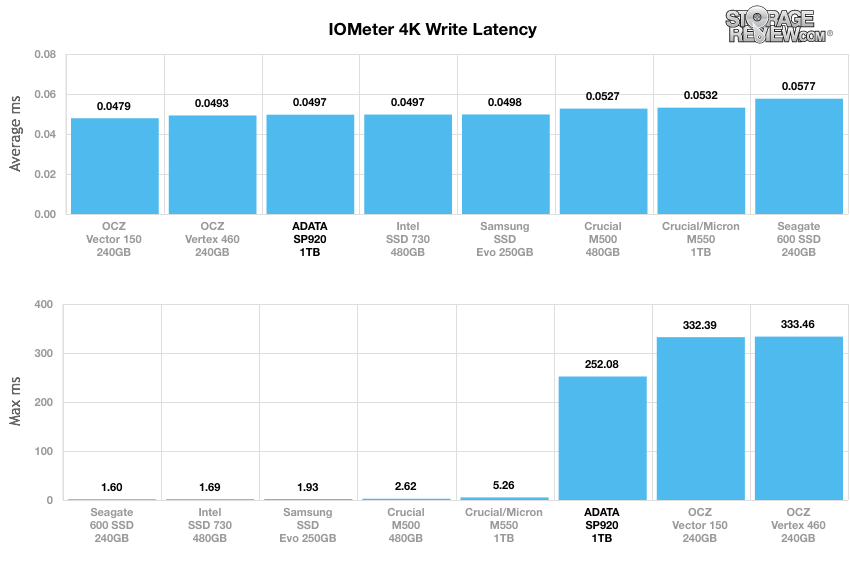

Comparing 4K latency, the SP920 performed well in the average latency column but was among the highest for peak latency.

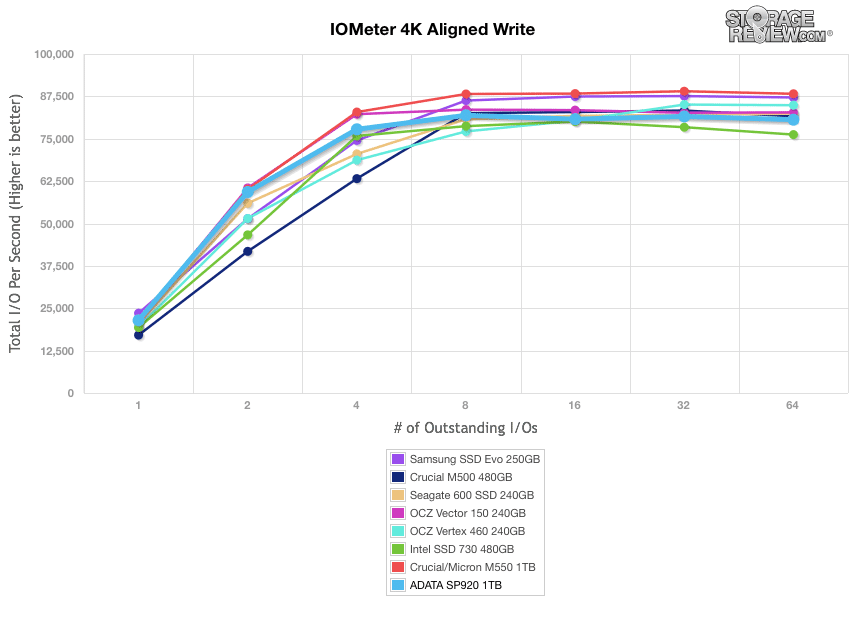

For aligned write activity, the SP920 ranked at the bottom of the board, starting at 21,444IOPS and ending at 80,626IOPS. The M550 was the top performer here.

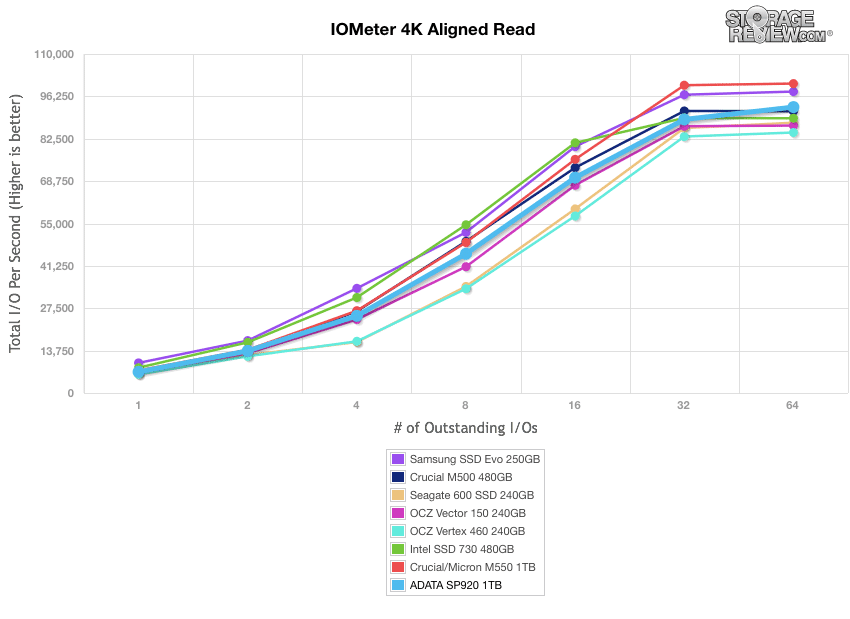

In the 4K aligned read category, the ADATA drive moved towards the middle of the pack, scoring respectable max IOPS of 92,770 though it still fell well short of the identical M550.
Our last series of synthetic benchmarks compare the hard drives in a series of server mixed-workloads with a queue depth of ranging from 1 to 128. Each of our server profile tests has a strong preference towards read activity, ranging from 67% read with our database profile to 100% read in our web server profile. In all of our mixed workloads, the SP920 SSD ranked near the middle and end of the pack.

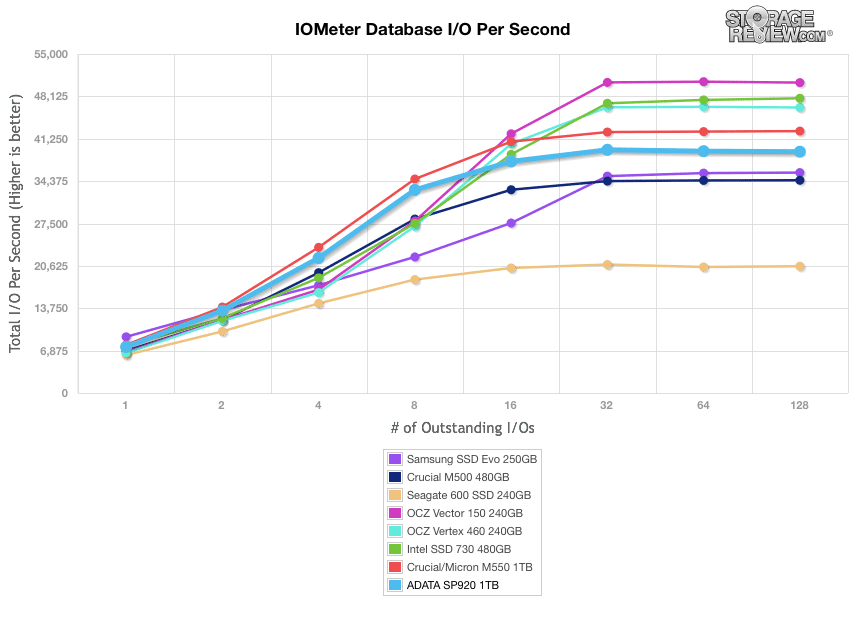

The first is our database profile; with a 67% read and 33% write workload mix primarily centered on 8K transfer sizes. For this benchmark, the SP920 posted a Q128 result of 39,149IOPS ranking in the middle once again.

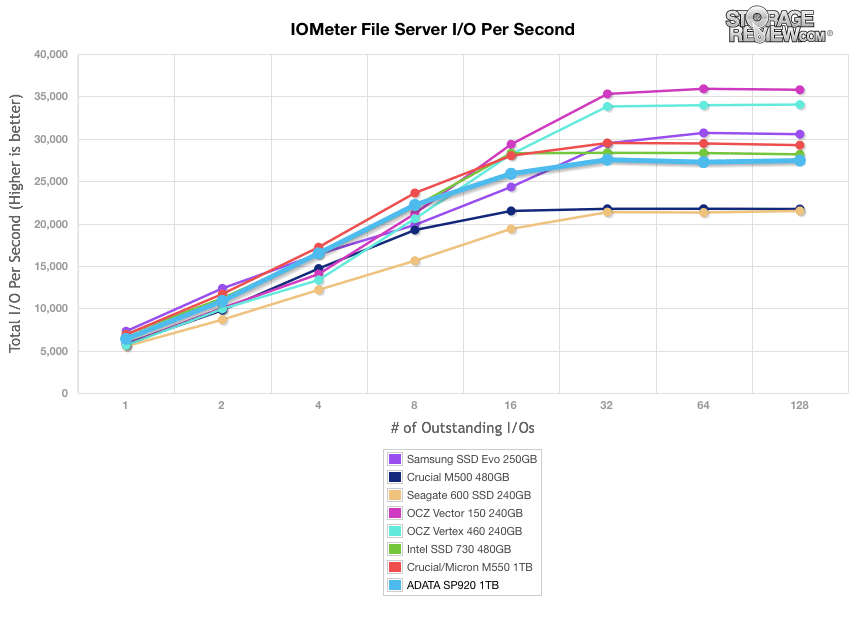

Our file server profile uses an 80% read and 20% write workload spread out over multiple transfer sizes ranging from 512-byte to 64KB. The SP920 scored a Q128 IOPS of 27,426.

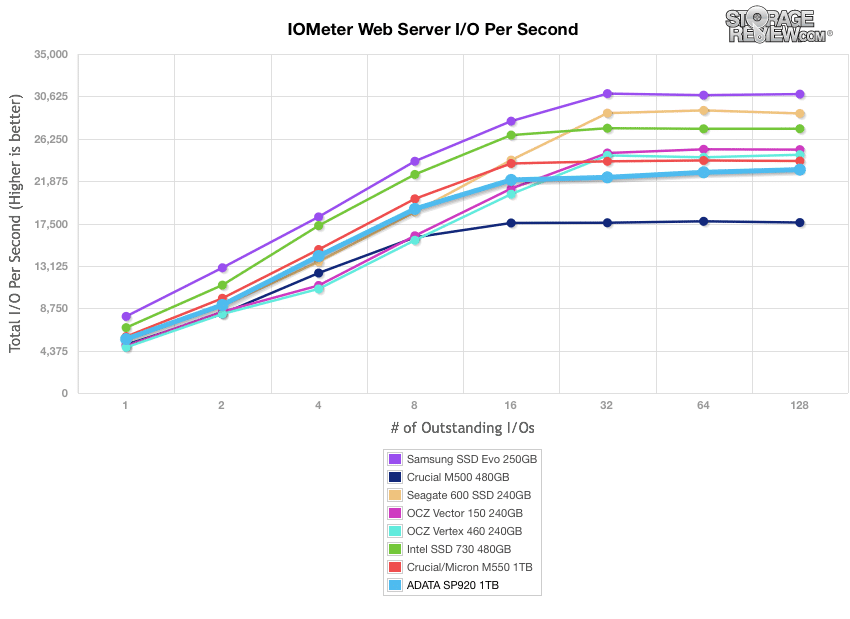

The web server profile is read-only and uses a spread of transfer sizes from 512-byte to 512KB. The SP920 SSD performed near the bottom of the pack in this category, boasting 23,062IOPS by the Q128 mark, very similar to the M550.

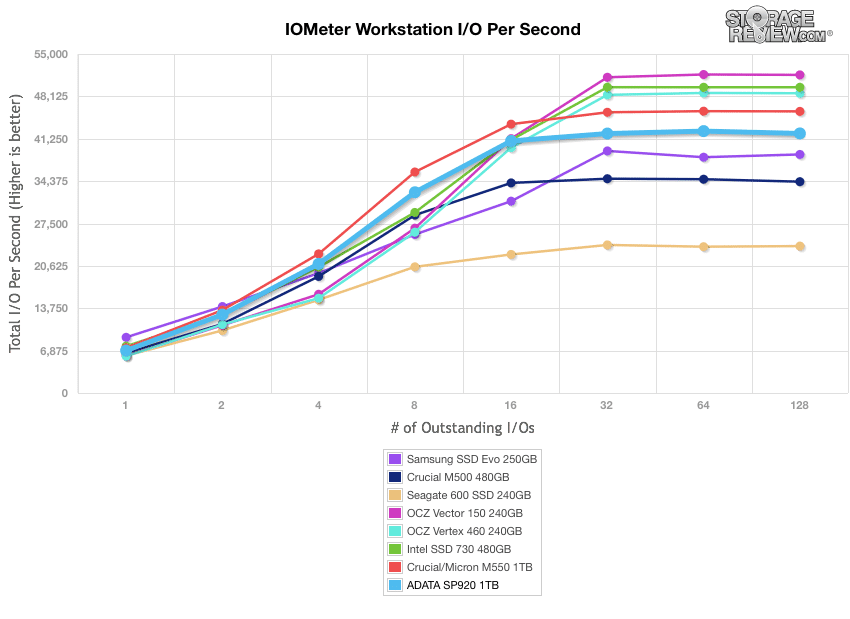

The last profile looks at workstation activity, with a 20% write and 80% read mixture using 8K transfers. By Q128, the SP920 boasted 42,109IOPS, which was among the middle echelon of its comparables.
Consumer Real-World Benchmarks
For the average consumer, trying to translate random 4K write speeds into an everyday situation is pretty difficult. It helps when comparing drives in every setting possible, but it doesn’t exactly work out into faster everyday usage or better game loading times. For this reason we turned to our StorageMark 2010 traces, which include HTPC, Productivity, and Gaming traces to help readers find out how a drive might rank under these conditions.

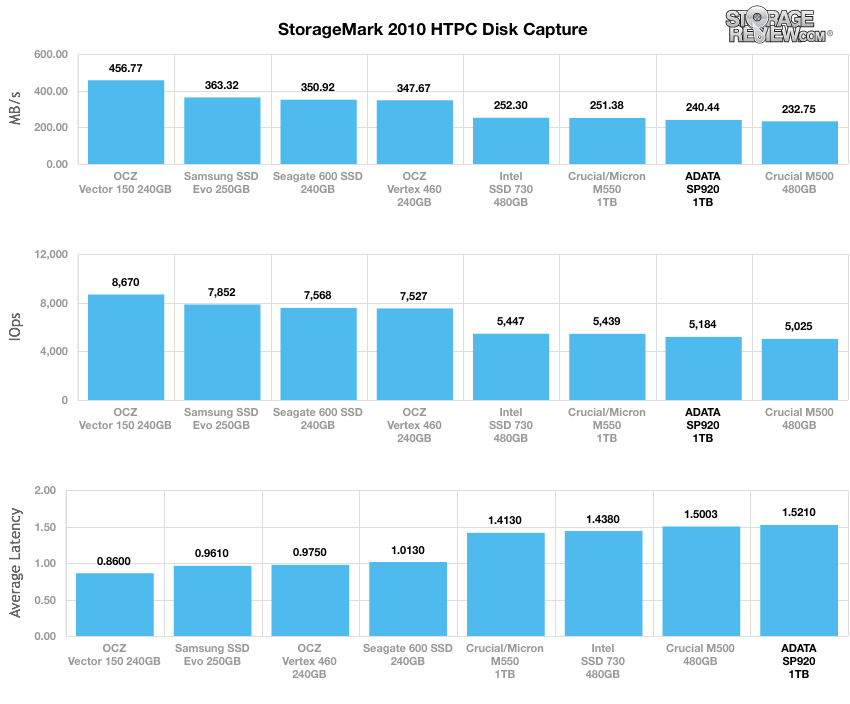

The first real-life test is our HTPC scenario, which includes: playing one 720P HD movie in Media Player Classic, one 480P SD movie playing in VLC, three movies downloading simultaneously through iTunes, and one 1080i HDTV stream being recorded through Windows Media Center over a 15 minute period. Higher IOps and MB/s rates with lower latency times are preferred.
In this profile, the SP920 ranked at the bottom of pack in all of the categories alongside the Crucial M500 with a transfer speed of 240.4MB/s, an IOPS of 5,184, and an average latency of 1.52ms. The M550 outperformed the SP920 here as well. Additionally, and as expected, the OCZ Vector had no trouble beating out all of the comparables.
Our second real-life test covers disk activity in a productivity scenario. For all intents and purposes this test shows drive performance under normal daily activity for most users. This test includes: a three hour period operating in an office productivity environment with 32-bit Vista running Outlook 2007 connected to an Exchange server, web browsing using Chrome and IE8, editing files within Office 2007, viewing PDFs in Adobe Reader, and an hour of local music playback with two hours of additional online music via Pandora.

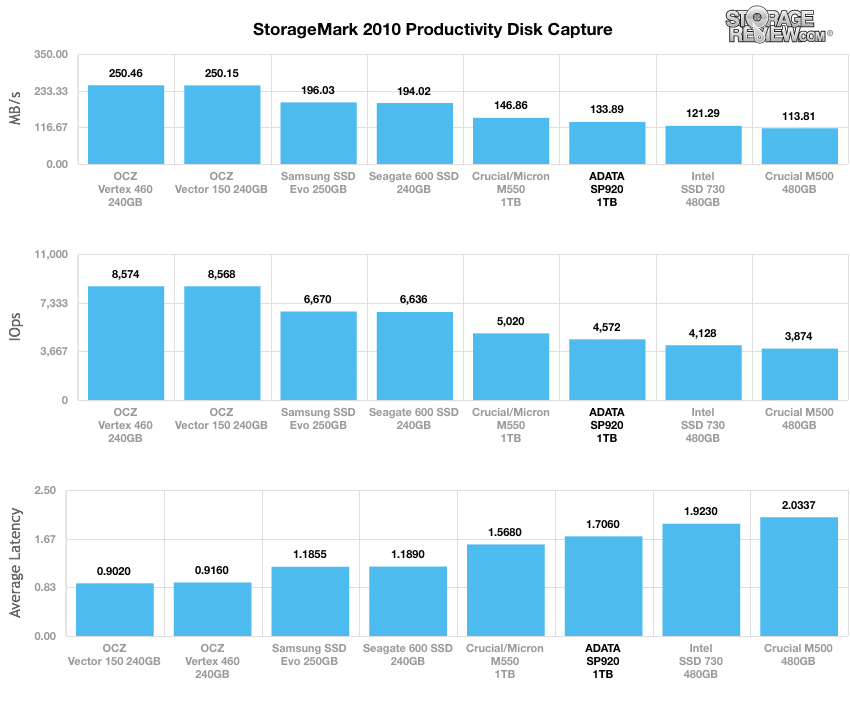

In our Productivity trace, the SP920 posted disappointing numbers–showing an IOPS of only 4,572 as well 133.9MB/s–just behind the M550.

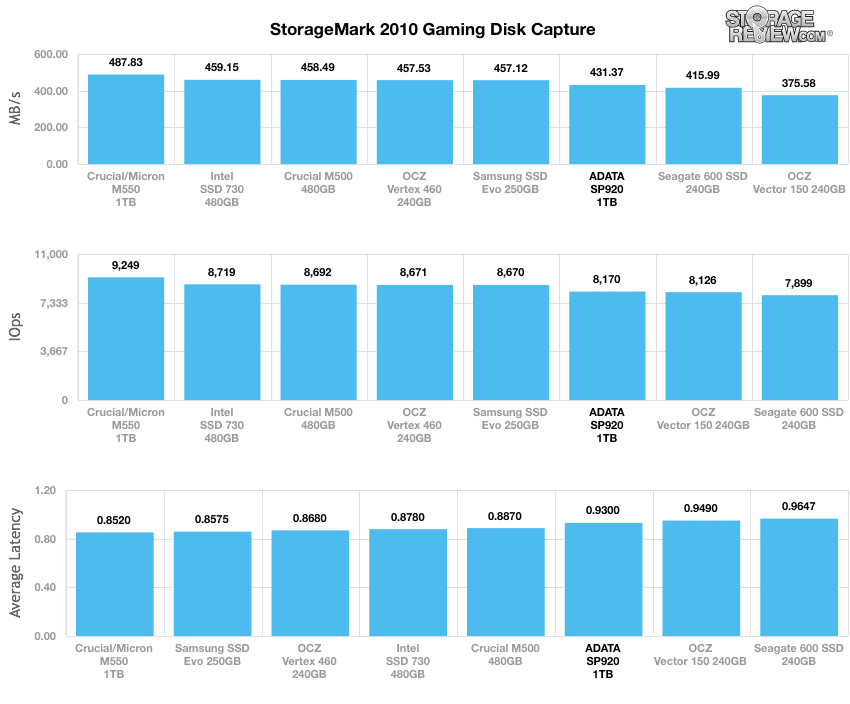

Our third real-life test covers disk activity in a gaming environment. Unlike the HTPC or Productivity trace, this one relies heavily on the read performance of a drive. To give a simple breakdown of read/write percentages, the HTPC test is 64% write, 36% read, the Productivity test is 59% write and 41% read, while the gaming trace is 6% write and 94% read. The test consists of a Windows 7 Ultimate 64-bit system pre-configured with Steam, with Grand Theft Auto 4, Left 4 Dead 2, and Mass Effect 2 already downloaded and installed. The trace captures the heavy read activity of each game loading from the start, as well as textures as the game progresses.
In our read-intensive Gaming trace, the SP920 posted results in the lower middle/bottom of the pack with an IOPS of 8170, an average latency of 0.93ms, and speed of 431MB/s. Its brethren, the M550, was the top performer here.
Power Consumption
Low idle power consumption, as well as their overall power management, is something that is important to many consumers as they spend much of their life-cycle in an idle state.

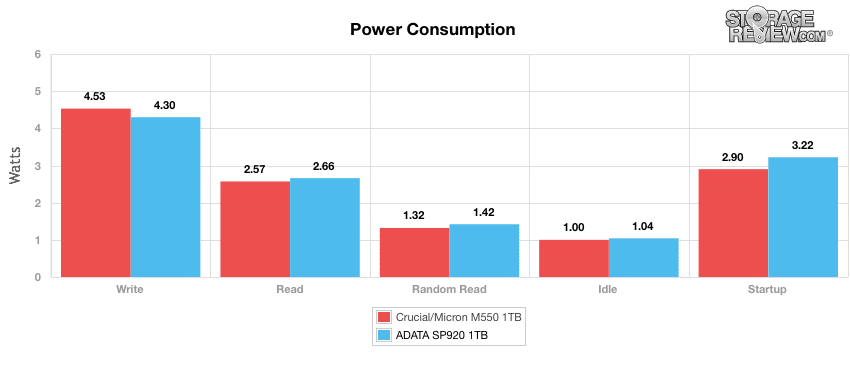

During our power tests, we recorded idle power consumption thr SP920 at 1.04W. During sequential write and read activity the drive scored 4.30W and 2.66W respectively.
Conclusion
ADATA claims that their Premier Pro SP920 2.5” SATA SSD is designed specifically for multimedia professionals looking for high-performance capabilities with large file transfers and is equipped with SATA 6Gb/s, 20nm NAND, and a new gen Marvell controller under the hood. Additionally, the SP920 is available in 128GB, 256GB, 512GB, and 1TB capacities.
When measuring the SP920 by its performance, it was a bit disappointing to see that the ADATA SSD posted results below par in many of our tests and usually towards the bottom of the pack, despite its decent hardware. In our real-world workloads, it ranked in the lower part of the leaderboard in all of the categories, especially in our productivity trace. When measuring it’s performance in single workloads, the SP920 placed a little bit better ranking in the middle, which remained in that way during our 4K tests. During our mixed workload performance benchmarks, the SP920 also ranked in the middle echelon of our rankings. As mentioned above, the SP920 is virtually the same as the Micron/Crucial M550 in specifications to the point that it’s likely that Micron is actually making the drives for them. That said, it’s odd to see ADATA’s iteration of the SSD perform, on average, 10 percent lower than it’s brethren; sometimes it’s even substantially lower. ADATA has suggested that this is a value play; however, its pricing is identical to the superior performing M550 for the 1TB model (the 128GB model is $10 less than Micron’s). This isn’t uprising since Micron (as well as Samsung) own their fabrication plants, which gives them every pricing advantage over ADATA. Unless ADATA drives down price or increases performance levels to that of the M550, it’s tough to recommend over its counterpart. On the other hand if pricing drops on the SP920, it becomes an attractive alternative to the Micron/Crucial M550.
Pros
- Micron/Crucial pedigree
- Reliable performance
Cons
- Falls behind its Micron/Crucial M550 counterpart
Bottom Line
With hardware under the hood shared with the Micron/Crucial M550, the ADATA Premier Pro SP920 comes into the market as a known quantity, although the performance dipped compared to same capacity M550.
