In today’s fast-paced, high-speed digital world, businesses need effective networking solutions to handle increasing data and bandwidth demands. The ECS5512F 12-port 10 Gigabit SFP+ half-rack aggregate fiber switch by EnGenius is a game-changer for large enterprises and various environments. This switch enhances network performance and easily scales to accommodate growth.
In today’s fast-paced, high-speed digital world, businesses need effective networking solutions to handle increasing data and bandwidth demands. The ECS5512F 12-port 10 Gigabit SFP+ half-rack aggregate fiber switch by EnGenius is a game-changer for large enterprises and various environments. This switch enhances network performance and easily scales to accommodate growth.
Specs and Highlights from EnGenius

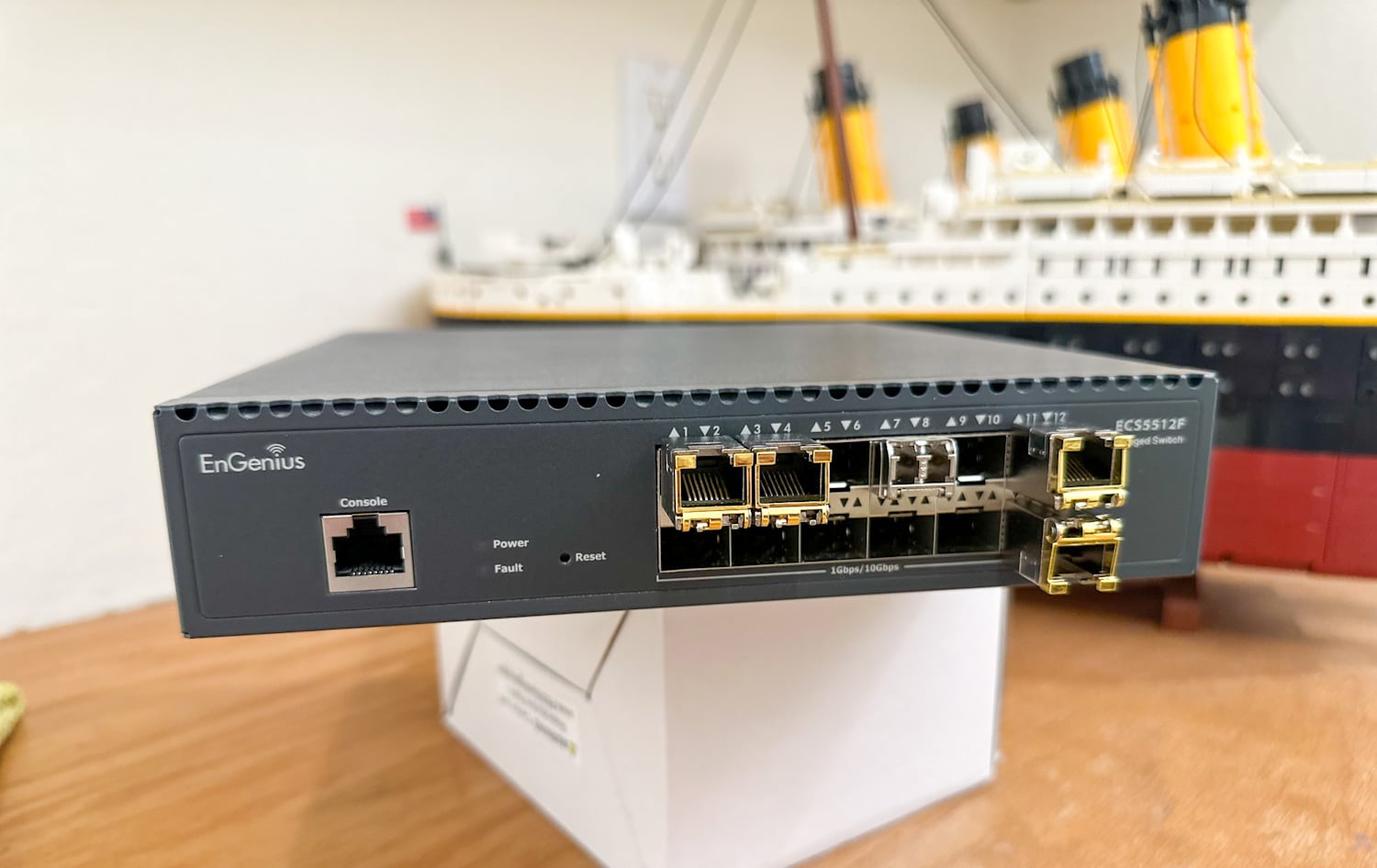

- Scalability and Space-Efficient Design: With 12 10 Gigabit SFP+ ports, the ECS5512F can expand to two switches per 1u of space in the rack, offering a total of 24 SFP+ ports in 1u.
- Full-Featured Layer 2+ Ethernet Switch: The ECS5512F is equipped with advanced features such as Access Control List/Port Security, 802.1X & RADIUS Authentication, and IGMP & MLD snooping, ensuring a secure and efficient network environment.
- High Switching Capacity: With 240 Gbps switching capacity, the ECS5512F maintains optimal network performance even under heavy workloads.
- Comprehensive Analytics & Remote Management: The ECS5512F provides real-time system metrics, deep-dive analytics, and remote configurations, enabling network administrators to monitor, troubleshoot, and optimize their network from anywhere.
- Quick-Scan Device Register: This feature allows for quick remote monitoring and troubleshooting, minimizing downtime and ensuring a seamless user experience.
- Advanced Network Topology Display: The Advanced View displays network topology with devices and their relationships, providing a clear overview of the entire network infrastructure.
- Multiple Management Options: The hybrid switch supports various management options, allowing administrators to choose the most suitable method for their specific needs.
- Enhanced Multicast Filtering & Network Efficiency: IGMP & MLD snooping delivers advanced multicast filtering, optimizing network efficiency by reducing unnecessary traffic.
- Traffic Load Balancing: The 802.3ad Link Aggregation (LACP) feature supports traffic load balancing, ensuring optimal utilization of network resources.
- Support for Spanning Tree (STP), Rapid Spanning Tree (RSTP), and Multiple Spanning Tree (MSTP) protocols.
- Voice VLAN Support: The switch is designed for fast and reliable deployment of VoIP services, ensuring smooth communication across your organization.
Unlocking Network Potential: Versatile Use Cases for the ECS5512F
The EnGenius ECS5512F 12-port 10 Gigabit SFP+ half-rack aggregate fiber switch is versatile and is designed to meet a range of networking needs, depending on the specific requirements of an organization.
This switch is an excellent choice for organizations that need to set up a standalone 10G network in a small rack. This could be beneficial for data-intensive applications such as video editing, artificial intelligence, medical imaging, or scientific research, where high-speed data transfer is essential. Here, the superior speed and 240 Gbps switching capacity of the ECS5512F can maximize productivity and efficiency.
On the other hand, the ECS5512F can also function as a trunk switch for multiple 1G switches, particularly in scenarios where organizations are gradually transitioning to higher bandwidth servers and workstations but still have legacy 1G infrastructure in place. Its high switching capacity and compatibility with a multitude of optics, and SFP+ copper modules make it ideal for handling the aggregated traffic from several 1G switches, efficiently managing bandwidth allocation.
Overall, the ECS5512F offers an ideal blend of performance, versatility, affordability, and ease of use, making it a highly viable solution for a broad range of networking scenarios. Whether as part of a cutting-edge 10G network or as a trunk switch in a mixed-speed environment, it delivers robust and reliable performance that can meet the demands of the modern digital landscape.
Cloud Management and App Integration
EnGenius Cloud To-Go is a mobile app networking solution tailored for small businesses, providing easy and efficient network management through a user-friendly mobile app. The app offers a simple deployment process, fast guest network setup, customizable Wi-Fi policies, quick and secure connections, real-time monitoring, and multi-site management.
EnGenius Cloud To-Go supports an array of connected hardware like cloud-managed access points and switches, all managed through a feature-rich and intuitive dashboard.

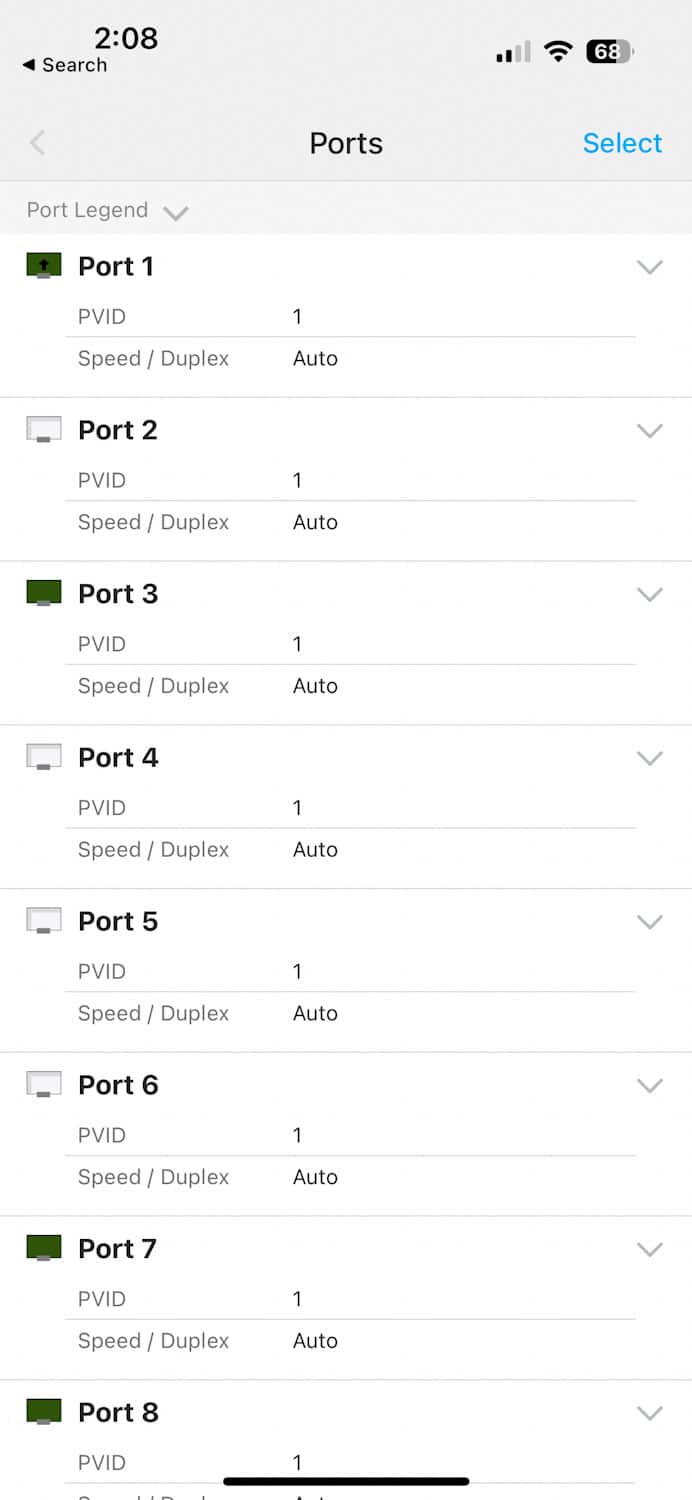

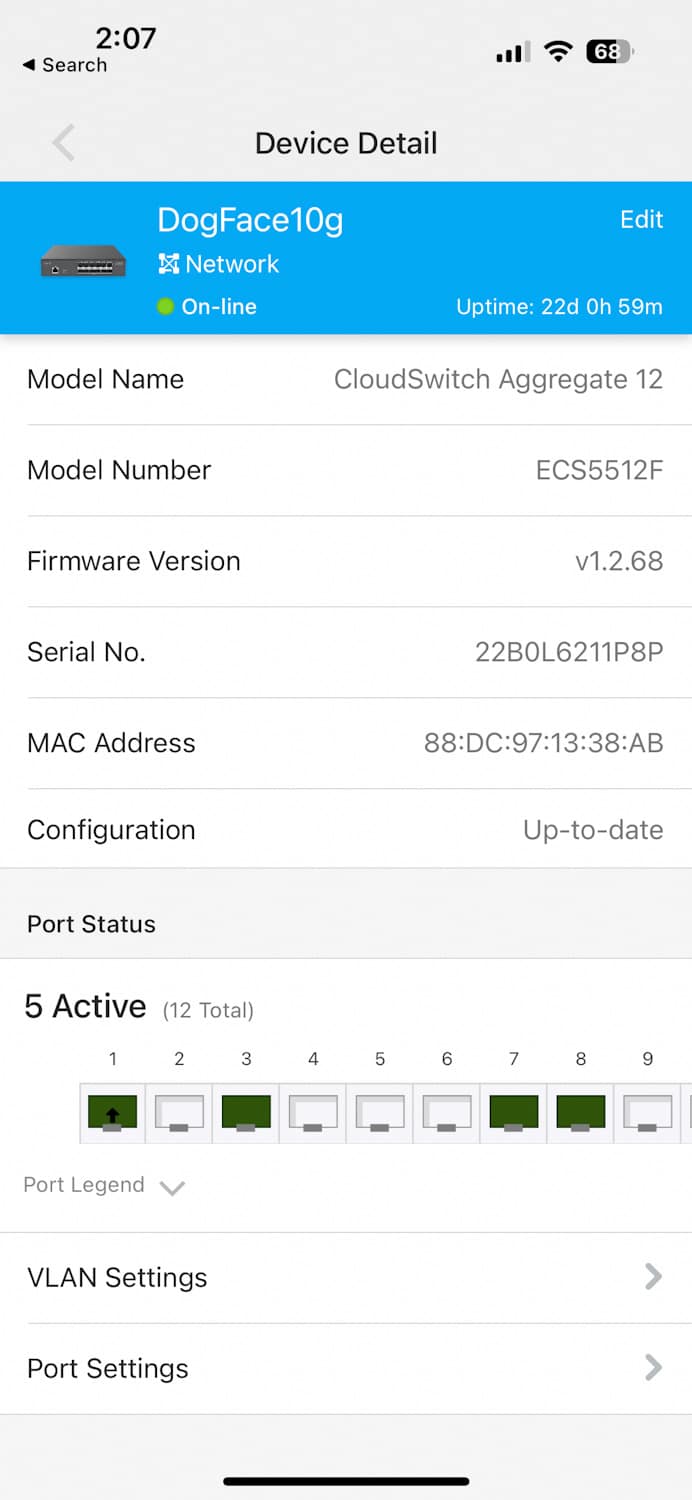

The EnGenius Cloud-managed ECS5512F switch provides a quick setup, real-time system metrics, deep-dive analytics, and remote configuration features. These features enable administrators to monitor and troubleshoot the network remotely, saving them time and effort. Additionally, the quick-scan device register and advanced view display network topology with devices and relationships, making it easier to manage the network.
Deployment in The Field Lab

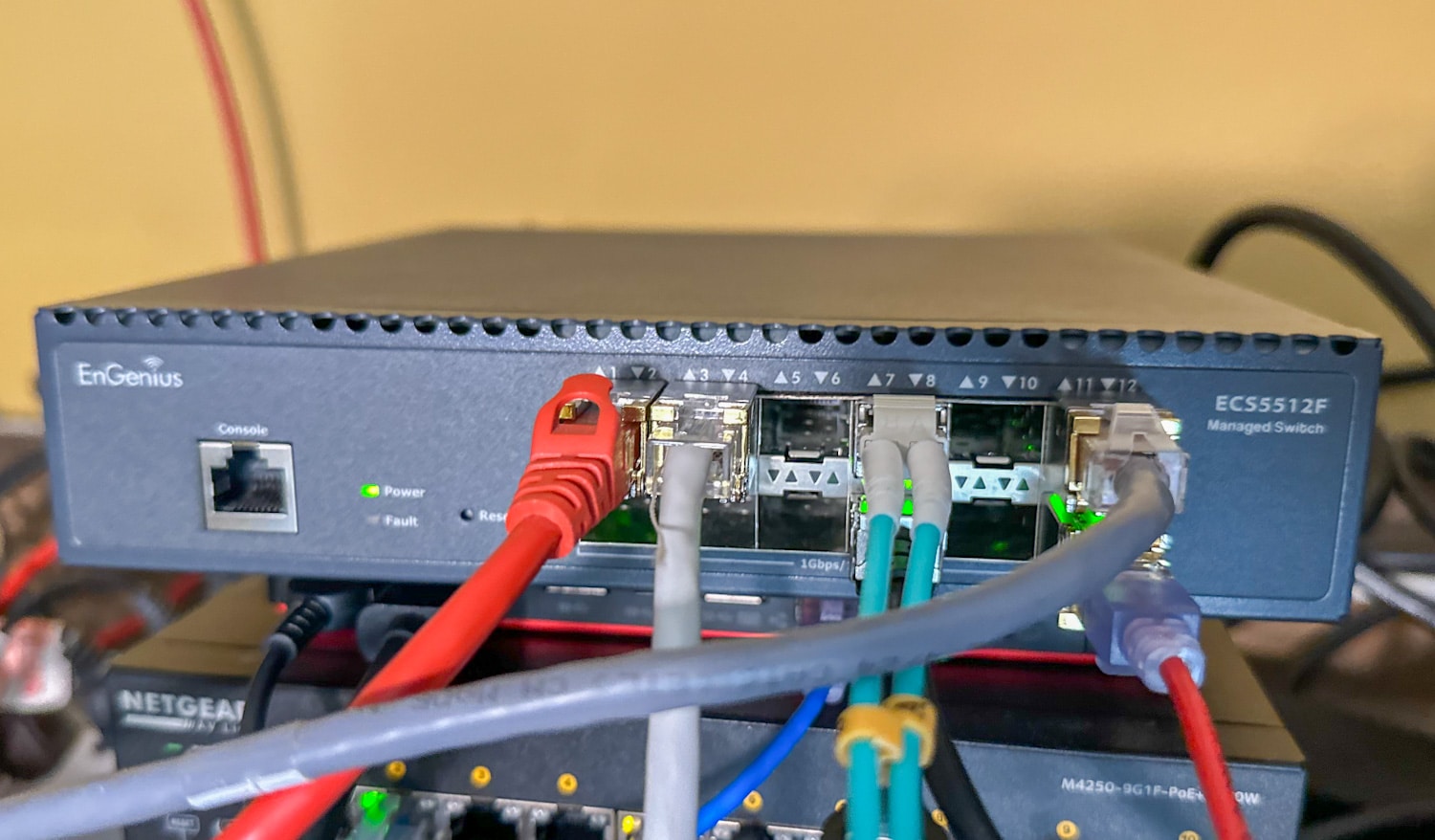

We deployed the ECS5512F in our field lab a couple of months ago to move 10g networking to the other side of the building. With a 2.5 gig internet connection and most of the field lab being 10g in the rack, this switch fit right in. It’s worth noting that aside from the initial setup, the switch has performed flawlessly without any issues, requiring no attention – something we greatly appreciate. As seasoned IT professionals know, having reliable equipment is crucial as deployments expand.

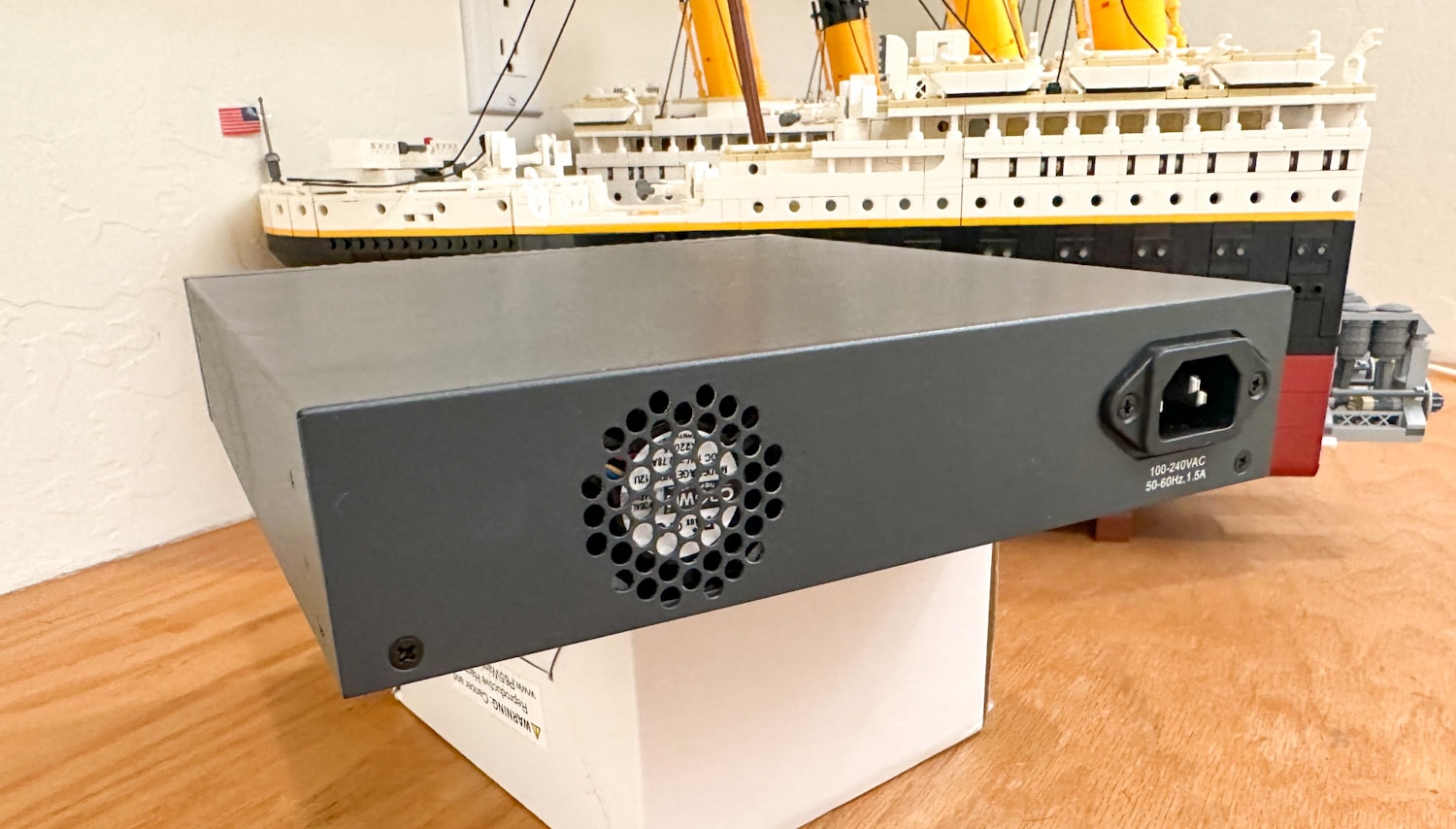

The EnGenius ECS5512F switch proved to be not only efficient in its performance but also in its physical characteristics. The device maintained an acceptable sound level even under high load, making it suitable for an office environment where noise reduction is crucial. Additionally, it remained only mildly warm to the touch, indicating efficient thermal management. This attribute typically aligns with lower power consumption, suggesting that the ECS5512F, while delivering high performance, also promotes energy efficiency.
We assessed the switch’s performance using various SFP modules, including fiber, copper, and direct-attached copper from multiple vendors. The switch demonstrated excellent connectivity and speed negotiation, effectively supporting the field lab’s backbone. We conducted tests involving multiple file transfers, such as full system backups to tape. The expansion of 10-gigabit networking proved beneficial, and the EnGenius switch was easily integrated into the mixed-vendor environment, enhancing the speed of servers and backup appliances.
Additionally, we tested workstations with 2.5-gigabit ethernet using a 10GTEK branded SFP-to-RJ45 adapter. The switch successfully negotiated the speed and facilitated the workstation’s integration into the high-speed network. In today’s era of high-performance SSDs, 1-gigabit line speed is increasingly becoming a bottleneck, making the 2.5-gigabit upgrade for field lab workstations a valuable time-saver.
Closing Thoughts
The EnGenius ECS5512F 12-port 10 Gigabit SFP+ half-rack aggregate fiber switch has proven to be a solid addition in the realm of network management and optimization at an affordable price, $768 on the EnGenius store at the time of publishing. Its multitude of advanced features, high switching capacity, comprehensive analytics, and remote management capabilities, coupled with its scalability and efficient design, offers a robust, reliable, and feature-packed solution that meets the dynamic demands of modern network environments.
The EnGenius Cloud To-Go mobile app simplifies the management of such sophisticated hardware, making it accessible to small businesses. Its user-friendly interface and advanced features make it even more appealing. The successful deployment of the ECS5512F in our field lab further cements its reputation as a potent networking solution. Its seamless integration and performance enhancements underscore its value, positioning it as a powerful tool that can significantly improve business efficiency and productivity. In a rapidly evolving digital landscape, having such a resource at your disposal can be a true game-changer.
