The SurgeX Axess Elite (SX-AX20E) is a single rack-space 120V 20 amp (also available in 15 amp) AC power conditioner that works as a web-enabled power conditioning and energy management system, offering businesses advanced energy management as well as much needed surge protection. SurgeX is widely known as the leader in power conditioning and surge protection technology for quite some time now, as their product line protects mission critical equipment from AC surges and electrical transients, all of which have potential to disrupt performance, reliability, and even do irreparable damage.
We don’t review a lot of SurgeX products, though we certainly leverage the technology as much as we possibly can. As such, the Axess Elite adds a ton of versatility to market as it allows users to monitor, control and manage power distribution settings and control individual outlets in addition to observing power usage. It offers SurgeX’s pedigree in protection, comprehensive energy management, and two-way communication with all IP-enabled products on the network. The Axess Elite also has significant programming capabilities, giving users the ability to set up both sequencing and scheduling.
SurgeX has designed the system so that up to 16 Axess Elites maximum can be linked together and controlled from a single web interface. The master system can communicate with users and receive status information pertaining to the other Axess Elites in the daisy chain. In addition, you can control power on an outlet level, turn outlets on and off, and control expansion units from the master unit. You can also collect and internally log temperature, voltage measurements, and current draw measurements. SurgeX also indicates that it has zero let through to the neutral or ground, which is the spike voltage that causes the surge protector to divert unwanted energy from the protected line.
SurgeX Axess Elite Specifications
- Load Rating: 15/20 Amps at 120 Volts (SX-AX15E / SX-AX20E)
- Power Requirement (no load): 5 Watts
- Surge Let-through Voltage (6000 Volt Surge): 0 Volts
- UL 1449 Adjunct Classification Test Results: 1000 Surges, 6000 Volts, 3000 Amps, B3 pulse; measured suppressed voltage, 170 Volts; no failures
- Maximum Applied Surge Voltage: 6000 Volts
- Maximum Applied Surge Current: Unlimited (due to current limiting)
- Maximum Applied Surge Energy: Unlimited (due to current limiting)
- Endurance (C62.41-1991 category B3 pulses): 1 KV > 500,000; 3 KV > 10,000; 6 KV > 1000
- EMI/RFI Filter
- Normal mode (50Ω load): 40 dB@100 KHz, 50dB@300 KHz, 50 dB@3 MHz, 50 dB@30 MHz
- Common Mode (50Ω load): 18dB@300 KHz, 30 dB@1 MHz, 50 dB@5 MHz, 50 dB@20 MHz
- Under-Voltage Auto Shutdown: Adjustable from 80V to 110V, or disabled.
- Over-Voltage Auto Shutdown: Adjustable from 130V to 160V
- Over-Current Auto Shutdown: Adjustable from 1A to 20A, or disabled.
- Over-Temperature Auto Shutdown: Adjustable from 70 to 100°F, or disabled.
- Measurement Accuracy
- Voltage: ± 1% from 90 – 160 VRMS
- Current: ± 1% from 0.1 – 20 ARMS (Resistive)
- Power: ± 5% from 0.1 – 2400 WRMS (Resistive)
- Energy: ± 5% kWh
- Temperature: ± 5.3C from -25 – 105C
- Network Port: 10/100 Ethernet connection on Female RJ-45, Auto Negotiating with 10/100/1000 network connections with Link and Activity LEDs
- Serial Port: RS-232 on Female 9-pin D-subminiature, DCE
- Temperature Sensor Input: 2 x screw terminal
- Auxiliary Relay Outputs: (2) 3 x screw terminal
- Contact Closure Input: 2 x screw terminal
- Dimensions: 19” W x 12.25” D x 1.75” H (Single Rack Space)
- Weight: 13 lb.
- Temperature Range: 5C to 35C
- Humidity Range: 0% to 95% R.H. Non-condensing
Design and build

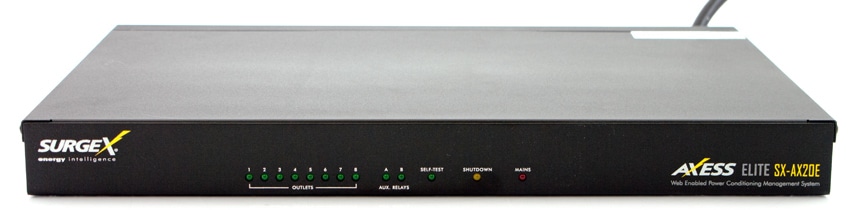

SurgeX Axess Elite has a very solid build and is comprised of a sleek, black metal chassis. The system weighs a substantial 12 pounds, which allows it to take any bumps and bruises that may occur with any falls, moving, or installation. The SurgeX logo and slogan is located on the left side of the front panel while the Axess Elite and product number is located on the right.
The front panel is host to numerous LEDS indicators for the eight outlets located on the back. This includes the On/Off status (green), two Auxiliary Relay Latch/Unlatched status (green), Shutdown status (amber) and AC mains power (red) LEDs.

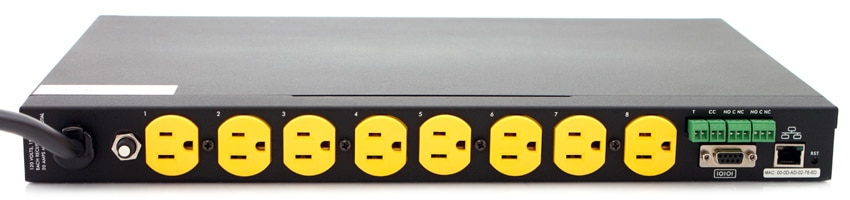

On the rear panel of the SurgeX Axess Elite are the input power cord, circuit breaker (20A with our model), 8 NEMA 5-15 outlets, Serial connection (DCE, 9 pin D-subminiature), Network connection (RJ-45), temperature sensor input, Contact closure input, Auxiliary Relay A/B output connections, and a recessed Reset button.
Usability
With Axess Elite web-based management tool, you can customize, synthesize, and monitor individual outlets and power settings from anywhere that has an internet connection. With it, users can manage control expansion units via the master unit as well as monitor the system's energy consumption by each connected device. Technicians can also perform a remote hard reboot when equipment lock up or schedule automatic triggers to AutoPing devices. This certainly helps to reduce the inherent time and costs that comes with sending a technician onsite for simple issues such as these. With this interface, you can also gather rack temperature, voltage, and current draw measurements and create a history log file for advanced monitoring.

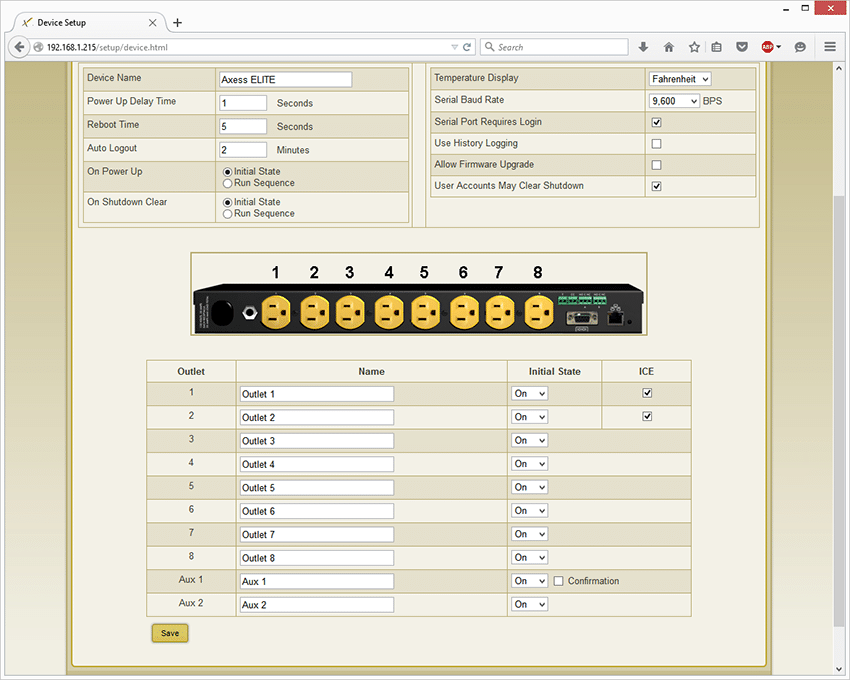

The Device Setup section allows users to specify the basic device parameters including the Device name, power up delay time, reboot time, and temperature display. A reboot needs to be performed after saving any change, as the page will show a “Reboot Required” button at the bottom of the section.
Outlets and Aux Relays can be turned on, of, rebooted (16 Axess units maximum, 1 master and 15 expansions). Additionally, to have the rights to control the outlets of the expansion units, SurgeX indicates that an identical version of the user’s name and password must be programmed into each expansion Axess Elite. When this is set up, they can be remotely managed by the user.

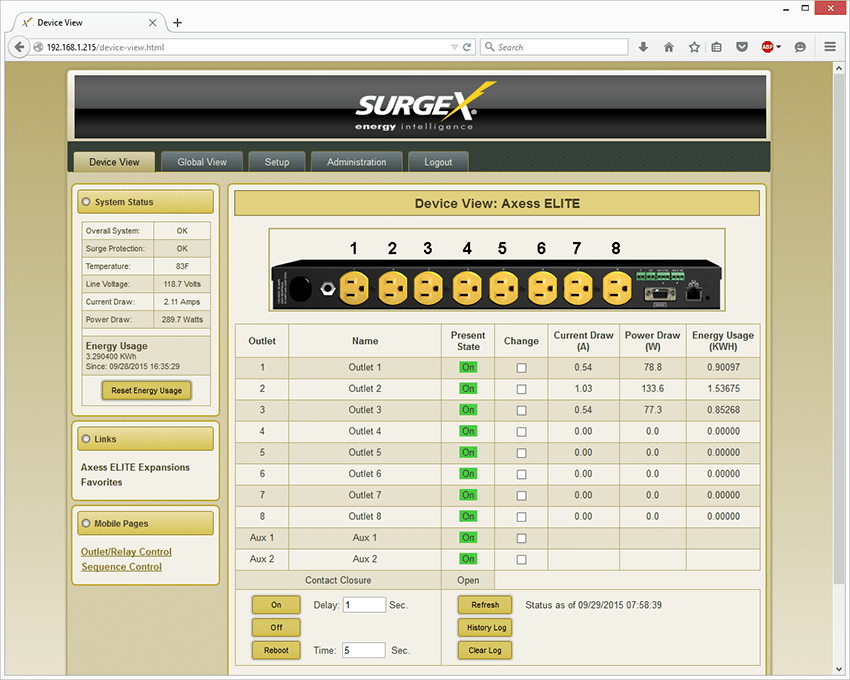

The Device View page displays information and the status for the whole unit at the top left as well as individual outlets and their basic control. Users can refresh the status information by simply clicking the Refresh button. Each outlet has their name, present state, current draw, power draw and energy usage neatly displayed in rows.
Mobile page links are located at the bottom left, just below the Links section. Contact input’s status is also shown.

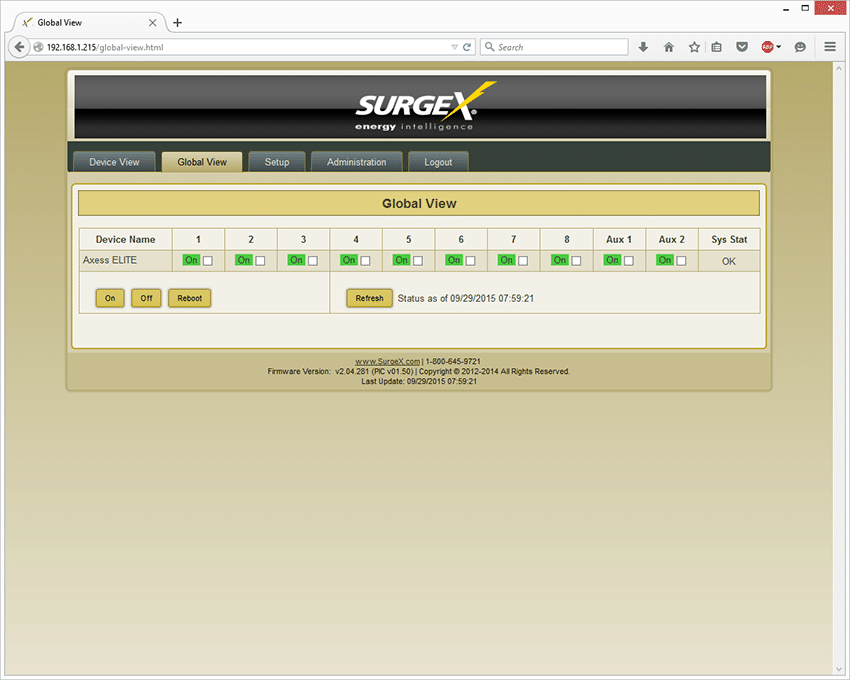

The Global View page provides users with the current outlet statuses for both the Axess Elite and its expansion units. Up to 15 expansions units can be set up on the Links Setup page.
Outlets and Aux Relays can be turned on, of, rebooted (16 Axess units maximum, 1 master and 15 expansions). Additionally, to have the rights to control the outlets of the expansion units, SurgeX indicates that an identical version of the user’s name and password must be programmed into each expansion Axess Elite. When this is set up, they can be remotely managed by the user.

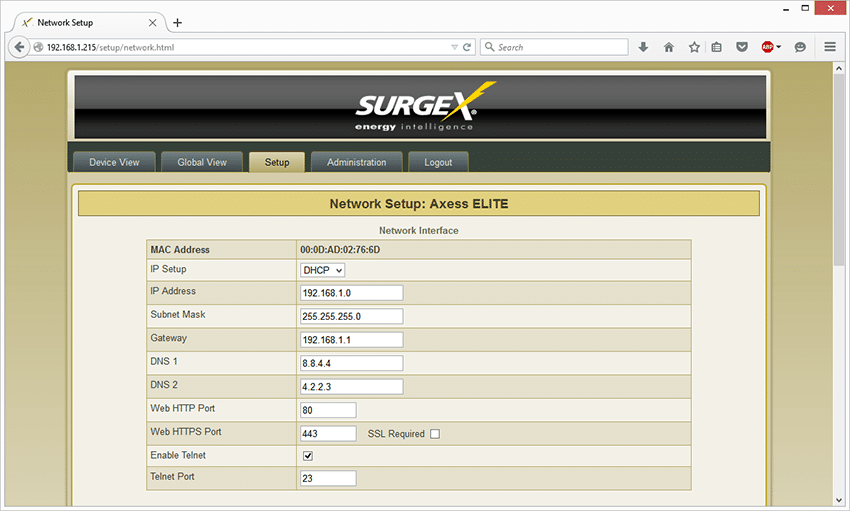

The Network Setup page allows users to input network setting, such as the network adaptor, email, time keeping, and IP set up. Like the Device Setup, a reboot needs to be performed after making and saving any change; a “Reboot Required” button at the bottom of the section.
Conclusion
The SurgeX Axess Elite is a very efficient and well-functioning AC power conditioner all the while leveraging a web-based management system that offers advanced energy management and fantastic surge protection. SurgeX has been the frontrunner is power conditioning and surge protection technology, and it certainly shows with Axess Elite and its easy-to-use, yet feature-rich interface. The single rack-space 120V 20 amp AC power allows users to monitor, control and manage power distribution settings and control individual outlets in addition to observing power usage. In addition, it gives businesses and home offices protection, comprehensive energy management, and two-way communication with all IP-enabled products on the network. SurgeX also allows up to 16 Axess Elites can be linked together and controlled from a single web interface.
The interface itself works very well and is pretty easy to use. Since it is a web-based application, it can be used remotely from anywhere, which eliminates the need to sending a technician on site. This helps to reduce a significant amount of costs.
Pros
- Powerful, easy-to-use Interface
- Rugged, quality build
Cons
- Not offered in 240 volt version
Bottom Line
The SurgeX Axess Elite offers businesses with a very efficient and well-designed AC power conditioner, which leverages a powerful interface that can be accessed remotely.
