The Ubiquiti Dream Machine Pro Max is a high-performance network controller built for large-scale deployments.
The Ubiquiti Dream Machine Pro Max is an updated cloud gateway designed for large-scale deployments, delivering high performance and robust security for demanding environments. With support for thousands of client devices, the Pro Max excels at handling complex networking tasks, featuring 5 Gbps routing with full deep packet inspection (DPI) and intrusion prevention (IPS) enabled. Its RAID-enabled storage adds an extra layer of data protection, making it a versatile solution for businesses seeking scalability and reliability. Ideal for larger UniFi installations, the Dream Machine Pro Max bridges the gap between performance and simplicity.
At the time of this review, the Ubiquiti Dream Machine Pro Max was shipping at a street price of $599.00 via the Ubiquiti Store (affiliate link).
| Ubiquiti Dream Machine Pro Max Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″) |
| Weight | 4.7 kg (10.4 lb) |
| Enclosure material | Aluminium CNC, SGCC steel |
| Mount material | SGCC steel |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A57 at 2.0 GHz |
| System memory | 8 GB DDR4 |
| On-board storage | 32 GB eMMC, Integrated 128 GB SSD |
| Management interface | Ethernet, Bluetooth |
| Networking interface | LAN: (8) GbE RJ45 ports, (1) 10G SFP+ port WAN: (1) 2.5 GbE RJ45 port, (1) 10G SFP+ port |
| IDS/IPS throughput | 5 Gbps |
| Power | |
| Power method | (1) Universal AC input, 100–240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A |
| Power supply | AC/DC, internal, 100W |
| Supported voltage range | 100–240V AC |
| Max. power consumption | 100W |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| Display & Button | |
| LCM display | (1) 1.3″ touchscreen |
| Button | Factory reset |
| Environmental | |
| Ambient operating temperature | -10° to 40° C (14° to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN WireGuard, L2TP, and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| LEDs | |
| Ethernet | Green: link/activity |
| SFP+ | Green: link/activity |
| HDD | White: disk activity, Amber: disk error |
| RPS | Blue: ready |
Ubiquiti Dream Machine Pro Max – What’s New?
The Dream Machine Pro Max offers a significant improvement in processing power. A quad-core ARM Cortex-A57 processor clocked at 2.0 GHz delivers a solid performance boost, especially for managing high-demand network tasks. This upgrade ensures smoother and more efficient operations in environments with thousands of connected devices—an essential benefit for administrators handling complex, data-heavy networks.

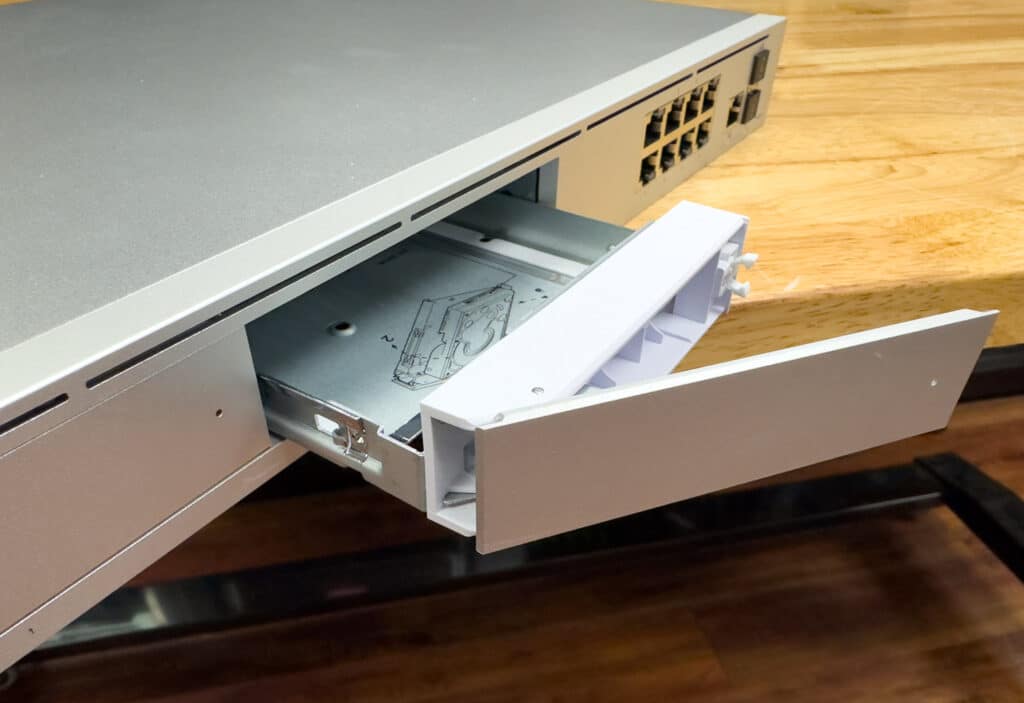

Another valuable addition is RAID-enabled storage support, which was missing in the previous single-bay models. Now, you can configure RAID1 for added data redundancy, providing an essential layer of protection against data loss. The hard drives inside the UDM platforms are leveraged for UniFi Protect, their surveillance suite, when paired with different Ubiquiti cameras.
The Pro Max also introduces a 2.5 GbE WAN port alongside the 10G SFP+ WAN port, offering increased flexibility in connecting to your ISP and future-proofing for network upgrades. On the LAN side, it includes eight Gigabit Ethernet ports and an additional 10G SFP+ port, supporting a wide range of devices from standard connections to high-speed network storage.
These new enhancements make the Pro Max a more versatile solution for managing complex, high-performance networks.
Ubiquiti Dream Machine Pro Max Hardware and Performance
Beyond these improvements, the device has 8GB of DDR4 RAM, 32GB of eMMC onboard storage, and an integrated 128GB SSD. The eMMC storage typically handles the operating system and essential system files, ensuring quick boot times and reliable performance. The 128GB SSD provides additional space for applications, logs, and other data.
The Pro Max device includes both Ethernet and Bluetooth management interfaces for connectivity and management. The Ethernet port allows for traditional wired management, which is reliable and straightforward. The addition of Bluetooth is a handy feature for initial set-up or situations where accessing the device physically might be challenging. Using the UniFi Network app on your mobile device, you can perform basic configurations over Bluetooth, making the setup process more flexible and convenient.
The Pro Max also features a universal AC input that supports 100–240V AC and a USP-RPS DC input for redundant power supply options. A backup power source is always handy in environments where network uptime is critical. The redundant power kicks in immediately if the main power supply fails, ensuring the network remains operational. Moreover, maximum power consumption of 100W strikes a nice balance between performance and energy efficiency, which can sometimes lessen operational costs.
The Dream Machine Pro Max is built to handle a wide range of conditions, working in temperatures from -10°C to 40°C (14°F to 104°F) and managing humidity levels from 5% up to 95% non-condensing. This flexibility makes it ideal for everything from climate-controlled data centers to tougher industrial environments.
Ubiquiti Dream Machine Pro Max Design and Build
The Dream Machine Pro Max maintains the same sleek, professional aesthetic that Ubiquiti is known for; however, there are some noticeable design updates. The enclosure is made from aluminum CNC and SGCC steel, giving it a sturdy feel and improved heat dissipation. This choice of materials helps to ensure the device stays cool and performs optimally, even under heavy workloads.
It also features a new 1.3-inch touchscreen display on the front panel, which provides real-time information on network performance, device status, and alerts. This handy addition lets you monitor your network at a glance without diving into the web interface. The HDD activity and error LEDs have also been redesigned for better visibility, making it easier to spot any issues quickly.

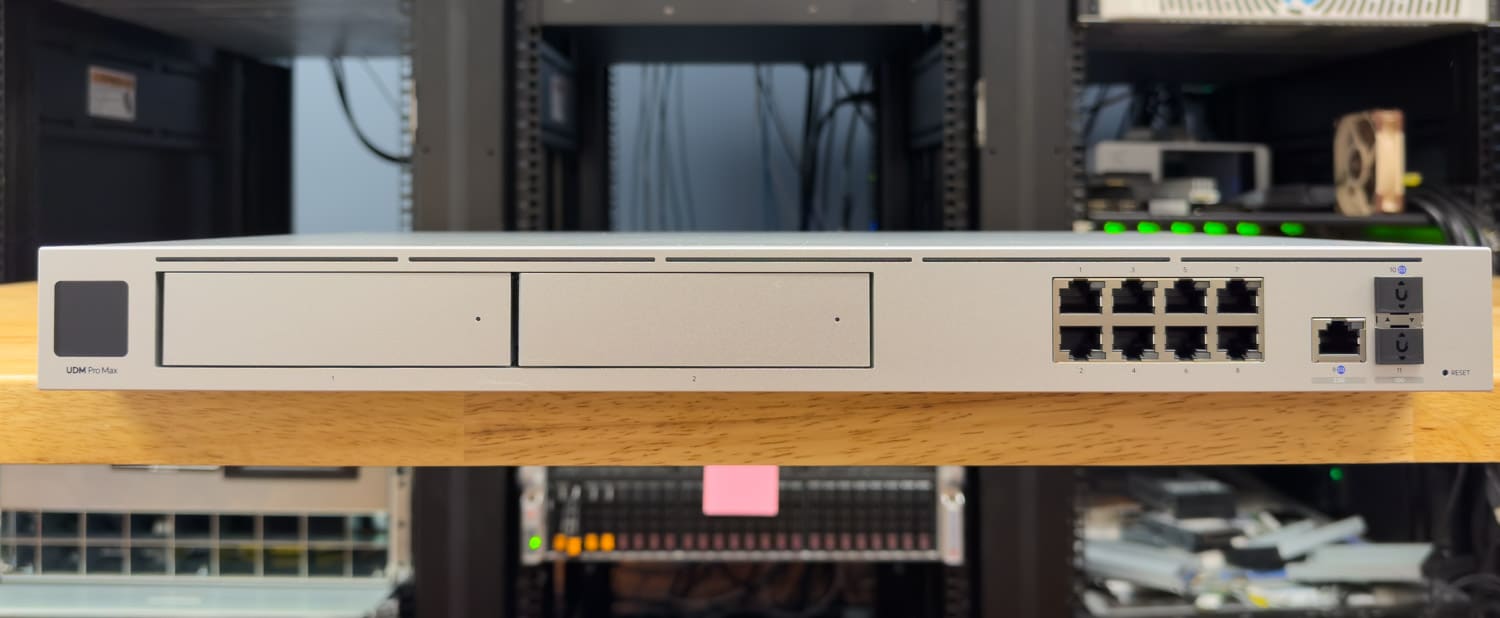

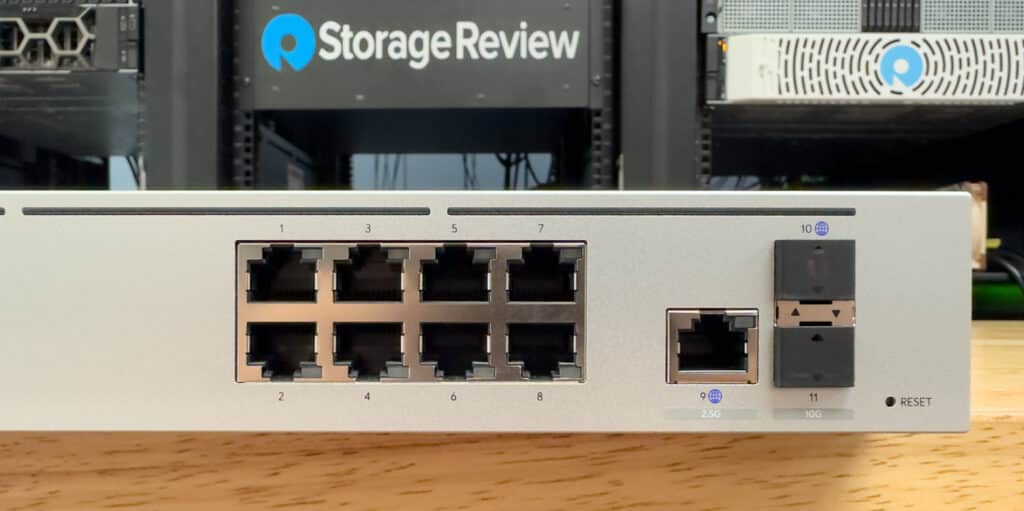

The front panel features eight Gigabit Ethernet LAN ports for connecting various wired devices like switches, access points, and servers. A 10G SFP+ LAN port is also available for high-speed connections, ideal if you’re dealing with large data transfers or need a fast uplink to another network segment. The 2.5GbE RJ45 WAN port and a 10G SFP+ WAN port are also located on the front of the device.

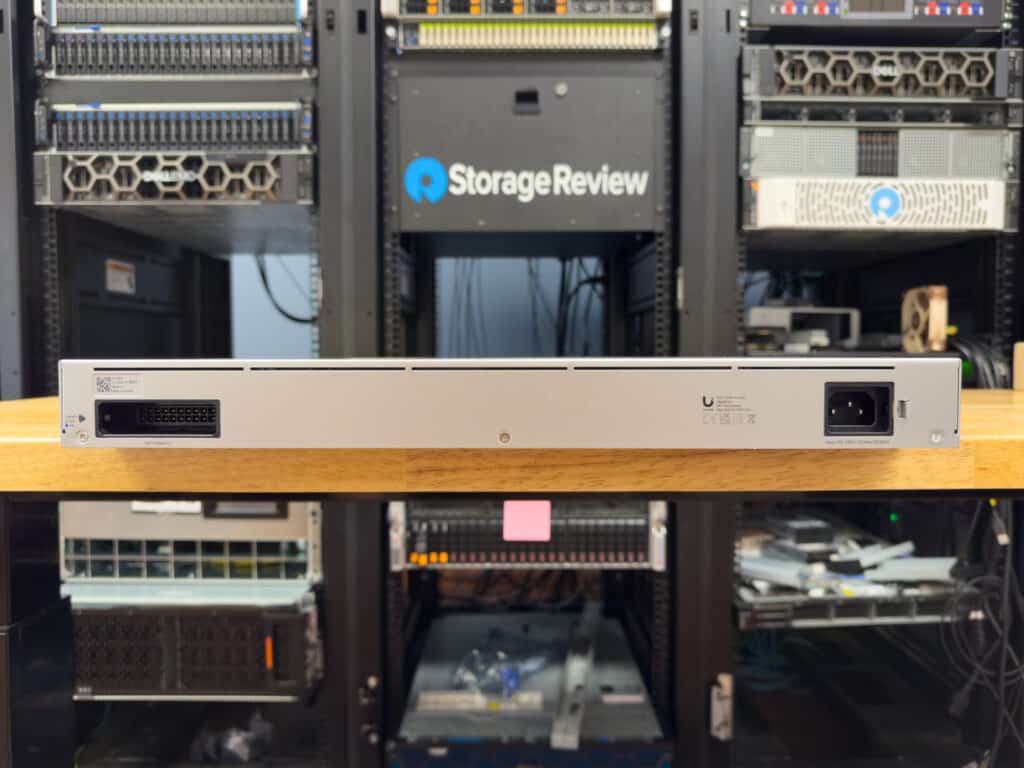

The power input is on the back panel, accommodating the universal AC input (100–240V AC) and a USP-RPS DC input. The rear also includes ventilation openings designed for optimal airflow, which work with internal cooling systems to dissipate heat generated by the main components.
Ubiquiti Dream Machine Pro Max and Beyond
The Ubiquiti Dream Machine is one of the top building blocks for individuals or businesses looking to enter the Unifi networking ecosystem. With onboard storage for UniFi Protect, 2.5G and 10G WAN support, and an 8-port 1GbE switch with a 10GbE uplink, it gives you everything you need to start building your network. We will explore the different components from Ubiquiti we’ve deployed in recent months, which have included their UDM Pro Max, UDM NVR Pro, ProMax 48 PoE switch, Wifi-7 APs, and an assortment of security cameras.
The Ubiquiti ecosystem offers the best mix of hardware and management software for power users and businesses. It is easily managed from desktops and mobile platforms and spans components ranging from routers to switches to WiFi access points and everything in between. The best part, though, is that the management and software packages are offered at no ongoing cost, which is a huge plus for users starting out.
Overall, the Ubiquiti Dream Machine Pro Max significantly improves the UniFi ecosystem, offering high-performance networking with enhanced security, flexible WAN options, and RAID-enabled storage. Whether for business or power users, the Pro Max delivers a well-rounded solution that integrates seamlessly with Ubiquiti’s ecosystem, offering robust features without the burden of ongoing costs.
