Explore Ubiquiti UniFi WiFi 7 Access Points for unmatched speeds, capacity, and reliability in high-density networks.
Ubiquiti’s UniFi access points have long been an iconic benchmark in professional networking. Now, Ubiquiti introduces the U7 Pro XG and U7 Pro XGS, furthering WiFi 7 performance in the UniFi ecosystem. These flagship APs deliver multi-gigabit speeds, high device capacity, and seamless UniFi integration, ensuring reliable connectivity for demanding environments. The U7 Pro XG features a 6-stream WiFi 7 design, while the U7 Pro XGS upgrades to 8-stream WiFi 7, incorporating an independent spectral scanning radio for enhanced interference detection and channel optimization.
To complement this release, Ubiquiti is also expanding its XG switching lineup with multi-gigabit 10GbE PoE and Non-PoE switches designed to support modern network deployments with both value and premium options. At launch, the U7 Pro XG is priced at $199, while the U7 Pro XGS is available for $299.
U7 Pro XG & XGS Specifications
| Mechanical | U7 Pro XG | U7 Pro XGS |
| Dimensions | Ø206 x 32.5 mm (Ø8.1″ x 1.3″) | Ø215 x 32.5mm (Ø8.5″ x 1.3″) |
| Weight | 750g (1.7 lb) | 800g (1.8 lb) |
| Enclosure material | Polycarbonate, aluminum alloy | Polycarbonate, aluminum alloy |
| Mount material | Stainless Steel (SUS304), Galvanized Steel (SGCC) | Stainless Steel (SUS304), Galvanized Steel (SGCC) |
| Color | White or Black | White or Black |
| Hardware | ||
| Coverage Area | 140 m² (1,500 ft²) | 160 m² (1,750 ft²) |
| Networking interface | (1) 1/2.5/5/10 GbE RJ45 port | (1) 1/2.5/5/10 GbE RJ45 port |
| Management interface | Ethernet | Ethernet |
| Power method | PoE+ | PoE++ |
| Power supply | UniFi PoE Switch | UniFi PoE Switch |
| Supported voltage range | 42.5—57V DC | 42.5—57V DC |
| Max. power consumption | 22W | 29W |
| Max. TX power | 2.4 GHz: 23 dBm, 5 GHz: 26 dBm, 6 GHz: 24 dBm | 2.4 GHz: 23 dBm, 5 GHz: 29 dBm, 6 GHz: 24 dBm |
| MIMO | 2 x 2 (DL/UL MU-MIMO) for 2.4 GHz, 5 GHz and 6GHz | 2 x 2 (DL/UL MU-MIMO) for 2.4 GHz, 4 x 4 (DL/UL MU-MIMO) for 5 GHz and 2 x 2 (DL/UL MU-MIMO) for 6GHz |
| Max. data rate | 2.4 GHz: 688 Mbps, 5 GHz: 4.3 Gbps 6 GHz: 5.7 Gbps | 2.4 GHz: 688 Mbps, 5 GHz: 8.6 Gbps 6 GHz: 5.7 Gbps |
| Antenna gain | 2.4 GHz: 4 dBi, 5 GHz: 5 dBi, 6 GHz: 6 dBi(internal) | 2.4 GHz: 4 dBi, 5 GHz: 6 dBi, 6 GHz: 6 dBi(internal) |
| Antennas | Internal Antennas | Internal Antennas |
| LEDs | White/Blue | White/Blue |
| Button | Factory reset | Factory reset |
| Mounting | Wall, ceiling (Included) | Wall, ceiling (Included) |
| Ambient operating temperature | -30 to 40° C (-22 to 104° F) | -30 to 40° C (-22 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC | CE, FCC, IC |
| Software | ||
| WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| BSSID | 8 per radio | 8 per radio |
| VLAN | 802.1Q | 802.1Q |
| Advanced QoS | Per-user rate limiting | Per-user rate limiting |
| Guest traffic isolation | Supported | Supported |
| Concurrent clients | 300+ | 500+ |
| Supported Data Rates | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: 6.5 Mbps to 600 Mbps (MCS0 – MCS32, HT 20/40) 802.11ac: 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11be (WiFi 7): 5GHz: 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 6GHz: 7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| Application Requirements | UniFi Network Version 8.3 and later | UniFi Network Version 8.3 and later |
| Price USD | $199 | $299 |
U7 Pro XG and XGS Build and Design

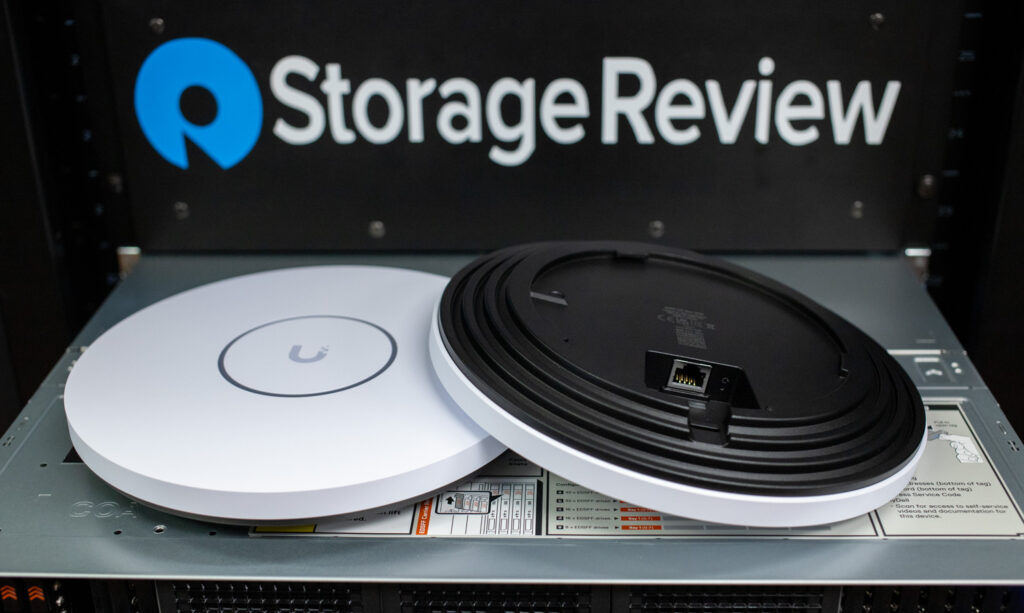

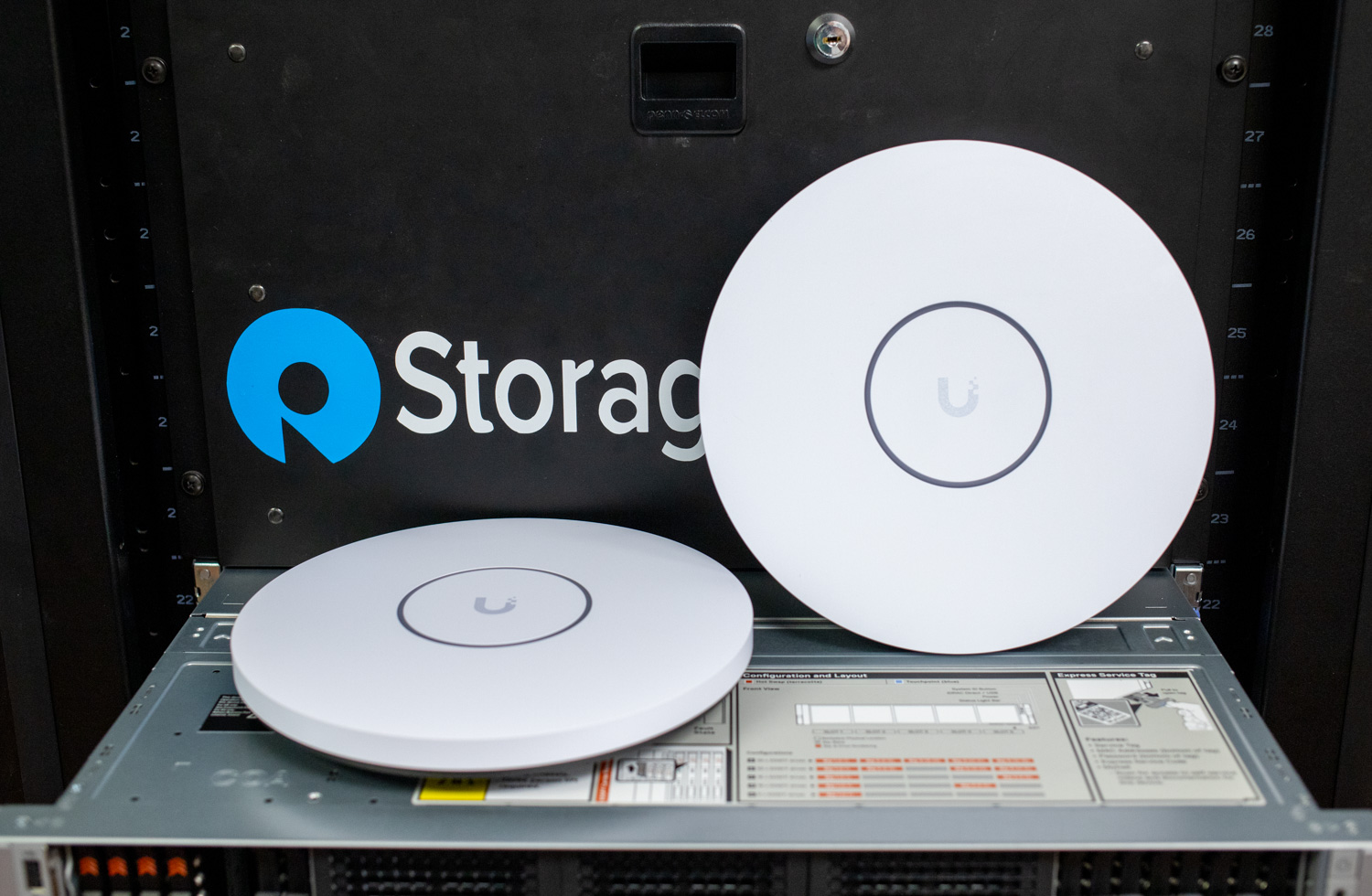

The U7 Pro XG and U7 Pro XGS represent UniFi’s new flagship access points, staying true to the classic UniFi AP aesthetic while introducing a revamped, more refined design. With a thinner and flatter profile than previous models like the U7 Pro and U6 Pro, these APs blend seamlessly into modern environments while maintaining the Ubiquiti signature look. For the first time, these units are offered in two colors: White and Black, providing more flexibility to match various environments and preferences.
The U7 Pro XG measures Ø8.1″ x 1.3″ (206 x 32.5 mm), offering a compact yet high-performance form factor. The U7 Pro XGS, with a slightly larger diameter than the XG at Ø8.5″ x 1.3″ (215 x 32.5 mm), both maintain the same sleek height profile. Both units include a wall and ceiling mount made of stainless steel (SUS304) for durability and secure installation. Everything needed for mounting the unit is included in the box, with a level template to ensure proper alignment during installation, along with all the necessary screws and anchors.

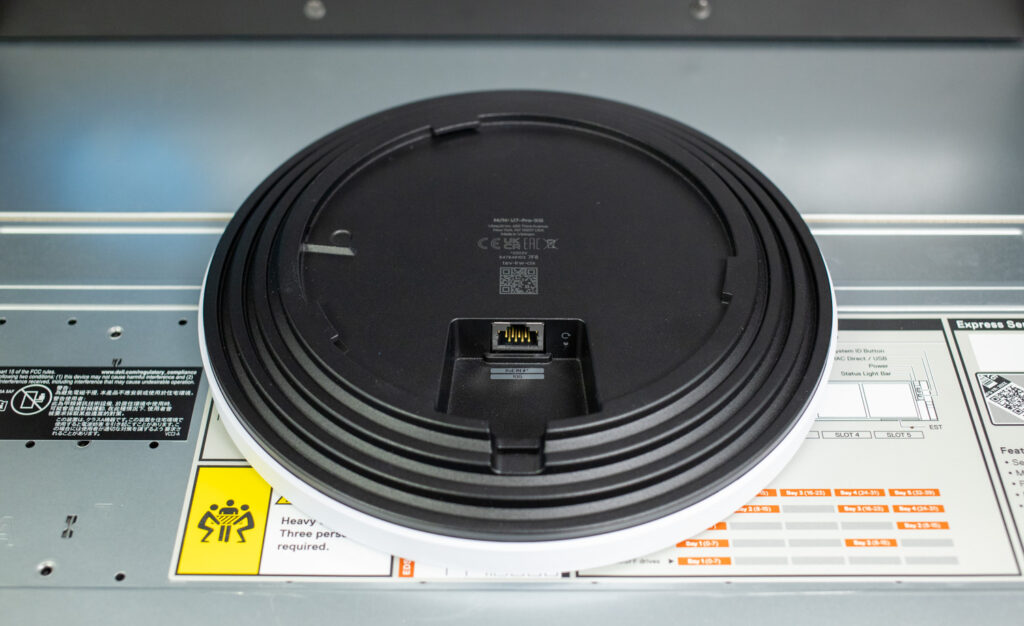

Both units feature a single multi-gigabit Ethernet port supporting 1/2.5/5/10 GbE speeds for network connectivity. Unlike previous models like the U7 Pro, which offered a 2.5 GbE uplink, the U7 Pro XG and U7 Pro XGS come with 10 GbE providing high-speed connectivity typically found in Ubiquiti’s Enterprise E7 and E7 Campus models. However, without the enterprise price. The U7 Pro XG requires PoE+ (22W MAX), while the U7 Pro XGS, with its higher performance demands, requires PoE++ (29W MAX) for full functionality.
These new access points support 2.4 GHz, 5 GHz, and 6 GHz bands, compatible with WiFi standards (802.11a/b/g/n/ac/ax/be, WiFi 6, and WiFi 7). Both models are mesh-enabled, allowing seamless integration into your network for expanded coverage. The U7 Pro XG offers coverage of up to 1,500 ft², while the U7 Pro XGS extends coverage to 1,750 ft², ensuring reliable connectivity across various environments. The U7 Pro XGS features 2 x 2 (DL/UL MU-MIMO) for the 2.4 GHz and 6 GHz bands, along with 4 x 4 (DL/UL MU-MIMO) for the 5 GHz band, delivering enhanced performance for high-density client device environments. Meanwhile, the U7 Pro XG is equipped with 2 x 2 (DL/UL MU-MIMO) across all three bands (2.4 GHz, 5 GHz, and 6 GHz), ensuring consistent throughput and efficiency.
U7 Pro XG Series Overview: UniFi Network
Ubiquiti sent us the U7 XG and U7 XGS for this review, which are connected to our lab Pro Max 48 PoE network. These are managed through the office UDM Pro Max, running UniFi OS version 4.1.13 and Network version 9.0.114 for this review.

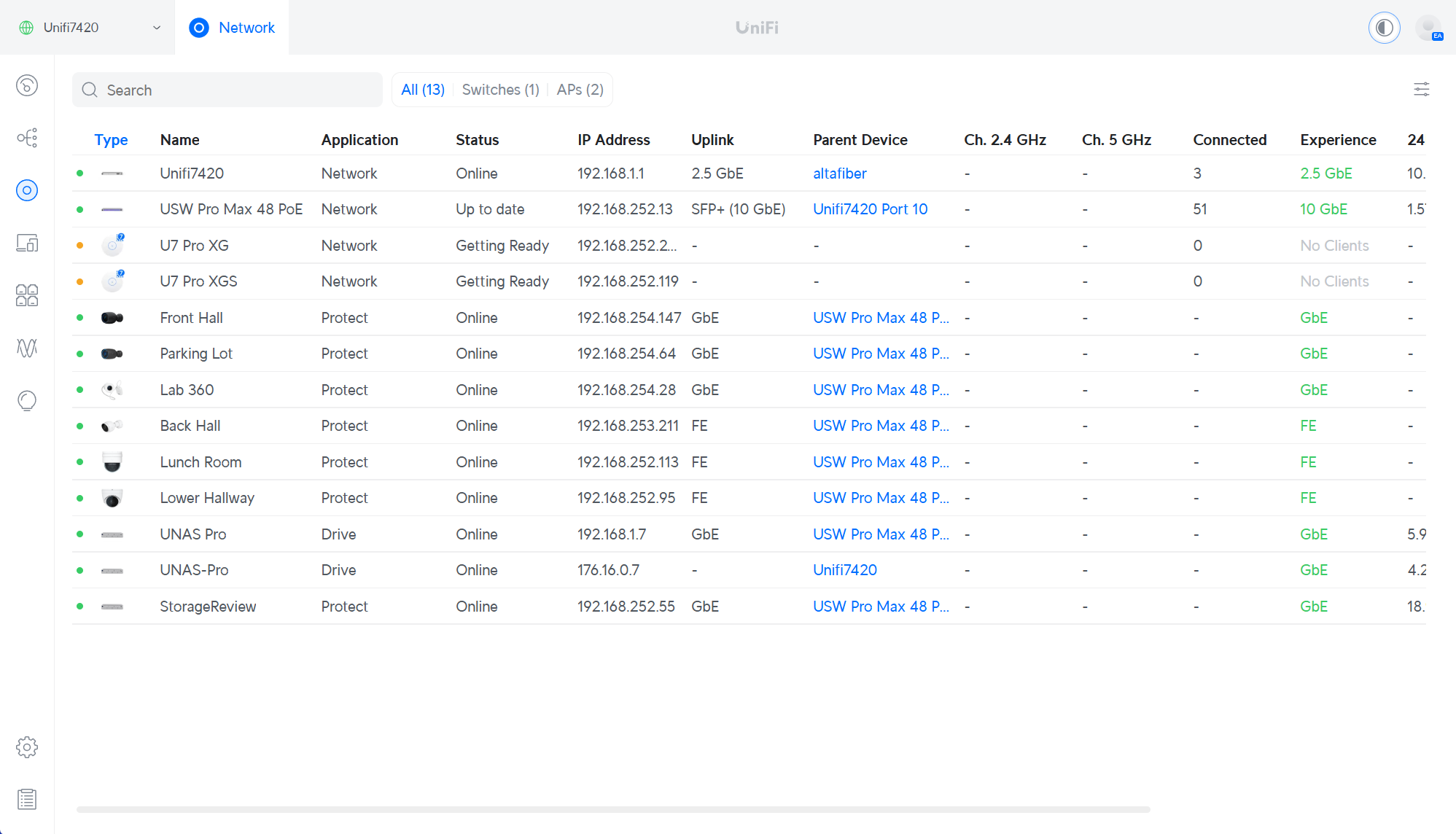

After connecting the devices to our Pro Max PoE switch, we receive an alert in UniFi indicating that the devices are ready to be adopted. By clicking “Adopt,” the devices show as “Getting Ready.” This process typically takes 1-2 minutes. If the devices require updates, they will automatically update and may reboot during this time.

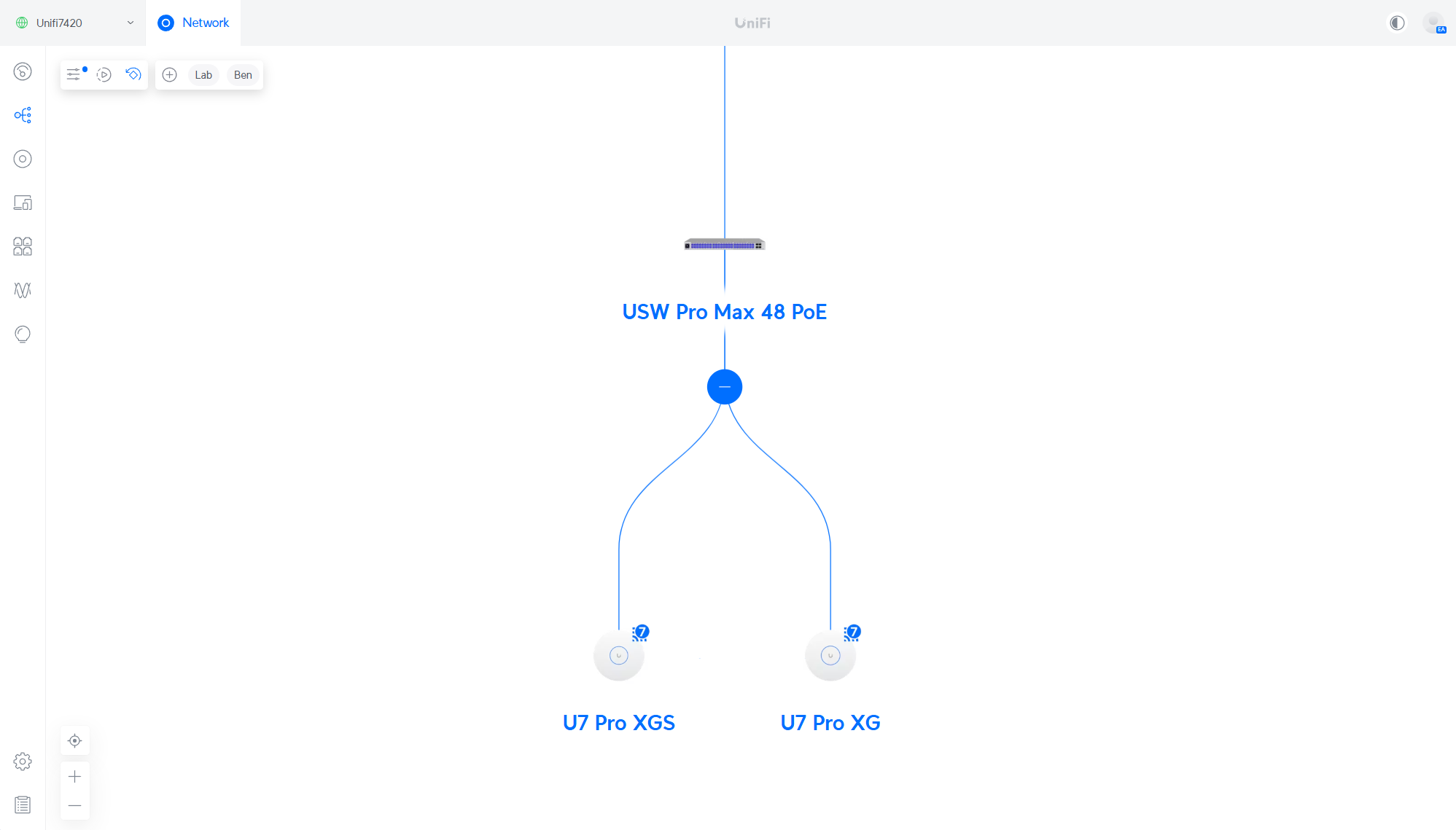

Once onboarded, we can now see our devices in the topology, where they interface with our Pro Max PoE switch. The access points are also labeled with a WiFi 7 badge, indicating their WiFi 7 capabilities, making it easy to identify them.

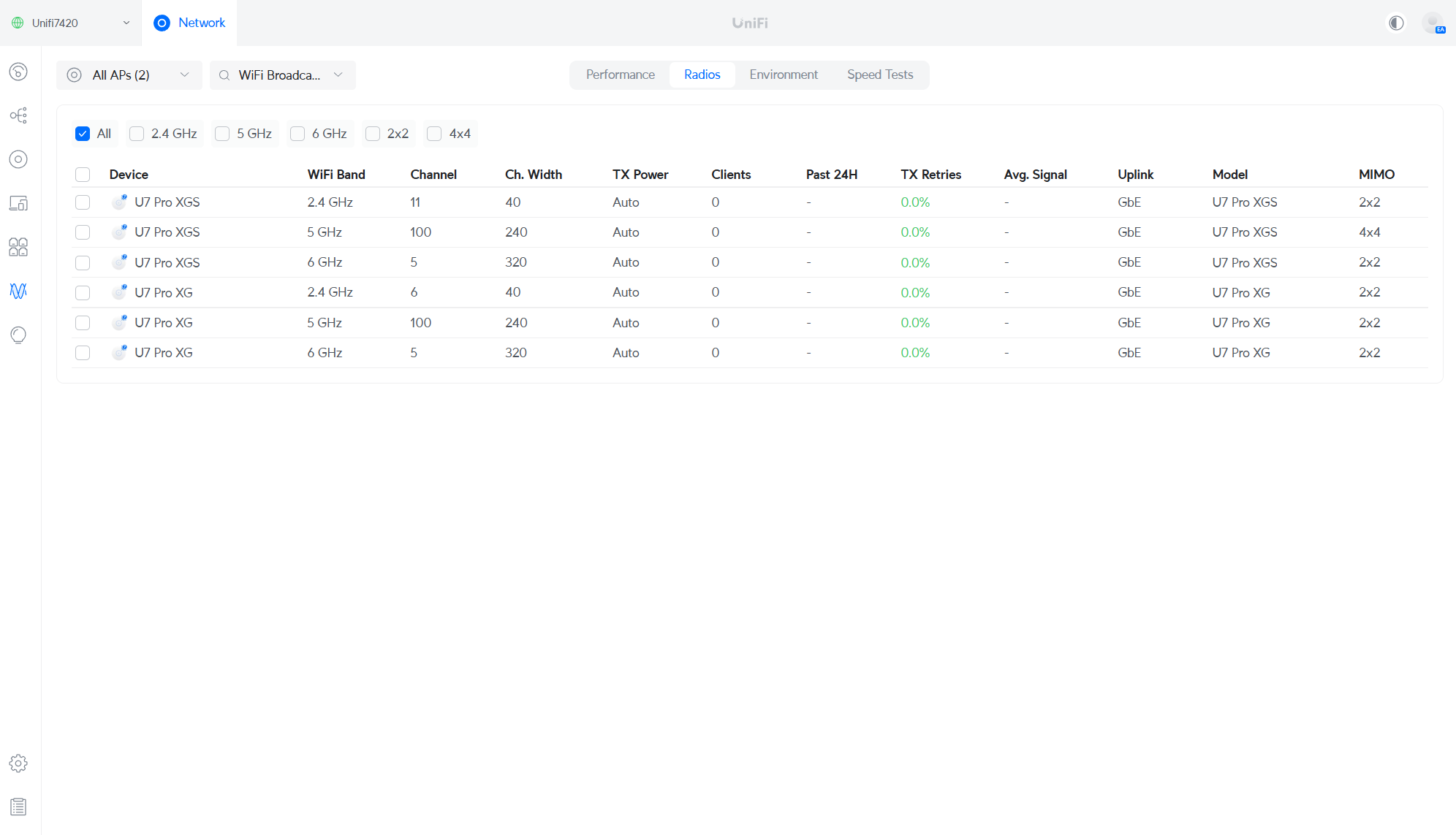

In the Radios > Radios section, when viewing the U7 Pro XG and XGS, the three operating bands supported, 2.4 GHz, 5 GHz, and 6 GHz, along with the current channel width, active clients, and MIMO configuration. The key difference between the XG and XGS is that the XGS features a 4×4 MIMO radio on the 5GHz band, compared to the 2×2 MIMO radio on the XG.
Conclusion
The Ubiquiti U7 Pro XG and U7 Pro XGS are groundbreaking additions to networking, blending cutting-edge technology with sleek, modern design. Their impressive 10GbE uplink capabilities, supporting speeds from 1G to 10G, ensure that users can easily meet the demands of today’s high-speed networks. This flexibility is crucial for adapting to various environments, from home setups to large-scale businesses. Including PoE+ for the U7 Pro XG and PoE++ for the U7 Pro XGS simplifies installation, reducing the need for additional power sources and enhancing efficiency. These devices are built to handle large numbers of devices, with the U7 Pro XG capable of supporting over 300+ devices and the XGS model handling 500+.
The standout feature of these devices is their WiFi 7 support, offering up to 8 streams with the U7 Pro XGS, providing users with enhanced capacity, faster speeds, and better overall performance. The device’s ability to support various connected devices while maintaining top-tier performance makes them ideal for environments with heavy traffic, ensuring smooth and reliable internet access across all connected devices. The U7 Pro XG and U7 Pro XGS represent a significant leap forward in wireless technology, offering unmatched performance, scalability, and design.
U7 Pro XG and U7 Pro XGS Product Pages
